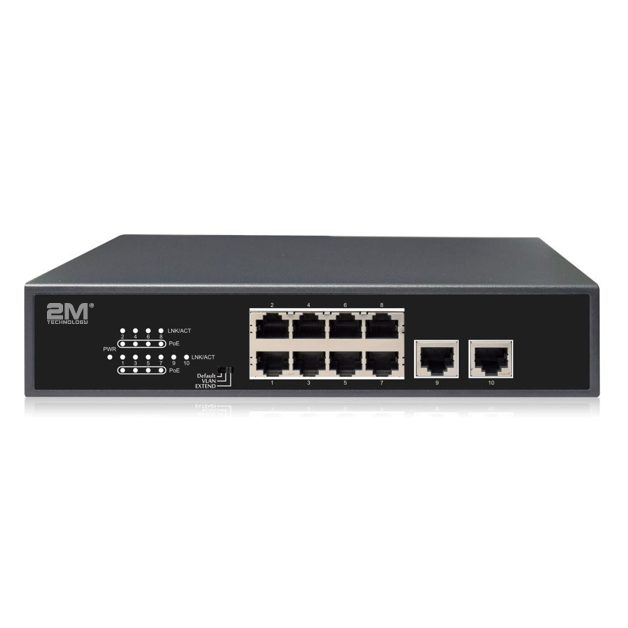

2M-POE-8+ 8 Port PoE Switch

  • Secure mode, all down-link ports can communicate only with up-link ports
  • Up to 250m transmission distance on surveillance mode
  • Support buffer optimization

Product Documents

The 2M-POE-8+ fast uplink Switch which provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to boost your old network to 100Mbps. Increase the speed of your network server and backbone connections,
making Gigabit connection to a server or uplink a network necessarily. Its PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PD).
The electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as AP, IP Cameras or IP Phones, etc.

Features:

  • Multiple working modes to address your business needs:Normal, Secure and Surveillance
  • Supports port traffic control
  • Secure mode, all down-link ports can communicate only with up-link ports
  • Up to 250m transmission distance on surveillance mode
  • Support buffer optimization
  • All metal housing, safe and reliable
SKU: 2M-POE-8+ Categories: , , Tags: , ,
Number of Channels

SPECIFICATIONS
Ports10×100Mbps network ports (RJ45), including 8 PoE ports
StandardsIEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IE EE802.3at
Switching Capacity2Gbps
Forwarding Performance1.49Mpps
Packet Buffer2Mbit
MAC8K
Dimensions (W×D×H)220mm x 150mm x 44mm(8.7″×5.9″×1.7″)
Weight<1.22kg
Power SupplyAC: 100-240V, 50/60Hz
PoE802.3at/af
Max. PoE PowerMax capacity: 120W

Max capacity for single port: 30W

Switch Power122W
Surge ProtectionCommon mode ±6KV Differential mode ±4KV
Electrostatic StandardCommon mode ±6KV Differential mode ±8KV
Cooling Fans0
Mean Time Between Failure(MTBF)>50000 hours
Operating Temperature0°C-40°C (32°F-104°F)
Operating Humidity10%~90% (noncondensing)
Storage Humidity5%~90% (noncondensing)












Indicator

PWR:

Steady on: AC input is normal Off: No AC input

PoE:

Off: No PoE power supply

Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal

LINK/ACT:

Off: No link

Steady: Linked at 10/100Mbps Flashing: Transmitting data

Speed:

Off: Linked at 10/100Mbps On: Linked at 1000Mbps







Working Mode

Default (Normal mode) : All ports can communicate with each other.

VLAN(Secure mode): Downlink ports can communicate only with uplink ports.

EXTEND(Surveillance mode): Transmission distance up to 250 meters ,also downlink ports can communicate only with uplink ports.
