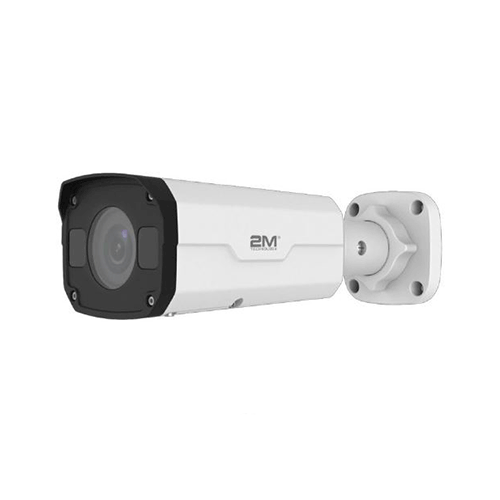

2M Technology 2MBIP-2MIR30Z-E 2MP Motorized Vandal-resistant Network IR Bullet Camera

  • Smart IR
  • 2D/3D DNR
  • Triple Streams Compression
  • ONVIF Conformance
  • IP67
  • IK10 Vandal Resistant
REQUEST DEMO

Note: Due to our continued product research and development, 2mtechnology Inc. reserves the right to amend all the technical specifications without prior notice.

Product Documents

The 2M Technology 2MBIP-2MIR30Z-E Varifocal Vandal-resistant Network IR Bullet Camera comes with a 2MP lens. Additionally, the camera comes with Smart IR technology. This gives it an IR distance out to 30m or 98ft. Futher, the camera includes 2D/3D digital noise reduction for optimal footage quality. The network camera is IP67 rated and follows ONVIF conformance. Moreover, the camera offers triple streams compression and has day/night functionality.



Key Features

Optics

  • Day/night functionality
  • Smart IR , up to 30 m (98 ft) IR distance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265,H.265, H.264, MJPEG
  • Triple streams

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
  • IK10 vandal resistant
  • 3-Axis
Weight2.2 lbs
Resolution

2 Megapixel (1920 x 1080)

Signal Type

Lens

Motorized 2.8-12mm Lens

Series

Essential Series

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Ingress Protection

IP67

Vandal Resistant

IK10

Camera
Sensor 1/2.7″, 2.0 megapixel, progressive scan, CMOS
Lens 2.8~12 mm, manual zoom lens 2.8~12 mm, motorized zoom lens
DORI Distance
Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 42 16.8 8.4 4.2
12mm 180 72 36 18
Angle of View (H) 112.7°~28.1°
Angle of View (V) 60.1°~15.4°
Angle of View (O) 146.5°~33.2°
Adjustment angle Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
Shutter Auto/Manual, 1~1/100000 s
Minimum Illumination
Colour: 0.01 Lux (F1.6, AGC ON)
0 Lux with IR on
Digital noise reduction 2D/3D DNR
Day/Night IR-cut filter with auto switch (ICR)
S/N >52dB
IR Range Up to 30m (98 ft) IR range
WDR DWDR
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate
Main Stream:1080P (1920×1080): Max. 30 fps;
Sub Stream:720P (1280×720): Max. 30 fps;
Third Stream: D1(704×576): Max. 30 fps
HLC Supported
BLC Supported
OSD Up to 4 OSDs
Privacy Mask Up to 8 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
Network
Protocols IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Compatible Integration ONVIF(Profile S, Profile G), API
Interface
Network 1 RJ45 100M Base-TX Ethernet
Edge Storage MicroSD, up to 128GB
General
Power
12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 6.5W
Dimensions (L × W × H) 253.4×86×71.7mm(9.98”×3.4”×2.8”)
Weight 1kg􀋄2.2lb􀋅
2M Technology · 802 Greenview Dr. Suite 100, Grand Prairie, TX 75050, USA · Ph: 972-206-1212 · Fax: 972-999-4113
www.2MTechnology.net
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~90% RH(non-condensing)
Ingress Protection IP67
Vandal Resistant IK10
