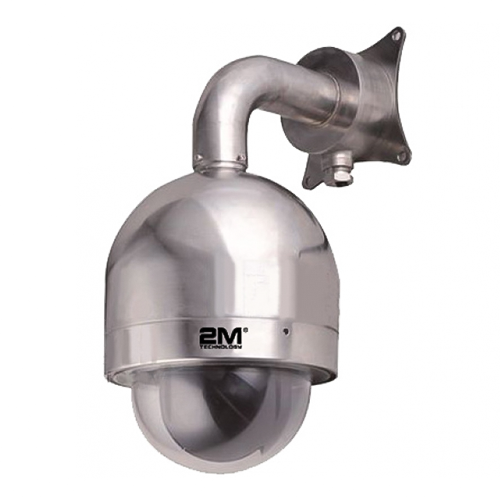

2M Technology 2MEXH-20-L Explosion Proof Dome Camera Housing 316L

Product Documents

Availability:

Out of stock

2MEXH-4219-L: IP-68 explosion proof dome camera housing made with 316L stainless steel.

Features:

  • IP-68, NEMA-4X Enclosure rating
  • Operating temperature range from -25°C to 60°C (-13°F to 140°F)
  • Ex d IIC T6 Gb explosion-proof marking
  • AISI 304/316L stainless steel construction (available)
Stainless Steel Types

Specifications
Atmospheric Pressure80 kPa 106 kPa
Operating Ambient Temp-25°C to 60°C (-13°F to 140°F)
Relative Humidity5 % to 95 % non-condensing

.

Protection ratingEx d IIC T6 Gb Explosin-proof marking IP68, NEMA-4X enclosure rating
Dimensions ( Ø x H )( 204x 446 mm ) (8.03 x 17.56 In )
Internal Usable Size
Window Viewing Area (Ø)
Weight12 Kg (26.25 lb )

.

Material.AISI 304 stainless steel 2MEXH-20

AISI 316L stainless steel 2MEXH-20-L
