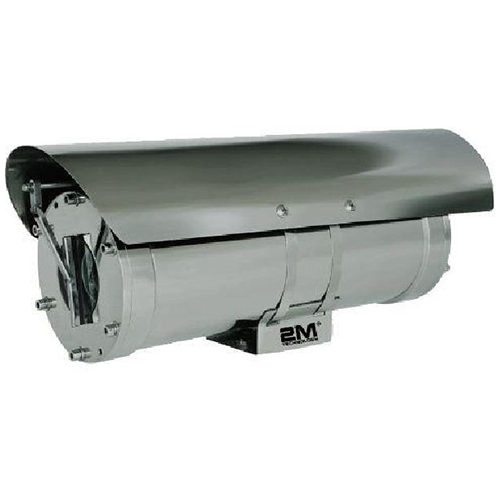

2M Technology 2MEXH-4219WS-L 316L Large Explosion Proof Camera Housing

  • IP-66, NEMA-4X Enclosure rating
  • Operating temperature range from -25°C to 60°C (-13°F to 140°F)
  • Ex d IIC T6 Gb explosion-proof marking
  • AISI 304/316L stainless steel construction (available)
  • Wiper and Sun-shield included
Availability:

Out of stock

2MEXH-4219-L: Large size IP-66 explosion proof camera housing, included wiper and sun shield

Features:

  • IP-66, NEMA-4X Enclosure rating
  • Operating temperature range from -25°C to 60°C (-13°F to 140°F)
  • Ex d IIC T6 Gb explosion-proof marking
  • AISI 304/316L stainless steel construction (available)
  • Wiper and Sun-shield included
Model                             Material
2MEXH-4219WSAISI 304 stainless steel
2MEXH-4219WS-LAISI 316L stainless steel

Matching Accessories:

  • 2MEXB-2915: Explosion Proof Wall Housing Bracket ( 304 )
  • 2MEXPTB-3623: Heavy Explosion Proof Pan and Tilt Unit ( 304 )
  • 2MEXB-2915-L: Explosion Proof Wall Housing Bracket ( 316L )
  • 2MEXPTB-3623-L: Heavy Explosion Proof Pan and Tilt Unit ( 316L )
Stainless Steel Types

Specifications
Atmospheric Pressure80 kPa 106 kPa
Operating Ambient Temp-25°C to 60°C (-13°F to 140°F)
Relative Humidity5 % to 95 % non-condensing

.

Protection ratingEx d IIC T6 Gb Explosion-proof marking IP66, NEMA-4X enclosure rating
Dimensions ( W x H x L )( 420 x 195 x 194 mm ) (16.54 x 7.68 x 7.64 In )
Internal Usable Size ( W x H x L )( 300 x 80 x 80 mm ) (11.81 x 3.15 x 3.15 In )
Window Viewing Area (Ø)
Weight11 Kg (24.25 lb )

.

Material.AISI 304 stainless steel 2MEXH-4219WS

AISI 316L stainless steel 2MEXH-4219WS-L

Heater ControlOn at 1 °C ± 3 °C (34 °F ± 5 °F) (optional)
