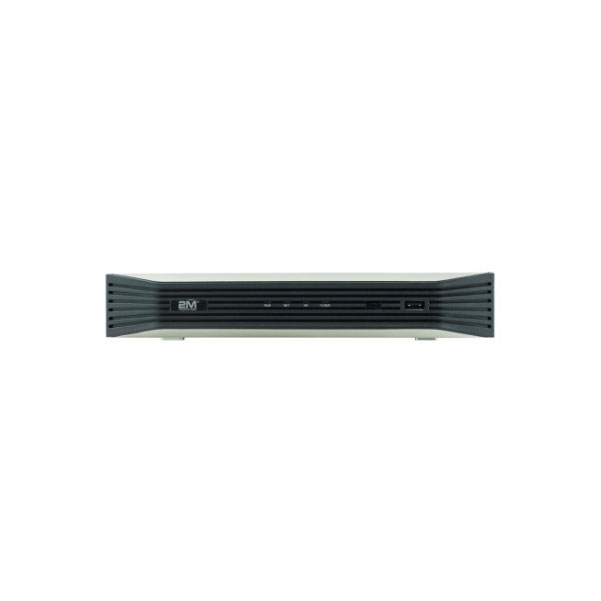

2M Technology 2MN-8004-E 4-CH Network Video Recorder (DISCONTINUED)
- Support Ultra 265/H.265/H.264 video formats
- 4-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S,
- Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
Product Documents
Downloads
2M Technology 4-CH Network Video Recorder Features:
- Support Ultra 265/H.265/H.264 video formats
- 4-channel input
- Third-party IP cameras supported with ONVIF conformance: Profile S,
- Profile G, Profile T
- Support 1-ch HDMI, 1-ch VGA
- HDMI and VGA simultaneous output
- Up to 2MP resolution recording
- 1 SATA HDD up to 10 TB
- Support cloud upgrade
| Weight | 2.05 lbs |
|---|---|
| Signal Type | |
| Number of Channels | |
| PoE Channels | |
| Internal Hard Drives SATA Ports | 1 SATA Hard Drives |
| Series | Essential Series |
| Resolution | 4k – 8 Megapixel (3840 x 2160) |
| VIDEO & AUDIO | |
| IP Video Input | 8-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 60Mbps |
| Outgoing Bandwidth | 64Mbps |
| Remote connection | 128 |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: |
| 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, | |
| 1024×768 /60Hz | |
| VGA: | |
| 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz | |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 8-ch |
| Decoding | |
| Compression | H.265/H.264 |
| Live view/ | |
| Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 4K@30, 3 x 4MP@20, 4 x 1080p@25, 8 x 720p@25, 16 x D1 |
| Hard Disk | |
| SATA | 1 SATA interfaces |
| Capacity | up to 6TB for each disk |
| External Interface | |
| Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface |
| Network Function | HTTP, TCP/IP, IPV4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS,IP Filter, PPPOE, DDNS, FTP, IP Server, P2P |
| USB Interface | Rear panel: 2 x USB2.0,Front panel: 1XUSB2.0 |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| PoE | |
| Interface | 8 independent 100 Mbps PoEnetwork interfaces |
| Supported | |
| Standard | IEEE 802.3at, IEEE 802.3af |
| GENERAL | |
| Power Supply | 52V DC |
| Consumption | |
| ( without HDD ) | ≤ 5 W |
| PoE | Max 30W for single port |
| Max 108W in total ( 13.5W for each ) | |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Dimensions | 260 x 240 x 43 (mm) (10.2″ x 9.4″ x 1.7″) (in) |
