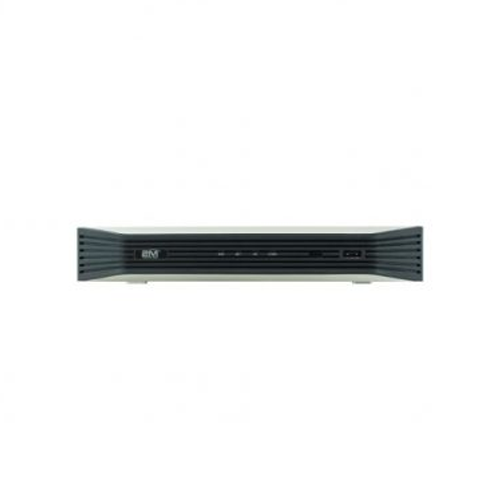

2M Technology 2MN-8832-P 32-CH Network Video Recorder

32 Channel
Ultra 265/ H.265/H.264
HDMI1/VGA and HDMI2 outputs
12MP
Cloud Upgrade
Note: Due to our continued product research and development, 2mtechnology Inc. reserves the right to amend all the technical specifications without prior notice.

Product Documents

The 2M Technology 2MN-8832-P 32-CH Network Video Recorder supports Ultra 265/ H.265/H.264 video formats. Additionally, the NVR has HDMI1/VGA and HDMI2 independent outputs provided. The network recorder can record up to 12 megapixels of resolution. Users can also upgrade their NVR over the cloud for simple and easy maintenance.

Features:

  • Support Ultra 265/H.265/H.264 video formats
  • 32-channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840×2160) resolution
  • HDMI1/VGA and HDMI2 independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Support HDD hot swap with RAID 0, 1, 5, 6, 10,50,60 storage scheme configurable
  • 16 SATA HDDs, up to 10TB for each HDD
  • Various fisheye dewarping modes for live view and playback for both web interface and GUI
  • Support N+1 Hot spare
  • ANR technology to enhance the storage reliability when the network is disconnected
  • Support cloud upgrade
PoE Channels

Signal Type

Number of Channels

Internal Hard Drives SATA Ports

16 SATA Hard Drives

Resolution

4 Megapixel (2592 x 1520)

Series

Professional Series

VIDEO & AUDIO
IP Video Input32-ch
Two-way Audio Input1-ch, RCA
Network
Incoming Bandwidth320Mbps
Outgoing Bandwidth320Mbps
Remote connection128
ProtocolsSNMP,P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output






HDMI/VGA Output

HDMI1/VGA:

1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz,

1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI2:

4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz, 1920x1080p/60Hz,

1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz,

1280×720/60Hz, 1024×768/60Hz

Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Synchronous Playback16-ch
Corridor Mode Screen3/4/5/7/9/10/12/16
Decoding
Decoding formatUltra 265, H.265, H.264
Live view/ Playback12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/960H/D1/2CIF/ CIF
Capability3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x

960P@25, 36 x 720P@30, 64 x D1

Hard Disk
SATA16 SATA interfaces
CapacityUp to 10TB for each HDD
eSATA1 eSATA interface
Smart
VCA DetectionFace detection, Intrusion detection, Cross line detection, Audio detec- tion, Defocus detection, Scene change detection, Auto tracking
VCA SearchFace search, Behavior search
Statistical AnalysisPeople counting
Disk Array
Array TypeRAID 0, 1, 5, 6, 10,50,60
External Interface


Network Interface



2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces



Serial Interface



1 x RS232, 1 x RS485

USB InterfaceRear panel: 2 x USB2.0,Front panel: 1XUSB2.0
Alarm In16-ch
Alarm Out10-ch
GENERAL
Power Supply100~240 VAC

Power Consumption: ≤ 23 W(without HDD)



Working Environment

-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH

(non-condensing)



Dimensions



260 x 240 x 43 (mm) (10.2″ x 9.4″ x 1.7″) (in)
