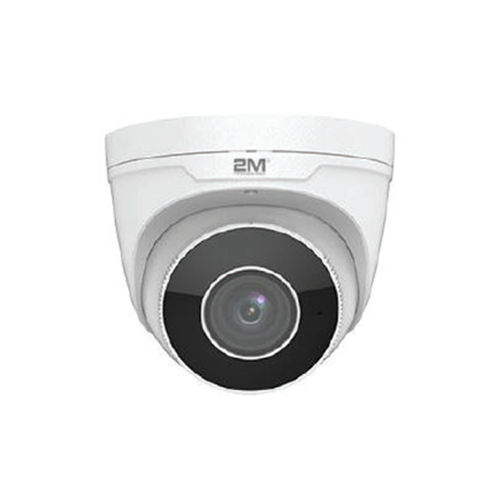

2M Technology 2MTIP-2MIR30ZUA-P 2MP Motorized Eyeball Network IR Camera (DISCONTINUED)
Sensor: 1/2.8?, 2.0MP CMOS Sensor
Shutter: Auto/Manual, 1~1/100000 s
Pan Tilt Zoom Angle: Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Dimensions: 5.08 × 4.3 in
Product Documents
The Motorized Eyeball Network IR Camera is feature rich surveillance camera. In addition to the products 2D/3D DNR (Digital Noise Reduction) efficiency, the camera also offers Smart IR illumination in up to 98 feet IR distance. The day/night feature gives the Eyeball Camera the ability to shoot in total darkness as well as daylight. In addition, it is fixed with an advanced PTZ (Pan Tilt Zoom) varifocal lens capability to increase the users experience with the device.
Key Features
Optics
Day/night functionality
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
Smart IR, up to 30m (98ft) IR distance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265, H.264, MJPEG
Embedded smart algorithm
Triple streams
9:16 corridor mode
Network
ONVIF Conformance
Structure
Support PoE power supply
Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
Wide voltage range of ±25%
IP67
3-Axis
| Weight | 1.48 lbs |
|---|---|
| Series | Professional Series |
| Resolution | 2 Megapixel (1920 x 1080) |
| Signal Type | |
| Lens | Motorized 2.8-12mm Lens |
| Night Vision Distance | 30 Meters (100 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Features | Ultra WDR 120DB, Audio Input |
| Behavior Detection | |
| Edge Storage | |
| Ingress Protection | IP67 |
| Camera | |||||||
| Sensor | 1/2.8″, 2.0 megapixel, progressive scan, CMOS | ||||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | ||||||
|
DORI Distance |
Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
| 2.8 | 45 | 18 | 9 | 4.5 | |||
| 12 | 192.9 | 77.1 | 38.6 | 19.3 | |||
| Angle of view (H) | 94.0° ~ 28° | ||||||
| Angle of View (V) | 56.7° ~ 14.4° | ||||||
| Angle of View (O) | 122.2° ~ 34.4° | ||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
|
Minimum Illumination |
Colour: 0.001Lux (F1.6, AGC ON)
0Lux with IR |
||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >52dB | ||||||
| IR Range | Up to 30m (98ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265, H.264, MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
|
Frame Rate |
Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| 9:16 Corridor Mode | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Smart | |
| Behavior Detection | Intrusion, cross line, motion detection |
| Intrusion | Enter and loiter in a pre-defined virtual region |
| cross line | Cross a pre-defined virtual line |
| motion detection | Moving within a pre-defined virtual region |
| Recognition | Face detection, Audio detection |
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving |
| Statistical Analysis | People counting |
|
General Function |
Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR |
| Network | |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Interface | |
| Built-in Mic | Supported |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 8.16W | |
| Dimensions (Ø x H) | Φ129 x 110mm (Ø5.08” x 4.3”) |
| Weight | 0.67kg (1.48lb) |
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Ingress Protection | IP67 |
| Reset Button | Supported |
