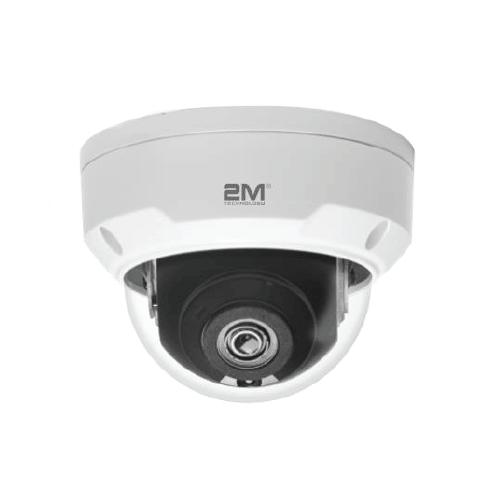

2M Technology 2MVIP-2MIR30-E 2MP Fixed Vandal Dome IP Camera

REQUEST DEMO
  • SmartIR, up to 30 m (98 ft) IR distance
  • 2D/3D DNR (Digital Noise Reduction)
  • Ultra 265,H.265, H.264, MJPEG
  • Triple streams
  • ROI (Region of Interest)
  • ONVIF Conformance
  • IK10 vandal resistant
  • IP66

Product Documents

Key Features

Optics

  • Day/night functionality
  • SmartIR, up to 30 m (98 ft) IR distance
  • Car-grade LEDs, brighter and uniform light compensation
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265,H.265, H.264, MJPEG
  • Triple streams
  • ROI (Region of Interest)

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
  • Wide input voltage range of ±25%
  • 2-Axis
  • IK10 vandal resistant
  • IP66

Dimensions 4.28 × 4.28 × 81 in
Series

Essential Series

Signal Type

Resolution

2 Megapixel (1920 x 1080)

Lens

Fixed 2.8mm Lens

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Ingress Protection

IP66

Vandal Resistant

IK10

Camera
Sensor 1/2.7″, 2.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F2.0 4.0mm@F2.0
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 46.7 18.7 9.3 4.7
4.0 66.7 26.7 13.3 6.7
Angle of View (H) 112.7° 86.5°
Angle of View (V) 60.1° 44.1°
Angle of View (O) 146.5° 106.4°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 75°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.02Lux ( F2.0, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98ft) IR range
WDR DWDR
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream: 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: CIF (352*288), Max 30fps
HLC Supported
BLC Supported
OSD Up to 4 OSDs
Privacy Mask Up to 8 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, Motion detection,Tampering alarm
Intrusion Enter and loiter in a pre-defined virtual region
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration ONVIF (Profile S, Profile T), API
Interface
Network 10/100M Base-TX Ethernet
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.5W
Dimensions (Ø x H) Φ109 x 81mm (Ø4.3” x 3.2”)
Weight 0.45kg (0.99lb)
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
Vandal Resistant IK10
