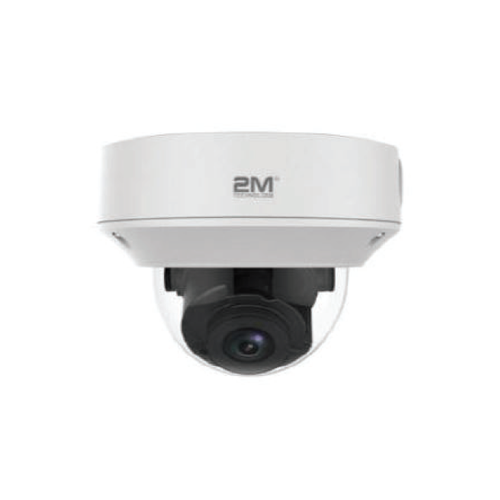

2M Technology 2MVIP-2MIR30ZUA-P 2MP Motorized IR & Vandal-resistant IP Dome Camera

  • Sensor: 1/2.8?, 2.0MP CMOS Sensor
  • Motorized Zoom
  • Pan Tilt Zoom Angle: Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
  • IP Rating: IP67
  • WDR: 120dB WDR

Note: Due to our continued product research and development, 2mtechnology Inc. reserves the right to amend all the technical specifications without prior notice.

Product Documents

The Motorized IR and Vandal-resistant IP Dome Camera has a built in PoE splitter that outputs DC 12V. The product is 2 megapixels with motorized lenses to capture up to 120dB Optical WDR (Wide Dynamic Range). In addition to these features, the camera comes with ONVIF conformance and day/night functionality. Lastly, the dome camera includes vandal proof casing as well as 2D/3D DNR (Digital Noise Reduction).



Key Features

Optics

  • Day/night functionality
  • Smart IR, up to 30m (98ft) IR distance
  • Up to 120dB Optical WDR (Wide Dynamic Range)
  • Lowlight surveillance
  • 2D/3D DNR (Digital Noise Reduction)
  • Built-in motorized lens for remote zoom

Compression

  • Ultra 265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • ROI (Region of Interest)
  • 9:16 corridor mode

Network

  • ONVIF Conformance

Structure

  • Support PoE power supply
  • Built-in PoE splitter that outputs DC 12V
  • Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
  • Wide voltage range of ±25%
  • IK10 vandal resistant
  • IP67
  • 3-Axis
Weight 2 lbs
Series

Professional Series

Resolution

2 Megapixel (1920 x 1080)

Signal Type

Lens

Motorized 2.8-12mm Lens

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Features

Ultra WDR 120DB, Audio Input

Audio Compression

Vandal Resistant

IK10

Behavior Detection

, ,

Edge Storage

,

Alarm I/O

Ingress Protection

IP67

Camera
Sensor 1/2.8″, 2.0 megapixel, progressive scan, CMOS
Lens 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 43.4 17.4 8.7 4.3
12 186.2 74.5 37.2 18.6
Angle of View (H) 94.0° ~ 28°
Angle of View (V) 56.7° ~ 14.4°
Angle of View (O) 122.2° ~ 34.4°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Color: 0.001Lux (F1.6, AGC ON)
0Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
HLC Supported
BLC Supported
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/O Audio cable
Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output 1 BNC, impedance 75Ω; amplitude 1V [p-p]
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7.2W
Dimensions (Ø x H) Φ148 x 111.3mm (Ø5.8” x 4.4”)
Weight 0.92kg (2.0lb)
Working Environment -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
Vandal Resistant IK10
Reset Button Supported
