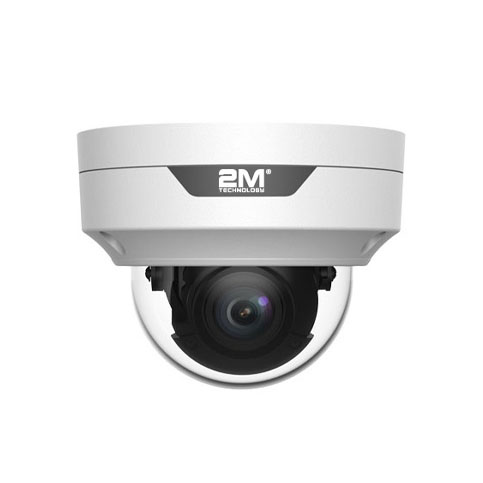

2MVIP-4MIR30Z-GS 4MP Network Vandal Dome Camera with Motorized Lens

REQUEST DEMO
  • Day/night functionality
  • Smart IR , up to 30 m (98 ft) IR distance
  • Ultra 265,H.265, H.264, MJPEG
  • Triple streams
  • ONVIF Conformance
  • IK10 vandal resistant
  • IP67

Product Documents

Key Features
Optics

  • Day/night functionality
  • Smart IR , up to 30 m (98 ft) IR distance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265,H.265, H.264, MJPEG
  • Triple streams

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -40°C to 60°C (-40°F to 140°F)
  • Wide voltage range of ±25%
  • IK10 vandal resistant
  • IP67
  • NDAA Approved
Weight 1.7 lbs
Resolution

4 Megapixel (2592 x 1520)

Signal Type

Lens

Motorized 2.8-12mm Lens

Series

Essential Series

Features

D-WDR, Motion Detection, Privacy Mask, Region of Interest ROI

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Ingress Protection

IP67

Camera
Sensor 1/3″, 4.0 megapixel, progressive scan, CMOS
Lens 2.8~12 mm, manual zoom lens




DORI Distance

Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 63 25.2 12.6 6.3
12mm 270 108 54 27
Angle of View (H) 91.0°~27°
Angle of View (V) 54.4°~13.7°
Angle of View (O) 118.3°~33.2°
Adjustment angle Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
Shutter Auto/Manual, 1/6~1/100000 s


Minimum Illumination

Color: 0.02Lux (F1.6 AGC ON)

0 Lux with IR

Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR DWDR
Video
Video Compression Ultra 265,H.265, H.264,MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile


Frame Rate

Main Stream:4MP (2048*1520): Max. 20fps; Sub Stream: 720P (1280*720): Max. 30 fps;

Third Stream: D1 (704×576): Max. 30fps

HLC Supported
BLC Supported
OSD Up to 4 OSDs
Privacy Mask Up to 8 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,SNMP
Compatible Integration ONVIF(Profile S), API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General


Power

DC12V±25%, PoE (IEEE802.3 af)
Power consumption: Max 7.8W
Dimensions (Ø x H) (1148 x 111.3 mm (Ø5.8″ x 4.4″)
Weight 0.75 kg (1.7 lb)
Working Environment -40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~ 95% RH(non-condensing)





Ingress Protection IP67
Vandal Resistant IK10
Reset Button Supported
