Laser Perimeter Detectors, Perimeter Security

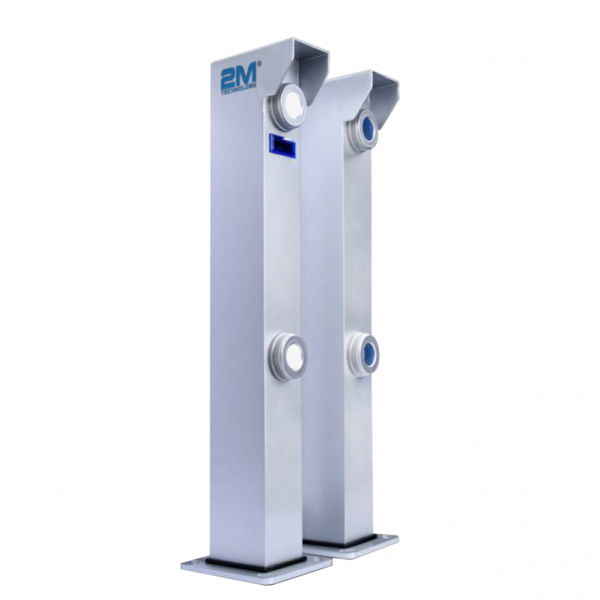

2M2PLD 2x Laser Beam Intrusion Detector
REQUEST QUOTE
- 2x laser Detectors
- 19.5″ in. tall
- Laser wave length: 650nm, 808nm, 980nm
- Guard distance 0 ~ 500m/1640.42ft
- Response time 5ms-500ms (five gears adjustable)
- Laser light source: Type A/Class Ⅰ
Product Documents
Downloads
2M2PLD 2x Laser Beam Intrusion Detector
Features:
- 2x laser Detectors
- 19.6″ in. tall
- Laser wave length: 650nm, 808nm, 980nm
- Guard distance 0 ~ 500m/1640.42ft
- Working voltage DC10-30V or AC220V (customized)
- Product size (LxWxH) 60 x 80 x 496 (mm)/2.4” x 3.1” x 19.6” (in.)
- Alarm time 2s ± 1s (1-30s optional)
- Response time 5ms-500ms (five gears adjustable)
- Working environment -40°C to 70°C
- Protection class IP67
- Laser light source: Type A/Class Ⅰ
Detection Ranges Available:
| Model Number | Detection Range |
| 2M2PLD-100 | 100m/ 328ft |
| 2M2PLD-300 | 300m/1146ft |
| 2M2PLD-500 | 500m/1911ft |
| Weight | 9.87 lbs |
|---|---|
| Dimensions | 2.4 × 3.1 × 19.6 in |
| Detector Height | 19-20 inches |
| Materials |
| Model | 2M2PLD-100 | 2M2PLD-300 | 2M2PLD-500 |
| Laser Wave Length | 650nm | 808nm | 980nm |
| Detect Range | 100m/ 328ft | 300m/ 1146ft | 500m/ 1911ft |
| Guard Distance | 0 – 500m / 0 – 1640ft | ||
| Working Voltage | DC10-30V or AC220V (customized) | ||
|
Product Size |
60mm (L) x 80mm (W) x 496mm (H) 2.36″in (L) x 3.14″in (W) x 19.6″in (H) | ||
| Alarm Time | 2s ± 1s (1-30s optional) | ||
| Response Time | 5ms-500ms (five gears adjustable) | ||
| Working Environment Temperature | -40 to 70 °C / -40 to 158 °F | ||
| Protection Class | IP67 | ||
| Laser Light Source Type | A safety laser light source, class I | ||
| MTBF | 120,000H | ||
| Material | Aluminum alloy | ||
| Product Weight | 4.48kg / 9.87lbs | ||
| Alarm Mode | Double beam blocking alarm | ||
| Alert Level | Double-Layer alert | ||
