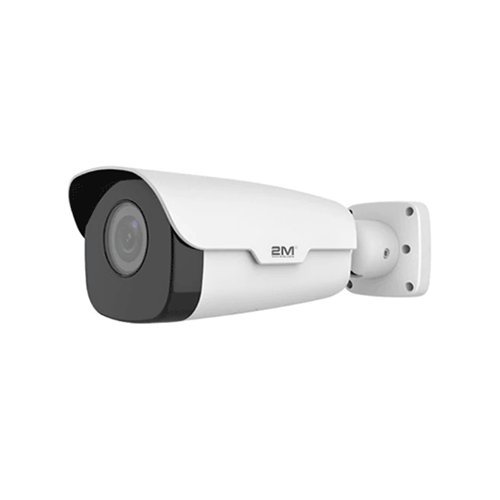

2M Technology 2MBIP-2MIR10010XUASL-C 2MP WDR Starlight AF Network IR Bullet Camera

  • Starlight illumination
  • Up to 120 dB WDR (Wide Dynamic Range) Smart IR, up to up to 100m (328 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Day/night functionality

Product Documents

Optics

  • Starlight illumination
  • Up to 120 dB WDR (Wide Dynamic Range) Smart IR, up to up to 100m (328 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Day/night functionality

Compression

  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • ROI (Region of Interest) 9:16 corridor mode
  • Customized OSD

Network

  • ONVIF Conformance

Structure

  • Support PoE power supply
  • Wide temperature range: -40°C to 60°C (-40°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
Weight3.6 lbs
Series

Corporate Series

Resolution

2 Megapixel (1920 x 1080)

Signal Type

Night Vision Distance

100 Meters (320 feet)

Lens

10x Optical Zoom Lens

Night Vision Type

Infra Red (IR) LED

Features

Ultra WDR 120DB, Starlight, Audio Input

Audio Compression

Alarm I/O

Edge Storage

,

Ingress Protection

IP67

Behavior Detection

, ,

Camera
Sensor1/2.8″, 2.0 megapixel, progressive scan, CMOS
Lens4.7 ~ 47mm; P-Iris, AF automatic focusing and motorized zoom lens
Optical Zoom10
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
4.772.929.214.67.3
47729.3291.7145.972.9
Angle of View (H)65° ~ 9°
Angle of View (V)36.9° ~ 3.8°
Angle of View (O)80° ~ 10.6°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 90°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.001Lux (F1.6, AGC ON)
0Lux with IR
IrisAuto/Manual, F1.6 ~ F3.0, DC-Iris
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeSmart-IR, up to 100m (328ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
9:16 Corridor ModeSupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
Two-way audioSupported
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, Up to 256GB
·         Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/OAudio cable
1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O2/1
Serial Port1 RS485
Network1 RJ45 10M/100M Base-TX Ethernet
Video Output1 BNC, impedance 75Ω; amplitude 1V [p-p]
General
PowerDC 12V±25%, AC 24V±25% ,PoE (IEEE 802.3at)
Power consumption: 13.7W
Dimensions (L × W × H)305.5 × 104.1 × 97.3mm (12.0” × 4.1” × 3.8”)
Weight1.65kg (3.6lb)
Working Environment-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67
Reset ButtonSupported
