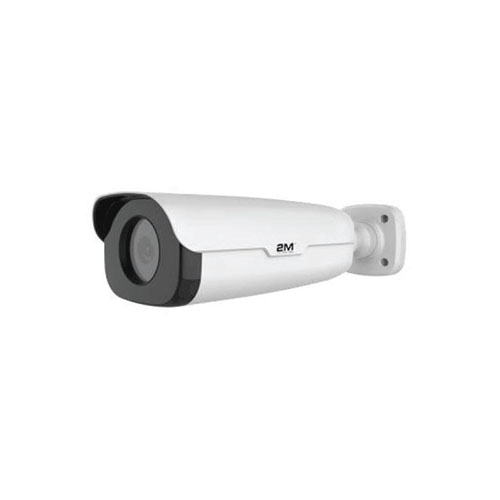

2MBIP-2MIR20022XUASL-C 2MP 22x Starlight WDR Network IR Bullet Camera
Product Documents
Optics
- Starlight illumination
- Accurate and fast focusing
- Smart IR, up to 200m (656ft) IR distanceWhite light Open while PIR alarm
Received to express alarm and ensure colorful surveillance - Up to 120dB WDR (Wide Dynamic Range)
- Auto day/night functionality
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
Compression
- Ultra 265,H.265, H.264, MJPEG
- ROI (Region of Interest)
- Triple streams
- 9:16 corridor mode
- Customized OSD
Network
• ONVIF Conformance
Structure
- Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
Weight | 8.2 lbs |
---|---|
Series | Corporate Series |
Resolution | 2 Megapixel (1920 x 1080) |
Signal Type | |
Lens | 22x Optical Zoom Lens |
Night Vision Distance | 200 Meters (650 feet) |
Night Vision Type | Infra Red (IR) LED |
Features | Starlight, Motion Detection, Privacy Mask, Audio Input, 2 Way Audio |
Dimensions | 396.5 ? 137 ? 112mm (15.6? ?5.4? ?4.4?) |
Operating Temperature | 40?C ~ 60?C (-40?F ~ 140?F) |
Operating Humidity | ?95% RH (non-condensing) |
Ingress Protection | IP67 |
Audio Compression | |
Alarm I/O | |
Edge Storage | |
Behavior Detection | |
Vandal Resistant | IK10 |
Ingress Protection | IP67 |
Country of Origin | China |
Camera | |||||||
Sensor | 1/1.8″, 2.0 megapixel, progressive scan, CMOS | ||||||
Lens | 6.5 ~ 143mm, AF automatic focusing and motorized zoom lens | ||||||
Optical Zoom | 22 | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | ||
6.5 | 78 | 31.2 | 15.6 | 7.8 | |||
143 | 1716 | 686.4 | 343.2 | 171.6 | |||
Angle of view (H) | 59° ~ 3° | ||||||
Angle of View (V) | 34.6° ~ 1.6° | ||||||
Angle of View (O) | 72.6° ~ 3.6° | ||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||
Minimum Illumination |
Colour: 0.0005Lux (F1.5, AGC ON) 0Lux with IR |
||||||
Iris | Auto/Manual, F1.5 ~ F3.4, DC-Iris | ||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||
Digital noise reduction | 2D/3D DNR | ||||||
S/N | >52dB | ||||||
IR Range | up to 200m (656ft) IR range | ||||||
Defog | Digital Defog | ||||||
WDR | 120dB | ||||||
Video | |||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
Frame Rate | Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps |
||||||
9:16 Corridor Mode | Supported | ||||||
ROI | Supported | ||||||
HLC | Supported | ||||||
BLC | Supported | ||||||
OSD | Up to 8 OSDs | ||||||
Motion Detection | Up to 4 areas | ||||||
Privacy Mask | Up to 8 areas | ||||||
Smart | |||||||
General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||
Audio | |||||||
Audio Compression | G.711 | ||||||
Two-way audio | Supported | ||||||
Suppression | Supported | ||||||
Sampling Rate | 8KHZ | ||||||
Storage | |||||||
Edge Storage | Micro SD, up to 256GB | ||||||
Network Storage | ANR | ||||||
Network | |||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||
Interface | |||||||
Audio I/O | Audio cable | ||||||
1 Input: impedance 35kΩ; amplitude 2V [p-p] | |||||||
1 Output: impedance 600Ω; amplitude 2V [p-p] | |||||||
Alarm I/O | 2/1 | ||||||
Serial Port | 1 RS485 | ||||||
Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] | ||||||
General | |||||||
Power | AC 24V±25%, -P: PoE (IEEE 802.3at) | ||||||
Power consumption: Max 21W | |||||||
Dimensions (L × W × H) | 396.5 × 137 × 112mm (15.6” ×5.4” ×4.4”) | ||||||
Weight | 3.7kg (8.2lb) | ||||||
Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||
Ingress Protection | IP67 | ||||||
Reset Button | Supported |
