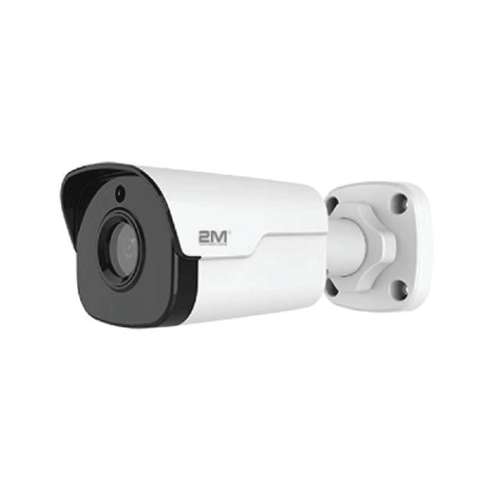

2MBIP-2MIR30-P 2MP Fixed Bullet Network Camera (DISCONTINUED)
- Day/night functionality
- Smart IR , up to 30 m (98 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Product Documents
Optics
- Day/night functionality
- Smart IR , up to 30 m (98 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- 9:16 corridor format
Network
- ONVIF Conformance
Structure
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- IP67
- IK10 vandal resistant
- 3-Axis
| Weight | 0.99 lbs |
|---|---|
| Series | Professional Series |
| Resolution | 2 Megapixel (1920 x 1080) |
| Signal Type | |
| Night Vision Distance | 30 Meters (100 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Lens | Fixed 2.8mm Lens |
| Features | Audio Input |
| Ingress Protection | IP66 |
| Sensor | 1/2.7″, progressive scan, 2.0 megapixel, CMOS | |||||||
| Lens | 4.0mm@ F1.6 | 6.0mm@ F1.6 | ||||||
|
DORI Distance |
Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
| 4mm | 60 | 24 | 12 | 6 | ||||
| 6mm | 90 | 36 | 18 | 9 | ||||
| Angle of View(H) | 80.8° | 54.9° | ||||||
| Angle of View (V) | 44.1° | 30.2° | ||||||
| Angle of View (O) | 99.4° | 67.5° | ||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | |||||
| Shutter | Auto/Manual, 1~1/100000 s | |||||||
|
Minimum Illumination |
Colour: 0.005 Lux (F1.6, AGC ON)
0 Lux with IR on |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | >52dB | |||||||
| IR Range | Up to 30m (98 ft) IR range | |||||||
| Defog | Digital Defog | |||||||
| WDR | DWDR | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
|
Frame Rate |
Main Stream: 2MP(1920×1080) Max. 30fps; Sub Stream: 2MP(1920×1080) Max. 30fps; Third Stream: D1(720×576) Max. 30fps | |||||||
| 9:16 Corridor Mode | Supported | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas |
| Smart | |
| Behavior Detection | Intrusion, cross line, motion detection |
| Intrusion | Enter and loiter in a pre-defined virtual region |
| cross line | Cross a pre-defined virtual line |
| motion detection | Moving within a pre-defined virtual region |
| Recognition | Face detection |
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Network | |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S), API |
| Interface | |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
|
Power |
12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 6.4 W | |
| Dimensions (L × W × H) | 157.3 ×63 ×62.4mm (6.2” × 2.5” × 2.5”) |
| Weight | 0.45 kg (0.99 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~95% RH(non-condensing) |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Reset Button | Supported |
