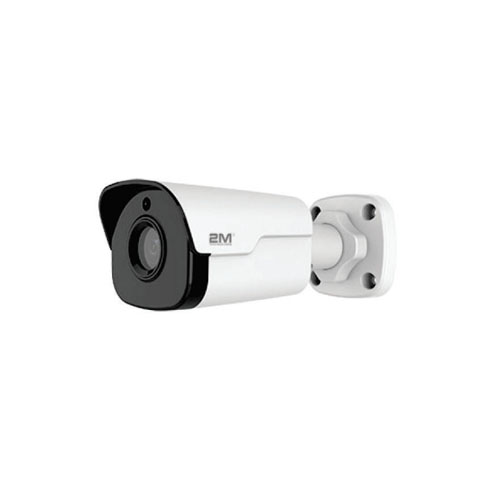

2MBIP-2MIR30-P 2MP Mini Fixed Bullet Network Camera

REQUEST DEMO
  • Smart IR , up to 30 m (98 ft) IR distance
  • Ultra 265, H.265, H.264, MJPEG
  • ONVIF Conformance
  • IP67

Product Documents

The 2MP Mini Fixed Bullet Network Camera comes with many advanced features packaged in a smaller sized device. For example, the camera offers an IR anti-reflection window to increase the infrared transmittance. This reduces any possibility of a sun glare when shooting during the daytime. In addition, the product includes “Smart IR” illumination and 2D/3D DNR (Digital Noise Reduction) to optimize the user’s experience when using the camera. Lastly, the Mini camera is fixed with an advanced PTZ varifocal lens capability of 2.8 -4.0mm.

Key Features

Optics

  • Day/night functionality
  • Smart IR , up to 30 m (98 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265, H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 9:16 corridor format

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
Weight 0.99 lbs
Series

Professional Series

Resolution

2 Megapixel (1920 x 1080)

Signal Type

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Lens

Fixed 2.8mm Lens

Features

Audio Input

Alarm I/O

Behavior Detection

, ,

Ingress Protection

IP67

Camera
Sensor 1/2.7″, progressive scan,2.0 megapixel, CMOS
Lens 4.0mm@ F1.8 6.0mm@ F1.8




DORI Distance

Lens Detect(m) Observe(m) Recognize(m) Identify(m)
4mm 60 24 12 6
6mm 90 36 18 9
Angle of View(H) 86.5° 55.4°
Angle of View (V) 44.1° 30.2°
Angle of View (O) 106.4° 68.1°
Adjustment angle Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
Shutter Auto/Manual, 1/6~1/100000 s


Minimum Illumination

Color: 0.005 Lux (F1.8, AGC ON)

0 Lux with IR on

Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR DWDR
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile


Frame Rate

Main Stream:2MP (1920×1080): Max. 30 fps; Sub Stream: 2MP (1920×1080): Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
Cross Line Cross a pre-defined virtual line
Motion Detection Moving within a pre-defined virtual region
Recognition Face detection, Audio detection
Intelligent Identification Defocus, Scene Change
Statistical Analysis People counting


General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication





Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8 KHZ
Network


Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration ONVIF(Profile S), API
Interface
Alarm I/O 1/ 1
Built-in Mic Supported
Network 1 RJ45 10M/100M Base-TX Ethernet
General


Power

12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 6.4 W
Dimensions (L × W × H) 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight 0.45 kg (0.99 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Ingress Protection IP67
Reset Button Supported
