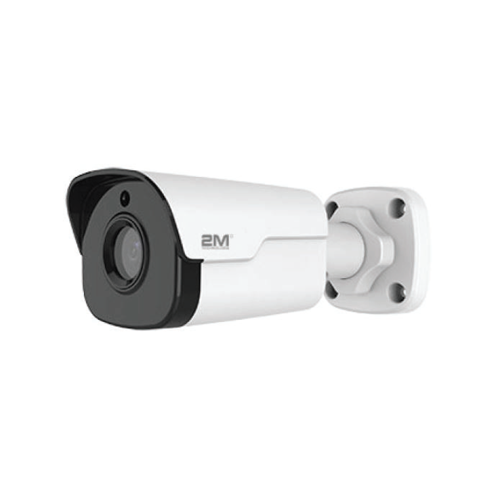

2MBIP-2MIR30USL-P 2MP Starlight IP Mini IR Bullet Camera

  • Weight: 0.99 lbs
  • IP Rating: IP67
  • WDR: 120dB
  • Shutter: Auto/Manual, 1~1/100000 s
  • Power Supply: 12 V DC±25% / PoE (IEEE802.3 af)
  • Sensor: 1/2.8?, progressive scan, 2.0 megapixel, CMOS

Product Documents

The 2M Technology 2MP Starlight IP Mini IR Bullet Camera is a small, fully loaded security camera. The device comes with Starlight Illumination features that help the user capture quality images in day or nighttime settings. In addition to the 120dB True WDR (Wide Dynamic Range) capability, the camera also has the ability to remove noise interference from the signal with the 2D/3D DNR (Digital Noise Reduction) option. Lastly, the Mini Bullet Camera is vandal resistant and has a durability rating of IP67.

Key Features

Optics

  • Starlight illumination
  • Day/night functionality
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Smart IR , up to 30 m (98 ft) IR distance
  • 120dB TRUE WDR
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265, H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 9:16 corridor mode

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
  • IK10 vandal resistant
  • 3-Axis
Weight 0.99 lbs
Series

Professional Series

Resolution

2 Megapixel (1920 x 1080)

Signal Type

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Features

Ultra WDR 120DB, Starlight, Audio Input

Lens

Fixed 2.8mm Lens

Camera
Sensor 1/2.8″, progressive scan, 2.0 megapixel, CMOS
Lens 4.0mm@ F1.6 6.0mm@ F1.6




DORI Distance

Lens Detect(m) Observe(m) Recognize(m) Identify(m)
4mm 64.3 25.7 12.9 6.4
6mm 96.4 38.6 19.3 9.6
Angle of view(H) 78.7° 53.3°
Angle of View (V) 42.8° 29.3°
Angle of View (O) 96.8° 65.1°
Adjustment angle Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
Shutter Auto/Manual, 1~1/100000 s


Minimum Illumination

Colour: 0.001 Lux (F1.6, AGC ON)

0 Lux with IR on

Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265 ,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile


Frame Rate

Main Stream: 2MP(1920×1080) Max. 30fps; Sub Stream: 2MP(1920×1080) Max. 30fps; Third Stream: D1(720×576) Max. 30fps
9:16 Corridor Mode Supported
HLC Supported





BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition Face detection,Audio detection
Intelligent Identification Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network


Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration ONVIF(Profile S), API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General


Power

12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 6.4 W
Dimensions (L × W × H) 157.3 ×62.4 ×63mm (6.2” × 2.5” × 2.5”)
Weight 0.45 kg (0.99 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Ingress Protection IP67
Vandal Resistant IK10
Reset Button Supported
