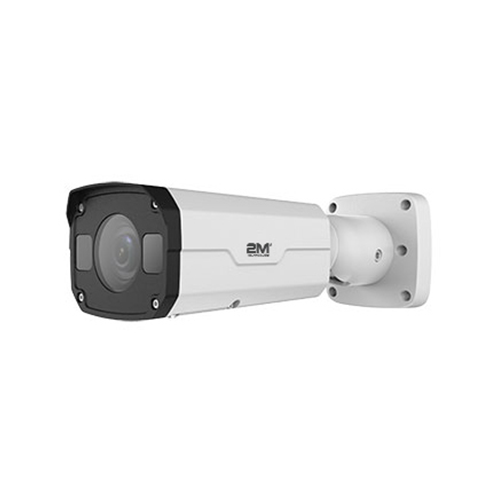

2MBIP-2MIR5027ZUASL-P 2MP WDR Super Starlight Motorized VF Network IR Bullet Camera (DISCONTINUED)
- Super starlight illumination
- Day/night functionality
- Smart IR, up to 50m (164ft) IR distance
- Up to 120dB Optical WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction
Product Documents
Optics
- Super starlight illumination
- Day/night functionality
- Smart IR, up to 50m (164ft) IR distance
- Up to 120dB Optical WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- Customized OSD
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Wide temperature range: -35°C ~ 60°C (-31°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| Weight | 2.2 lbs |
|---|---|
| Series | Professional Series |
| Resolution | 2 Megapixel (1920 x 1080) |
| Signal Type | |
| Lens | Motorized 2.8-12mm Lens |
| Night Vision Distance | 50 Meters (165 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Features | Ultra WDR 120DB, Starlight, Highlight Compensation, Motion Detection, Privacy Mask, Audio Input, 2 Way Audio |
| Alarm I/O | |
| Edge Storage | |
| Ingress Protection | IP67 |
| Camera | |||||
| Sensor | 1/2.8″, 2.0megapixel, progressive scan, CMOS | ||||
| Lens | 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.7 | 41.9 | 16.8 | 8.4 | 4.2 | |
| 13.5 | 309.5 | 8 3.8 | 41.9 | 20.9 | |
| Angle of view (H) | 121.36° ~ 33.51° | ||||
| Angle of View (V) | 60.2° ~ 13.2° | ||||
| Angle of View (O) | 157.8° ~ 41.2° | ||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.0005Lux (F1.2, AGC ON) 0Lux with IR on |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52 dB | ||||
| IR Range | Up to 50m (164ft) IR range | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
||||
| 9:16 Corridor Mode | Supported | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 8 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Interface | |||||
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] | ||||
| Output: impedance 600Ω; amplitude 2V [p-p] | |||||
| Alarm I/O | 1/1 | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 10W | |||||
| Dimensions (L × W × H) | 253.4 × 86 × 71.7mm (9.98” × 3.4” × 2.8”) | ||||
| Weight | 1.0kg (2.2lb) | ||||
| Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Ingress Protection | IP67 | ||||
