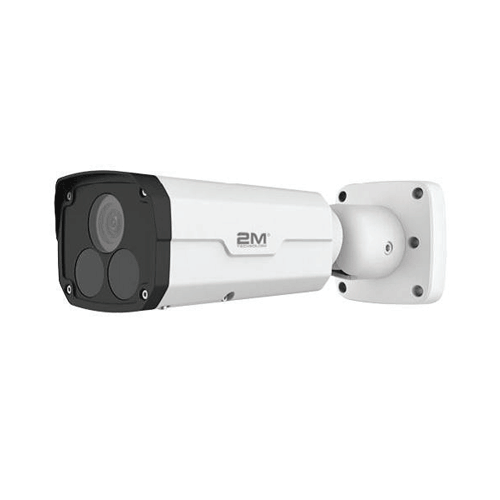

2MBIP-2MIR50AST-P 2MP WDR Starlight Fixed Bullet Network Camera
, , , , , ,

Sign up to be an authorized dealer to unlock exclusive prices

2MBIP-2MIR50AST-P 2MP WDR Starlight Fixed Bullet Network Camera (DISCONTINUED)

Sensor: 1/2.8?, progressive scan, 2.0 megapixel, CMOS
Shutter: Auto/Manual, 1/6~1/100000 s
IP Rating: IP67

REQUEST QUOTE

Product Documents

Downloads

Add to Wishlist

Add to Wishlist
Compare

This 2MP Starview Network IR Bullet Camera is an optical security camera. The product is comes with Starlight illumination that helps capture images in indoor and outdoor environments. In addition, the ONVIF Conformance allows the device to record H.264/H.265 video compression. Lastly, the product has a 60fps Frame Rate and a durability weatherproof rating of IP67.

Key Features

Optics

  • Starlight illumination
  • 60fps Frame Rate
  • Day/night functionality
  • SmartIR,up to 50 m (164 ft) IR distance
  • IR anti-reflection window to increase the infrared transmittance
  • 120dB TRUE WDR
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • ROI (Region of Interest)
  • 9:16 corridor format

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
SKU: 2MBIP-2MIR50AST-P Categories: , , , , , , Tags: , , , , , , , ,
Weight 1.32 lbs
Series

Professional Series
Resolution

2 Megapixel (1920 x 1080)
Signal Type

Night Vision Distance

50 Meters (165 feet)
Night Vision Type

Infra Red (IR) LED
Lens

Fixed Lens 4.0 mm
Features

Ultra WDR 120DB, Starlight, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, 2 Way Audio
Behavior Detection

, ,

Ingress Protection

IP67
Vandal Resistant

IK10
Edge Storage

,

Sensor 1/2.8″,progressive scan, 2.0 megapixel, CMOS
Lens 4.0mm@F1.6 6.0mm@F1.6




DORI Distance

 Lens Detect(m) Observe(m) Recognize(m) Identify(m)
4mm 64.3 25.7 12.9 6.4
6mm 96.4 38.6 19.3 9.6
Angle of View(H) 85.7° 61.2°
Angle of View (V) 52.6° 35.98°
Angle of View (O) 105.4° 75.3°
Adjustment angle Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
Shutter Auto/Manual, 1/6~1/100000 s


Minimum Illumination

 Colour: 0.001Lux (F1.6, AGC ON)

0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 50m (164 ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile


Frame Rate

 Main Stream:2MP (1920×1080): Max. 60fps; Sub Stream: 2MP (1920×1080): Max.30 fps;

Third Stream:D1 (720×576): Max. 30fps;
9:16 Corridor Mode Supported
ROI Supported
HLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas



ROI Up to 8 areas
Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition: Face detection
Intelligent Identification Defocus, Scene Change
Statistical Analysis People counting


General Function

 Watermark, IP Address Filtering, output/input Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Storage
Edge Storage Micro SD, up to 128 GB
Network Storage ANR
Network


Protocols

 IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration ONVIF(Profile S, Profile G), API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General


Power

 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 7.5W
Dimensions (L × W × H) 253×86.4 ×78.7 mm (10” × 3.4” × 3.1”)
Weight 0.6kg (1.32lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress Protection IP67
Vandal Resistant IK10
