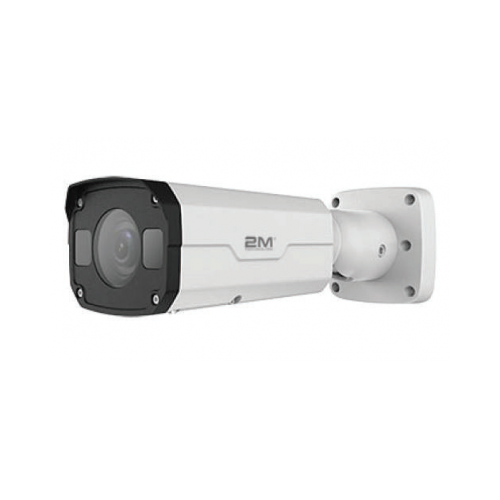

2MBIP-2MIR50ZUA-P 2MP Varifocal Network IR Bullet Camera

Sensor: 1/2.9?, 2 megapixel, progressive scan, CMOS
Shutter: Auto/Manual, 1/6~1/100000 s
Pan Tilt Zoom Angle: Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
IP Rating: IP67

Product Documents

The 2M Technology 2MBIP-2MIR50ZUA-P model is a 2 megapixel VF Network IR Bullet Camera with day/night capabilities. The product allows you to shoot up to 164 feet with “Smart IR” illumination. 2M Technology cameras use a range of features such as 120 dB WDR (Wide Dynamic Range) and 2D/3D DNR (Dynamic Noise Reduction. Lastly, the Bullet Camera has the ability to use record using H.265 video compression to produce the best quality resolution.

Key Features

Optics

  • Day/night functionality
  • Smart IR, up to 50m (164 ft) IR distance
  • Up to 120 dB Optical WDR(Wide Dynamic Range)
  • 2D/3D DNR(Digital Noise Reduction)

Compression

  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • ROI (Region of Interest)
  • 9:16 corridor mode

Network

  • ONVIF Conformance

Structure

  • Support PoE power supply
  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
Weight 1.28 lbs
Series

Professional Series

Resolution

2 Megapixel (1920 x 1080)

Signal Type

Lens

Motorized 2.8-12mm Lens

Night Vision Distance

50 Meters (165 feet)

Night Vision Type

Infra Red (IR) LED

Features

Ultra WDR 120DB, Audio Input

Audio Compression

Camera
Sensor 1/2.8″, 2.0megapixel, progressive scan, CMOS
Lens 2.8~12mm,AF automatic focusing and motorized zoom lens
DORI Distance Lens (mm) Detect(m) Observe(m) Recognize(m) Identify(m)
2.8 45 18 9 4.5
12 192.9 77.1 38.6 19.3
Angle of View(H) 94.0° ~ 28°
Angle of View (V) 56.7°~14.4°
Angle of View (O) 122.2°~34.4°
Adjustment angle Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
Shutter Auto/Manual, 1~ 1/100000s
Minimum Illumination Colour: 0.001Lux (F1.6, AGC ON)
0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 50m (164ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264,MJPEG
H.264 code profile
Baseline profile, Main Profile, High Profile
Frame Rate Main Stream:2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream:D1 (720*576), Max30fps
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8areas
ROI Up to 8areas
Motion Detection Up to 4 areas
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF(Profile S, Profile G, Profile T), API
Interface
Audio I/O Audio cable
Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 9W
Dimensions (L × W × H) 253.4 ×86 ×71.7mm (9.98” × 3.4” × 2.8”)
Weight 1.0kg (2.2lb)
Working Environment -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
