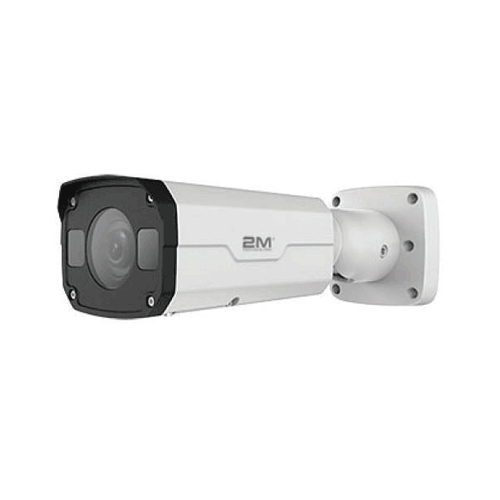

2MBIP-2MIR50ZUASL-P 2MP WDR Super Starlight (Motorized) VF Network IR Bullet Camera (DISCONTINUED)

  • IP Rating: IP67
  • WDR: 120dB WDR
  • Shutter: Auto/Manual, 1~1/100000 s
  • Sensor: 1/2.8″ progressive scan 2MP CMOS
REQUEST QUOTE

Product Documents

Compare

The WDR Super Starlight (Motorized) VF Network IR Bullet Camera is a 2 megapixels and is built with motorized lens for remote zoom. The product is equipped with Super Starlight illumination that helps produce ideal images in indoor and outdoor environments. In addition, the camera offers customizable OSD (On-Screen-Display) and up to 120 dB WDR (Wide Dynamic Range). Lastly, the Bullet Camera supports PoE power supply.

Key Features

Optics

  • Super starlight illumination
  • Day/night functionality
  • Smart IR, up to 50m (164 ft) IR distance
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265, H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • ROI (Region of Interest)
  • 9:16 corridor mode
  • Customized OSD

Network

  • ONVIF Conformance

Structure

  • Support PoE power supply
  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
Weight 1.28 lbs
Series

Professional Series

Resolution

2 Megapixel (1920 x 1080)

Signal Type

Lens

Motorized Lens 2.7-13.5mm

Night Vision Distance

50 Meters (165 feet)

Night Vision Type

Infra Red (IR) LED

Features

Ultra WDR 120DB, Starlight, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input, 2 Way Audio

Ingress Protection

IP67

Alarm I/O

Behavior Detection

, ,

Camera
Sensor 1/2.8″, 2.0megapixel, progressive scan, CMOS
Lens 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.7 41.9 16.7 8.4 4.2
13.5 209.5 83.8 41.9 20.9
Angle of View (H) 121.36° ~ 33.51°
Angle of View (V) 58.4° ~ 14.9°
Angle of View (O) 139.9° ~ 33.4°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter Auto/Manual, shutter time: 1 ~ 1/100000s
Minimum Illumination Colour: 0.0005Lux (F1.2, AGC ON)
0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52 dB
IR Range Up to 50m (164ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 2MP (1920*1080), Max 60fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/O Input: impedance 35kΩ; amplitude 1V [p-p]
Output: impedance 600Ω; amplitude 1V [p-p]
Alarm I/O 1/1
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output 1 BNC, impedance 75Ω; amplitude 1V [p-p]
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 10W
Dimensions (L × W × H) 253.4 × 86 × 71.7mm (9.98” × 3.4” × 2.8”)
Weight 1.0kg (2.2lb)
Working Environment -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
