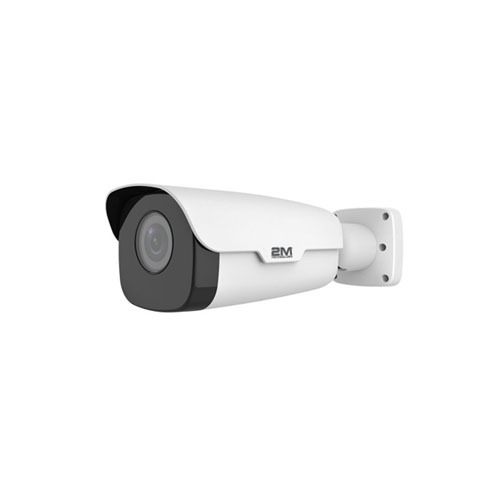

2MBIP-4KIR1004XZUA-C 4K WDR Ultra-HD Vari-focal Bullet Network Camera
Product Documents
Optics
- Day/night functionality
- Smart IR, up to 100m (328ft) IR distance
- Up to 120dB Optical WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
- Optical glass window with higher light transmittance
Compression
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- Customized OSD
Network
- ONVIF Conformance
Structure
- Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| Series | Corporate Series |
|---|---|
| Signal Type | |
| Resolution | 4k – 8 Megapixel (3840 x 2160) |
| Features | Ultra WDR 120DB, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input, 2 Way Audio |
| Lens | Varifocal 2.8-12mm Lens |
| Night Vision Type | Infra Red (IR) LED |
| Night Vision Distance | 100 Meters (320 feet) |
| Edge Storage | |
| Alarm I/O | |
| Ingress Protection | IP67 |
| Audio Compression |
| Camera | |||||
| Sensor | 1/2.5″, 8.0 megapixel, progressive scan, CMOS | ||||
| Lens | 2.8 ~ 12mm@F1.6, P-Iris, AF automatic focusing and motorized zoom lens | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 77.8 | 31.1 | 15.6 | 7.8 | |
| 12 | 333.3 | 133.3 | 66.7 | 33.3 | |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° | ||||
| Angle of View (H) | 118.5° ~ 30.4° | ||||
| Angle of View (V) | 64.0° ~ 16.6° | ||||
| Angle of View (O) | 154.1° ~ 37.4° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Minimum Illumination | Color: 0.02Lux (F1.6, AGC ON) 0Lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| S/N | >55dB | ||||
| IR Range | Smart-IR, up to 100m (328ft) IR range | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 8MP (3840*2160), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
||||
| 9:16 Corridor Mode | Supported | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 8 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Smart | |||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, Up to 256GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatibility | |||||
| Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Interface | |||||
| Audio I/O | Audio cable 1 Input: impedance 35kΩ; amplitude 2V [p-p] 1 Output: impedance 600Ω; amplitude 2V [p-p] |
||||
| Alarm I/O | 1-Feb | ||||
| Serial Port | 1 RS485 | ||||
| Network | 1 RJ45, 10M/100M Base-TX Ethernet | ||||
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] | ||||
| General | |||||
| Power | DC 12V±25%, AC 24V±25%, PoE (IEEE 802.3at) | ||||
| Power consumption | Max 13.7W | ||||
| Dimensions (LxWxH) | 305.5 x 104.1 x 97.3 (mm) (12.0″ x 4.1″ x 3.8″) | ||||
| Weight | 1.65kg (3.6lb) | ||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F) | ||||
| Humidity | ≤95% RH (non-condensing) | ||||
| Ingress Protection | IP67 | ||||
| Reset Button | Supported | ||||
