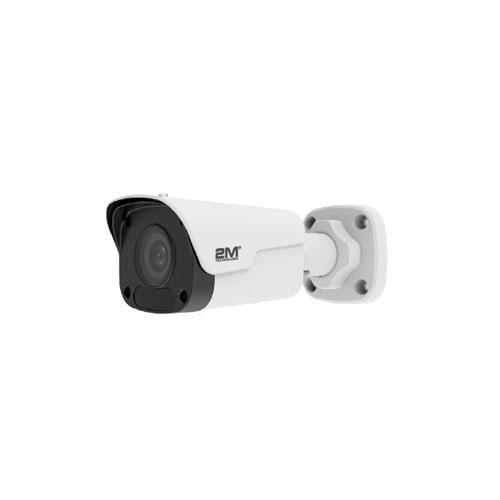

2MBIP-4KIR30-GS 4K Mini Fixed Bullet Network Camera
REQUEST QUOTE
- Day/night functionality
- Smart IR, up to 30m (98 ft) IR distance
- Optical glass window with higher light transmittance
- MStar Chip
- NDAA Compliant
Product Documents
Optics:
- Day/night functionality
- Smart IR, up to 30m (98 ft) IR distance
- Optical glass window with higher light transmittance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression:
- Ultra 265, H.265, H.264, MJPEG
- ROI (Region of Interest)
Network:
- ONVIF Conformance
Structure:
- Wide temperature range: -30°C to 60°C (-22°F to 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
| CAMERA | |||||||
| Sensor | 1/3″, 8 MP, progressive scan, CMOS | ||||||
| Lens | 2.8mm@F2.0 | ||||||
|
DORI Distance |
Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify
(m) |
||
|
2.8mm |
84 |
33.6 |
16.8 |
8.4 |
|||
| Angle of View(H) | 112.7° | ||||||
| Angle of View (V) | 60.1° | ||||||
| Angle of View (O) | 146.5° | ||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | ||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||||
| Minimum Illumination | Color: 0.005Lux (F2, AGC ON)
0 Lux with IR on |
||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| S/N | >56dB | ||||||
| IR Range | Up to 30m (98 ft) IR range | ||||||
| Wavelength | 850nm | ||||||
| IR On/Off Control | Auto/Manual | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| VIDEO | |||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||
|
Frame Rate |
Main Stream: 8MP (3840×2160): Max. 20 fps; 5MP (2944×1656): Max. 30 fps; 4MP (2560×1440): Max. 30 fps; 2MP(1920×1080):
Max. 30 fps Sub Stream: 720P (1280×720): Max. 20 fps Third Stream: 4CIF (704×576): Max. 20 fps |
||||||
| H.264 code profile | Baseline Profile, Main Profile | ||||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||||
| OSD | Up to 4 OSDs | ||||||
| Privacy Mask | Up to 4 areas | ||||||
| ROI | Up to 2 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| NETWORK | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS |
| Compatible Integration | ONVIF (Profile S, Profile T), API |
|
Client |
EZStation EZView EZLive |
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |
| INTERFACE | |
| Network | 10/100M Base-TX Ethernet |
| GENERAL | |
|
Power |
12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 5.5W | |
| Dimensions (L × W × H) | 167.3×62.9×62.7 (mm) / 6.6”×2.5”×2.5” (in) |
| Net Weight | 0.45kg (0.99lb) |
| Material | Metal |
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F),
Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30°C ~ +60°C (-22°F ~ 140°F),
Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 2KV |
| Ingress Protection | IP67 |
| Reset Button | Supported |
