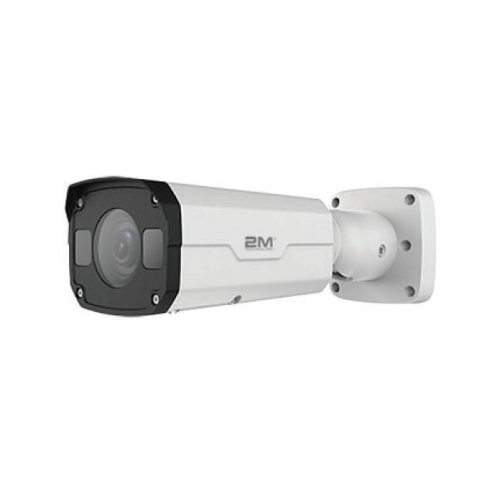

2MBIP-4MIR30VUA-P 4MP VF Network IR Bullet Camera

  • Day/night functionality
  • SmartIR, up to 30m (98 ft) IR distance
  • Up to 120 dB Optical WDR(Wide Dynamic Range)
  • 2D/3D DNR(Digital Noise Reduction)
  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams

Product Documents

2MCCTV brings you our 4 Megapixel VF Network IR Bullet Camera. This product has the ability customize OSD (On-Screen-Display) and support Ultra 265/H.265/H.264/ MJPEG video compression. In addition, the “Smart IR” illumination allows the Bullet Camera to capture images in areas up to 98 feet IR distance. Lastly, the product is vandal resistant and has a weatherproof durability rating of IP67.

Key Features

Optics

  • Day/night functionality
  • SmartIR, up to 30m (98 ft) IR distance
  • Up to 120 dB Optical WDR(Wide Dynamic Range)
  • 2D/3D DNR(Digital Noise Reduction)

Compression

  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • ROI (Region of Interest) 9:16 corridor mode Customized OSD

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
  • IK10 vandal resistant
  • 3-Axis
Weight 2.2 lbs
Series

Professional Series

Resolution

4 Megapixel (2592 x 1520)

Signal Type

Lens

Fixed 2.8mm Lens

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Features

Ultra WDR 120DB, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input, 2 Way Audio

Alarm I/O

Behavior Detection

, ,

Edge Storage

,

Ingress Protection

IP67

Vandal Resistant

IK10

Camera
Sensor 1/3″, 4.0 megapixel, progressive scan, CMOS
Lens 2.8 ~ 12mm@F1.4
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63 25.2 12.6 6.3
12 270 108 54 27
Angle of View (H) 91° ~ 27°
Angle of View (V) 54.4° ~ 13.7°
Angle of View (O) 118.3° ~ 33.2°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.005Lux (F1.4, AGC ON)
0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264,MJPEG
Frame Rate Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/O Audio cable
Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 1/1
Network 1 RJ45 10M/100M Base-TX Ethernet
Video Output 1 BNC, impedance 75Ω; amplitude 1V [p-p]
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 9W
Dimensions (L × W × H) 253.4 × 86 × 71.7mm (9.98” × 3.4” × 2.8”)
Weight 1.0kg (2.2lb)
Working Environment -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
