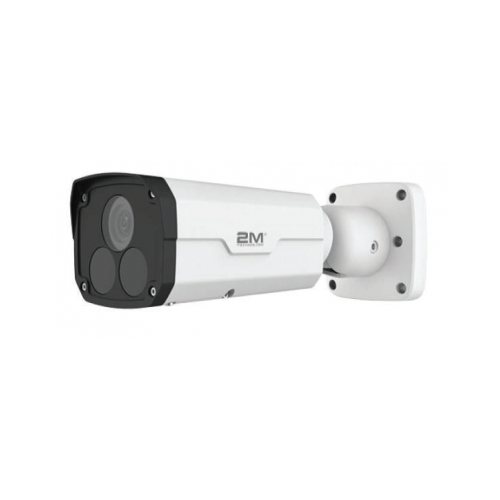

2MBIP-4MIR50U-P 4MP WDR Fixed Bullet Network Camera (DISCONTINUED)

  • Sensor: 1/3″, progressive scan ,4 megapixel, CMOS
  • Shutter: Auto/Manual, 1/6~1/100000 s
  • Pan Tilt Zoom Angle: Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
  • IP Rating: IP67
REQUEST QUOTE

Product Documents

Downloads

Add to Wishlist

Add to Wishlist
Compare

The 4MP WDR Fixed Bullet Network Camera offers 4 megapixel resolution recording and up to 120 dB WDR (Wide Dynamic Range). This helps produce better images in indoor or outdoor environments. In addition, the 2D/3D DNR (Digital Noise Reduction) feature ensures great video recording without any background noise interference. Lastly, the device is vandal resistant and has been tested and proven durability with a rating of IP67.

Key Features

Optics

  • Day/night functionality
  • SmartIR ,up to 50 m (164 ft) IR distance
  • Up to 120 dB Optical WDR(Wide Dynamic Range)
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • ROI (Region of Interest)
  • 9:16 corridor format

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • IK10 vandal resistant
  • IP67
SKU: 2MBIP-4MIR50U-P Categories: , , , , , , Tags: , , , , , , ,
Weight 1.28 lbs
Series

Professional Series
Resolution

4 Megapixel (2592 x 1520)
Signal Type

Night Vision Distance

50 Meters (165 feet)
Night Vision Type

Infra Red (IR) LED
Lens

Fixed 2.8mm Lens
Features

Ultra WDR 120DB, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input
Behavior Detection

, ,

Edge Storage

,

Ingress Protection

IP67
Vandal Resistant

IK10
Camera
Sensor 1/3″, progressive scan, 4.0 megapixel, CMOS
Lens 4.0mm@F1.8 6.0mm@F1.8




DORI Distance

 Lens Detect(m) Observe(m) Recognize(m) Identify(m)
4mm 90 36 18 9
6mm 135 54 27 13.5
Angle of View(H) 78.9° 49.9°
Angle of View (V) 39.6° 27°
Angle of View (O) 97.1° 61.4°
Adjustmentangle Pan: 0°~360° Tilt: 0°~90° Rotate:0°~360°
Shutter Auto/Manual, 1/6~1/100000 s


Minimum Illumination

 Colour: 0.02 Lux (F1.8, AGC ON)

0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >55dB
IR Range Up to 50m (164 ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile


Frame Rate

 Main Stream:4MP (2592×1520): Max. 20 fps,4MP (2560×1440): Max. 25 fps,3MP (2048×1520): Max. 30 fps;

Sub Stream:2MP (1920×1080): Max. 30 fps;

Third Stream:D1(720×576) : Max. 30fps
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition: Face detection,Audio detection
Intelligent Identification Defocus, Scene Change
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication





Storage
Edge Storage Micro SD, up to 128 GB
Network Storage ANR
Network


Protocols

 IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, TLS
Compatible Integration ONVIF(Profile S, Profile G), API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General


Power

 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 9 W
Dimensions (L × W × H) 253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”)
Weight 0.58kg (1.28lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress Protection IP67
Vandal Resistant IK10
