2MBIP-5MIR30UASL-P
, , , , , ,

Sign up to be an authorized dealer to unlock exclusive prices

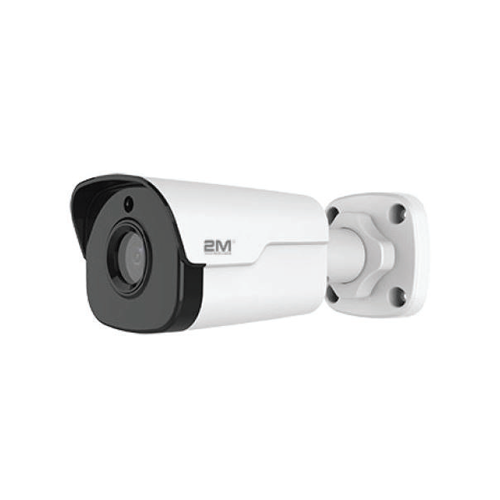

2MBIP-5MIR30UASL-P 5MP WDR Starlight Mini Fixed Bullet Network Camera (DISCONTINUED)

  • Smart IR, up to 30m (98 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)
  • Starlight illumination
REQUEST QUOTE

Product Documents

Downloads

Add to Wishlist

Add to Wishlist
Compare

Key Features

Optics

  • Starlight illumination
  • Day/night functionality
  • Smart IR, up to 30m (98 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 9:16 corridor format

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
SKU: 2MBIP-5MIR30UASL-P Categories: , , , , , , Tag:
Dimensions 6.2 × 2.5 × 2.5 in
Series

Professional Series
Resolution

5 Megapixel (2560 x 1960)
Signal Type

Night Vision Distance

30 Meters (100 feet)
Night Vision Type

Infra Red (IR) LED
Features

Ultra WDR 120DB, Starlight, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input
Lens

Fixed 2.8mm Lens
Audio Compression

Behavior Detection

, ,

Ingress Protection

IP67
Camera
Sensor 1/2.7″, progressive scan, 5.0megapixel, CMOS
Lens 4.0mm@F1.6 6.0mm@F1.6




DORI Distance

 Lens Detect(m) Observe(m) Recognize(m) Identify(m)
4mm 90 36 18 9
6mm 135 54 27 13.5
Angle of View(H) 79.7° 50.5°
Angle of View (V) 51.8 35.9
Angle of View (O) 98.1 62.1
Adjustmentangle Pan: 0°~360° Tilt: 0°~90° Rotate:0°~360°
Shutter Auto/Manual, 1/6~1/100000 s


Minimum Illumination

 Color: 0.005 Lux (F1.6, AGC ON)

0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile




Frame Rate

 Main Stream:5MP(2592 x 1944): Max.20 fps,5MP(2592 x 1944): Max.25fps(WDR OFF), 4MP(2560 x 1440): Max. 30 fps,3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max.30 fps;

Sub Stream:2MP(1920 x 1080): Max.30 fps;

Third Stream: D1(720 x 576): Max.30 fps;
9:16 Corridor Mode Supported
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas



Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition: Face detection._Audio detection
Intelligent Identification Defocus, Scene Change
Statistical Analysis People counting
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Suppression Supported
Sampling Rate 8 KHZ
Network


Protocols

 IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL, TLS
Compatible Integration ONVIF(Profile S), API
Interface
Built-in Mic Supported
Network 1 RJ45 10M/100M Base-TX Ethernet
General


Power

 12 V DC±25%,PoE(IEEE802.3 af)
Power consumption: Max 6.4W
Dimensions (L × W × H) 157.3 ×62.4 ×63mm (6.2” × 2.5” × 2.5”)
Weight 0.45 kg (0.99 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
Ingress Protection IP67
Reset Button Supported
