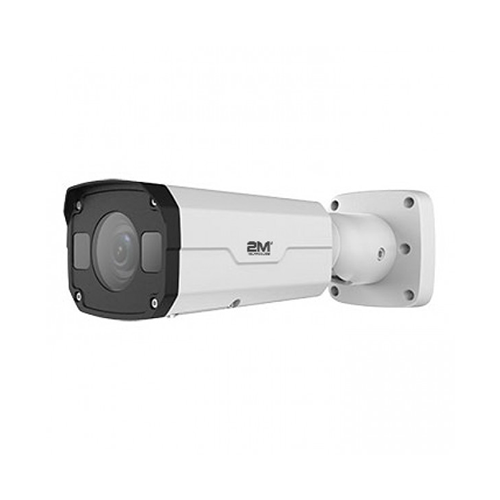

2MBIP-5MIR30Z-E 5MP Motorized Vandal-resistant Network IR Bullet Camera

REQUEST DEMO
  • Smart IR
  • 2D/3D DNR
  • Region of Interest (ROI)
  • ONVIF Conformance
  • IP67

Note: Due to our continued product research and development, 2mtechnology Inc. reserves the right to amend all the technical specifications without prior notice.

Product Documents

The 2M Technology 2MBIP-5MIR30Z-E Motorized Vandal-resistant Network IR Bullet Camera offers a 5MP camera sensor. Additionally, the motorized camera offers Smart IR capabilities giving it an IR distance out to 30m. The camera offers Region of Interest (ROI) function and follows ONVIF conformance. Further, the network camera has 2D/3D digital noise reduction and is IP67 rated.

Weight 2.2 lbs
Resolution

5 Megapixel (2560 x 1960)

Series

Essential Series

Signal Type

Lens

Motorized 2.8-12mm Lens

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Ingress Protection

IP67

Camera
Sensor 1/2.7″, 5.0 megapixel, progressive scan, CMOS
Lens 2.8 ~ 12mm, motorized zoom lens
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63 25.2 12.6 6.3
12 270 108 54 27
Angle of View (H) 105.3° ~ 25.4°
Angle of View (V) 69.5° ~ 18.4°
Angle of View (O) 136.9° ~ 31.2°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Color: 0.01 Lux (F1.8, AGC ON)
0 Lux with IR on
Digital noise reduction 2D/3D DNR
Day/Night IR-cut filter with auto switch (ICR)
S/N >52dB
IR Range Up to 30m (98ft) IR range
WDR DWDR
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream: 5MP (2592*1944), Max 20fps;
Sub Stream: 720P (1280*720), Max 20fps
HLC Supported
BLC Supported
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
Edge Storage MicroSD, up to 256GB
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7.0W
Dimensions (L × W × H) 240.3 × 86.4 × 75.6mm (9.46” × 3.4” × 2.98”)
Weight 1kg (2.2lb)
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection IP67
