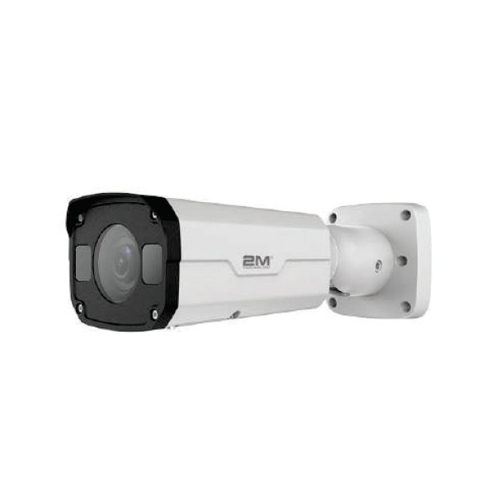

2MBIP-5MIR50ZUAST-P 5MP WDR Starview (Motorized) VF Network IR Bullet Camera

  • Ultra 265, H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • ROI (Region of Interest)
  • 9:16 corridor mode
  • Starview Illumination

Product Documents

Key Features

Optics

  • Starview Illumination
  • Day/night functionality
  • Smart IR, up to 50m (164 ft) IR distance
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265, H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • ROI (Region of Interest)
  • 9:16 corridor mode
  • Customized OSD

Network

  • ONVIF Conformance

Structure

  • Support PoE power supply
  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
Dimensions10 × 3.4 × 3.1 in
Series

Professional Series

Resolution

5 Megapixel (2560 x 1960)

Signal Type

Lens

Motorized 2.8-12mm Lens

Night Vision Distance

50 Meters (165 feet)

Night Vision Type

Infra Red (IR) LED

Features

Ultra WDR 120DB, Starlight, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input, 2 Way Audio

Alarm I/O

Edge Storage

,

Ingress Protection

IP67

Camera
Sensor1/2.7″, 5.0 megapixel, progressive scan, CMOS
Lens2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.760.824.312.26.1
13.5303.8121.560.830.4
Angle of View (H)93.38° ~ 28.56°
Angle of View (V)88° ~ 16.4°
Angle of View (O)121.4° ~ 33.7°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 90°Rotate: 0° ~ 360°
ShutterAuto/Manual, shutter time: 1 ~ 1/100000s
Minimum IlluminationColour: 0.002Lux (F1.2, AGC ON)
0Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52 dB
IR RangeUp to 50m (164ft) IR range
DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 5MP (2592*1944), Max 20fps; 5MP (2592*1944), Max 25fps (WDR OFF); 4MP (2560*1440), Max 30fps;
3MP (2048*1536), Max 30fps; 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*765), Max 30fps
9:16 Corridor ModeSupported
HLCSupported
BLCSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Audio
Audio CompressionG.711
Two-way audioSupported
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
Interface
Audio I/OInput: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O1/1
Network1 RJ45 10M/100M Base-TX Ethernet
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 10W
Dimensions (L × W × H)253.4 × 86 × 71.7mm (9.98” × 3.4” × 2.8”)
Weight1.0kg (2.2lb)
Working Environment-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67
