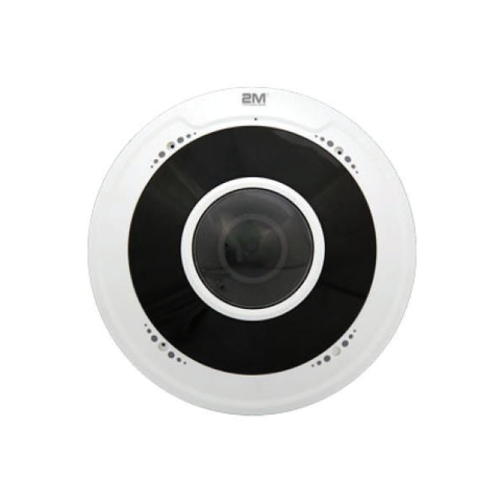

2MFIP-4MIR10UA-P 4MP Fisheye Fixed Lens IP Camera

  • Ultra wide angle lens,180°panoramic image
  • Smart IR, Up to 10 m (33ft) IR distance
  • Ultra265, H.264, MJPEG
  • Built-in omni directional microphone
  • Triple stream (3 panoramic view)
  • ONVIF Conformance
  • Support PoE power supply
  • IK10 IP66

Product Documents

The 2M Technology 4MP Fisheye Fixed Lens Network Camera is feature rich surveillance camera. For example, the product includes a built-in Omni directional microphone. This allows the product to be able to optimize the sound quality of the video compression. In addition to the Ultra wide angle lenses with 180? panoramic video, the camera also comes with 2D/3D DNR (Digital Noise Reduction). Lastly, the Fisheye IP camera has ONVIF network conformance and supports PoE power supply.

Key Features

Optics

  • Ultra wide angle lens,180°panoramic image
  • Smart IR, Up to 10 m (33ft) IR distance
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra265, H.264, MJPEG
  • Built-in omni directional microphone
  • Triple stream (3 panoramic view)

Network

  • ONVIF Conformance

Structure

  • Support PoE power supply
  • Wide temperature range: -40°C to 60°C (-40°F to 140°F) Wide voltage range of ±25%
  • IK10 IP66
Weight 0.86 lbs
Series

Professional Series

Resolution

4 Megapixel (2592 x 1520)

Signal Type

Night Vision Distance

10 meters (32 Feet)

Ingress Protection

IP66

Features

Ultra WDR 120DB, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input, 2 Way Audio

Behavior Detection

Vandal Resistant

IK10

Camera
Image sensor 1/3″, progressive scan, 4.0 megapixel, CMOS
Lens 1.6mm@ F1.6


DORI Distance

Lens Detect(m) Observe(m) Recognize(m) Identify(m)
1.6mm 36 14.4 7.2 3.7
Angle of View 180°
Shutter Auto/Manual,shutter time:1 ~1/100000 s


Minimum Illumination

Colour: 0.01 Lux (F1.6, AGC ON)

0 Lux with IR

Day / Night IR-cut filter for day & night function
Digital noise reduction 2D/3D DNR
S/N >55dB
IR Range UP to 10m (33ft)
Defog Digital Defog
WDR 120dB
Video
Compression Ultra265, H.264,MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile




Frame Rate

Main Stream : (2560×1440) : Max.25fps;

Sub Stream: (1920×1080) : Max.25fps; Third Stream: D1(720 x 576): Max.25 fps

BLC Supported
OSD Up to 8 OSDs
ROI Up to 8 areas
Privacy Mask Up to 8 areas
Motion Detection Up to 4 areas


General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711
Two-way audio Supported
Suppression Supported
Sampling Rate 8 KHZ
Storage
Edge Storage Micro SD, up to 128GB
Network Storage ANR
Network


Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration ONVIF(Profile S, Profile G), API
Live View Display
Mount Type Support table, wall, and ceiling







Display Mode

Support 9 display modes in total (including display modes of mount types and decoding modes):

Original Image,Fisheye+4PTZ,Panoramic,360°Panoramic+1PTZ,180°Panoramic,Fisheye+3PTZ ,Fisheye+4PTZ,

360°Panoramic+6PTZ,Fisheye+8PTZ

Interface




Audio I/O

Audio interface
Input: impedance 35 kΩ; amplitude 2 V *p-p]
Output: impedance 600 Ω; amplitude 2 V *p-p]
3 built-in omnidirectional microphone
Alarm I/O 1 / 1
Built-in Mic Supported
Video Output 1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
Network 1 RJ45 10M/100M Base-TX Auto-adaptive Ethernet
General


Power

DC12V±25%,PoE(IEEE 802.3af)
Power consumption: Max. 11 W
Dimensions (Ø x H) Φ125x 43.7 mm (Φ4.9” x 1.7”)
Weight 0.39kg(0.86lb)
Working Environment -40°C ~60°C (-40°F ~ 140°F), Humidity :10%~95% RH
Ingress Protection IP66
Vandal Resistant IK10
Reset Button Supported
