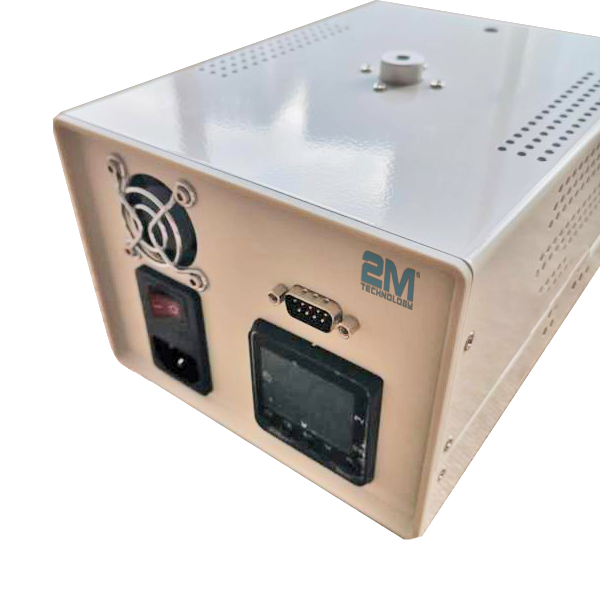

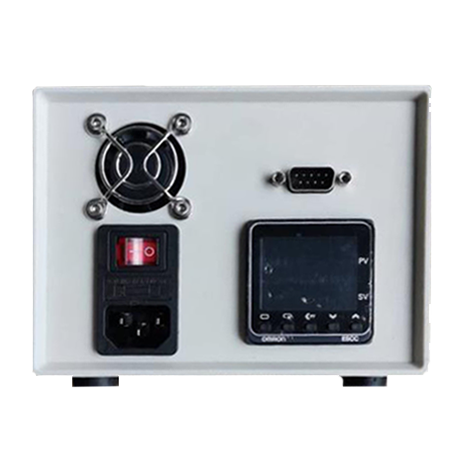

2MHPTM-BB High precision human body temperature measurement black body (DISCONTINUED)

  • Real-time data transmission
  • Auto focus, fast and accurate temperature measuring
  • Compact size: easy to install in small spaces
  • Patented intelligent compensated temperature measurement algorithm: accuracy of ±0.3°C

Product Documents

  • Frequency 50Hz, Gigabit network: support temperature data transmitting real-time
  • Auto focus, fast and precise temperature measuring Spot/line/area/isotherm analysis tools, simpler and more flexible to retrieve temperature data
  • Compact size: easily install in small space
  • Support multi-protocols: TCP, UDP, ICMP, DHCP, RTSP
  • Patented intelligent compensated temperature measurement algorithm: accuracy of ±0.3°C
Weight6 lbs
MAIN DATA
Working VoltageAC180~240V
Power Consumption (Highest)260W
Environment Temperature0°C~ 40.0°C
Working TemperatureIndoor 5°C~ 100°C
Calibration Temperature35°C~ 37°C
Emissivity0.97±0.02
Temperature Resolution0.1°C
Settle Time≤5min
Temperature Measurement Accuracy±0.2°C@36°C
Temperature Stability±( 0.1~0.3 )°C/h
Effective Emissivity Surface100mm x 80mm
Size (L x W x H)195 x 150 x 110mm
