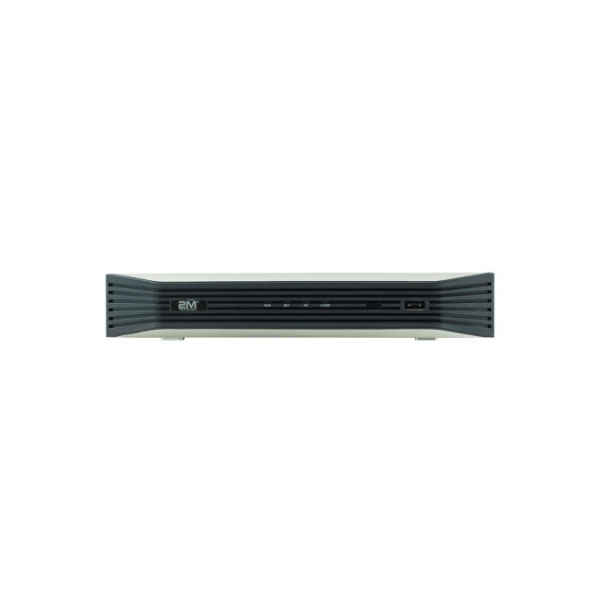

2MN-8004-P 4CH Network Video Recorder

Power Consumption: Max. 5W
Power Supply: 12VDC
Dimensions: 10.2 × 9.5 × 1.7 in
Weight: 2.2 lbs

Product Documents

The 2M Technology 2MN-8004-P 4CH Network Video Recorder is a high quality NVR system. The device comes with HDMI and VGA Video Output. This allows the customer to incorporate a monitor for video display. The product has the ability to connect to a maximum of 4 network cameras with up to 8 Megapixels resolution. Lastly, the NVR device supports 1 SATA HDDs, up to 8TB for each HDD.

Key Features

– Support Ultra 265/H.265/H.264 video formats
– 4-channel input
– Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
– Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
– HDMI and VGA simultaneous output
– Up to 8 Megapixels resolution recording
– 1 SATA HDDs, up to 8TB for each HDD
– ANR technology to enhance the storage reliability when the network is disconnected
– Support cloud upgrade

Weight2.2 lbs
Signal Type

Number of Channels

PoE Channels

Internal Hard Drives SATA Ports

1 SATA Hard Drives

Resolution

4 Megapixel (2592 x 1520)

Series

Professional Series

VIDEO & AUDIO
IP Video Input4-ch
Network
Incoming Bandwidth40Mbps
Outgoing Bandwidth48Mbps
Remote Users128
ProtocolsP2P, UPnP,  NTP, DHCP, PPPoE
Video/Audio Output






HDMI/VGA Output

HDMI:

4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz,

1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768

/60Hz

VGA:

1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz,

1280×1024 /60Hz, 1280×720 /60Hz, 1024×768/60Hz

Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Synchronous Playback4-ch
Corridor Mode Screen3/4
Decoding
Decoding formatUltra 265, H.265, H.264
Live view/ Playback8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30
Hard Disk
SATA1 SATA interfaces
Capacityup to 8TB for each disk

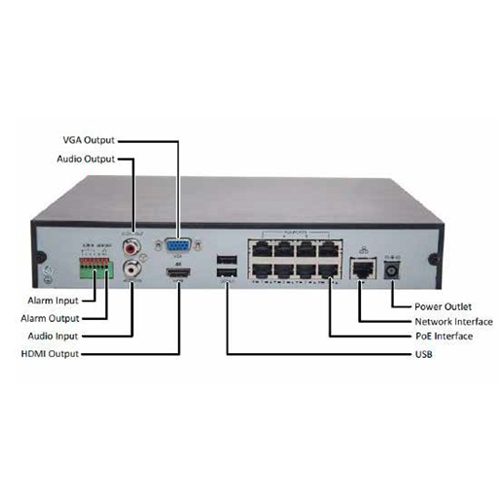

External Interface


Network Interface



1 RJ45 10M/100M self-adaptive Ethernet Interface

USB InterfaceFront panel: 1 x USB2.0; Rear panel: 1 x USB2.0
GENERAL


Power Supply

12V DC

Power Consumption: ≤ 5 W( without HDD )



Working Environment

-10°C ~ + 55°C ( +14°F ~ +131°F )

Humidity ≤ 90% RH (non-condensing)



Dimensions



260 x 240 x 43 (mm) (10.2″ x 9.4″ x 1.7″) (in)
