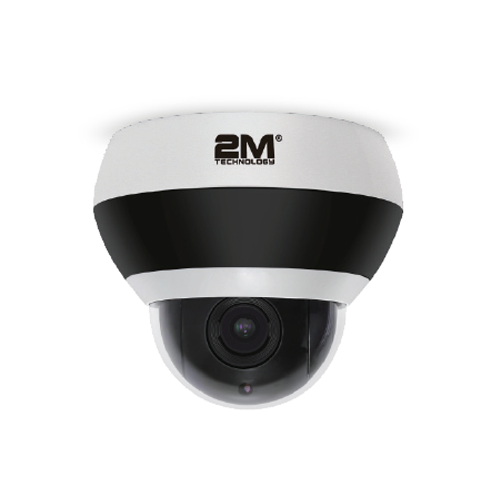

2MPT-2MIR304X-E Large 2MP HD Analog IR PTZ Dome Camera

  • 2MP Resolution with 4X optical zoom
  • 4-in-1 Signal capability AHD /TVI / CVI / CVBS
  • Lightning protection, surge protection and voltage transient protection
  • IP66
  • Transmission distance up to 500m

Product Documents


Product Overview

  • 2.0MP 1/2.8’’ Low illumination 307CMOS, 4X optical zoom
  • Precision gear driven, keen responsive, smoothly operation, the precision deviation less than 0.1 degree
  • Lightning protection, surge protection and voltage transient protection
  • Ingress Protection: IP66
  • Supports coaxial control, the distance of video transmission up to 500m
  • Metal plus plastic case, suppor t AHD /TVI / CVI / CVBS 4 in 1 signal mode switch


  • 4 Piece Infrared light effective IR distance up to 20m.
  • 355° Endless pan range and 0° – 90° tilt range, no blind spots.
  • Max pan preset speed of 80°/s and max tilt preset speed of 80°/s
  • Pan control speed 10°~80°/s, tilt control speed 10°~80°/s
  • Up to 220 presets
  • Proportional zoom function, rotation speed can be adjusted automatically in accordance with the multiple zoom.
  • Supports park function,preset/pattern scan/patrol scan /pan scan can be auto time driven (including when in idle with power on).

Essential Series

Signal Type


2 Megapixel (1920 x 1080)


Varifocal 2.8-12mm Lens

Night Vision Type

Infra Red (IR) LED

Night Vision Distance

20 Meters (65 feet)

Ingress Protection


Country of Origin
