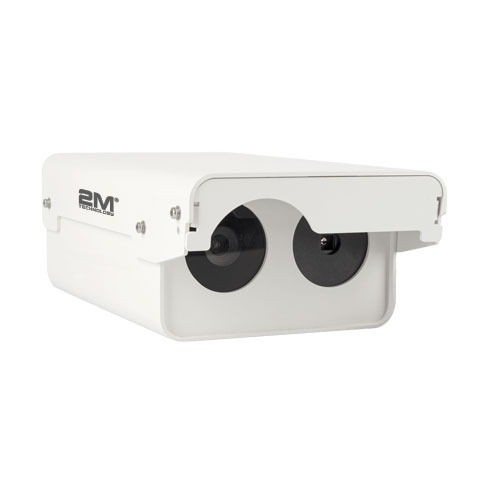

2MTHWS-60 Thermal Imaging Body Temperature Warning System

  • Artificial Intelligence (A.I.)Detects multiple faces and measures temperature simultaneously
  • Simultaneous alarm of multiple persons with high temperature
  • Supports face recognition, comparison, and real-time face capture
  • Flexible No external black body, not restricted by site
  • Early warning automatic photo capture

Note: This is a special order item. Allow 4-6 weeks for delivery.

Product Documents

2MTHWS-60 Thermal Imaging Body Temperature Warning System

  • Artificial Intelligence (A.I.)Detects multiple faces and measures temperature simultaneously
  • Simultaneous alarm of multiple persons with high temperature
  • Supports face recognition, comparison, and real-time face capture
  • Flexible No external black body, not restricted by site
  • Early warning automatic photo capture
  • Real-time recording
  • Ultra sensitive, no need to stop for measurement
  • Temperature measurement accuracy is ≤3°C
  • Works continuously 7 days x 24 hrs
  • Long distance, non-contact measurement
  • Fast flow screening

       Note: This is a special order item. Allow 4-6 weeks for delivery.

THERMAL DETECTOR
Detector TypeUncooled FPA
Spectrum Range8 - 14 µm
Resolution160×120
NETD≤60mk
THERMAL LENS
FOV40°× 30°
Focal Length3.85mm
FUNCTIONS
Measuring Range20°C ~ 50°C
Measurement Accuracy±0.3°C
Alarm Response Time<1s
Color11 kinds of color
Temperature CorrectionFull automatic temperature correction with built-in black body
Distance1~3m
ALARM FUNCTIONS
Alarm ModeBody surface mode, armpit mode
Alarm QuantityAbove 10
Intelligent FunctionFace Detection
Alarm TriggerVoice Mode
VISUAL LIGHT CAMERA
Resolution1920 x 1080
Sensor200M CMOS Starlight ultra-low illumination camera
FunctionsAuto gain white balance
ENVIRONMENTAL ADAPTABILITY
Working Temperature0°C to 40°C
Storage Temperature-40°C to 60°C
PHYSICAL CHARACTERISTICS
VoltageDC 12V
Consumption≤10W
Network PortRJ45
Weight<1.5KG
Dimension250 x 145 x 85 mm
Working EnvironmentIndoor
