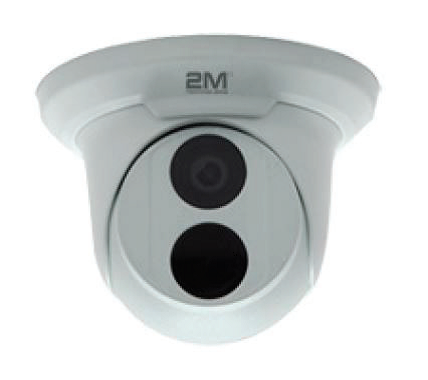

2MTIP-2MIR30-P 2MP Fixed Turret Network Camera

  • Sensor: 1/2.7?, progressive scan, 5.0megapixel, CMOS
  • Shutter: Auto/Manual, 1/6~1/100000 s
  • Power Supply: 12 V DC±25% / PoE (IEEE802.3 af)
  • IP Rating: IP67
  • D-WDR
REQUEST DEMO

The Fixed Turret Network Camera is an effective optical security camera. For example, the product has 2 megapixels and is equipped with PTZ wide-angle lenses. With built-in “Smart IR” illumination, this professional equipment is great for indoors or outdoors in areas up to 98 feet. The camera is also able to shoot in the daytime or nighttime and includes 4 KV surge protection designed for network interface. In addition, this Fixed Turret Camera comes with 2D/3D Digital Noise Reduction. Lastly, it also has a durability weatherproof rating of IP67.

Key Features

Optics

  • Day/night functionality
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Smart IR, up to 30 m (98 ft) IR distance
  • 2D/3D DNR (Digital Noise Reduction)

Compression

  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 9:16 corridor mode

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • 4 KV surge protection designed for network interface
  • IP67
Weight0.99 lbs
Series

Professional Series

Resolution

2 Megapixel (1920 x 1080)

Signal Type

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Lens

Fixed 2.8mm Lens

Features

Audio Input

Camera
Sensor1/2.7″, progressive scan, 2megapixel, CMOS
Lens2.8mm@F1.64.0mm@F1.6




DORI Distance

LensDetect(m)Observe(m)Recognize(m)Identify(m)
2.8mm4216.88.44.2
4mm6024126
Angle of view(H)112.7°86.5°
Angle of View (V)60.1°44.1°
Angle of View (O)146.5°106.4°
Adjustment anglePan: 0°~360°Tilt: 0°~90°Rotate: 0°~360°
ShutterAuto/Manual, 1/6~1/100000 s


Minimum Illumination

Colour: 0.005 Lux (F1.6, AGC ON)

0 Lux with IR

Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDRDWDR
Video
Video CompressionUltra 265,H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile


Frame Rate

Main Stream:2MP (1920×1080): Max. 30 fps;

Sub Stream:2MP (1920×1080): Max. 30 fps;

Third Stream:D1 (720×576): Max. 30 fps

HLCSupported
BLCSupported
9:16 Corridor ModeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line
motion detectionMoving within a pre-defined virtual region
RecognitionFace detection,Audio detection
Intelligent IdentificationDefocus, Scene Change
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication





Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible IntegrationONVIF(Profile S, Profile G), API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
General


Power

12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5.5W
Dimensions (Ø x H)Φ126 x 94 mm (Ø5.0” x 3.7”)
Weight0.45 kg (0.99lb)
Operating Conditions-35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress ProtectionIP67
