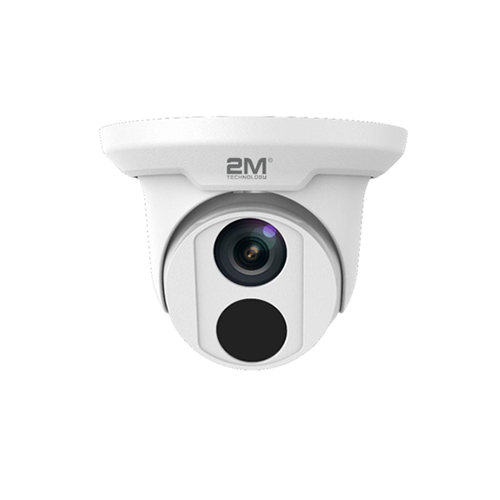

2MTIP-4KIR30U-P 8MP Network IR Fixed Turret Camera (DISCONTINUED)

  • Sensor: 1/2.5?, 8.0 megapixel, progressive scan, CMOS
  • Pan Tilt Zoom Angle: Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
  • WDR: 120dB WDR
  • Shutter: Auto/Manual, 1/6~1/100000 s
REQUEST DEMO

Note: Due to our continued product research and development, 2mtechnology Inc. reserves the right to amend all the technical specifications without prior notice.

Product Documents

The 2M Technology 2MTIP-4KIR30U-P Camera is an 8 megapixel Fixed Turret Camera with day/night capabilities. The product allows you to shoot up to 98 feet with “Smart IR” illumination. In addition, the camera’s flat faced design provides an IR anti-reflection window to increase the infrared transmittance. 2M Technology cameras use a range of features such as 120 dB WDR (Wide Dynamic Range) and 2D/3D DNR (Dynamic Noise Reduction. Lastly, the Turret has the ability to record using H.265 video compression to produce the best quality resolution.

Key Features

Optics

  • Day/night functionality
  • Smart IR , up to 30 m (98 ft) IR distance
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)
  • Day/night functionality
  • Up to 120 dB WDR (Wide Dynamic Range

Compression

  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 9:16 corridor format

Network

  • ONVIF Conformance

Structure

  • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
Weight 0.67 lbs
Dimensions 5 × 5 × 3.7 in
Series

Professional Series

Resolution

4k – 8 Megapixel (3840 x 2160)

Signal Type

Night Vision Distance

30 Meters (100 feet)

Night Vision Type

Infra Red (IR) LED

Lens

Fixed 2.8mm Lens

Features

Ultra WDR 120DB, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input

Behavior Detection

, ,

Camera
Sensor 1/2.5″, 8.0 megapixel, progressive scan, CMOS
Lens 2.8mm@F1.6 4.0mm@F1.6
Angle of view(H) 118.1° 91.6°
Angle of view(V) 64.0° 47.2°
Angle of view(O) 153.5° 112.7°




DORI Distance

Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 50.4 20.2 10.1 5.0
4.0mm 72 28.8 14.4 7.2
Adjustment Range Pan: 0°~360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°
Shutter Auto/Manual, 1/6~1/100000 s


Minimum Illumination

Colour: 0.001Lux (F1.6, AGC ON)

0 Lux with IR

Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52 dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265,H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile


Frame Rate

Main Stream:8MP (3840*2160): Max. 15 fps,

Sub Stream:1080P (1920*1080): Max. 30 fps; Third Stream:D1(720*576) : Max. 30 fps

HLC Supported
BLC Supported
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas





ROI Up to 8 areas
Motion Detection Up to 4 areas
Smart
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition Face detection
Intelligent Identification Defocus, Scene Change
Statistical Analysis People counting
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network
Protocols IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP, SSL
Compatible Integration ONVIF(Profile S), API
Interface
Network 10M/100M Base-TX Ethernet
General


Power

12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5.5W
Dimensions (Ø x H) (!) 126 x 94 mm (¢5.0″ x 3.7″)
Weight 0.33kg ( 0.67lb)
Operating Conditions -30C ~ 60C (-22°F ~ 140°F), Humidity � 95% RH(non-condensing)
Ingress Protection IP67
