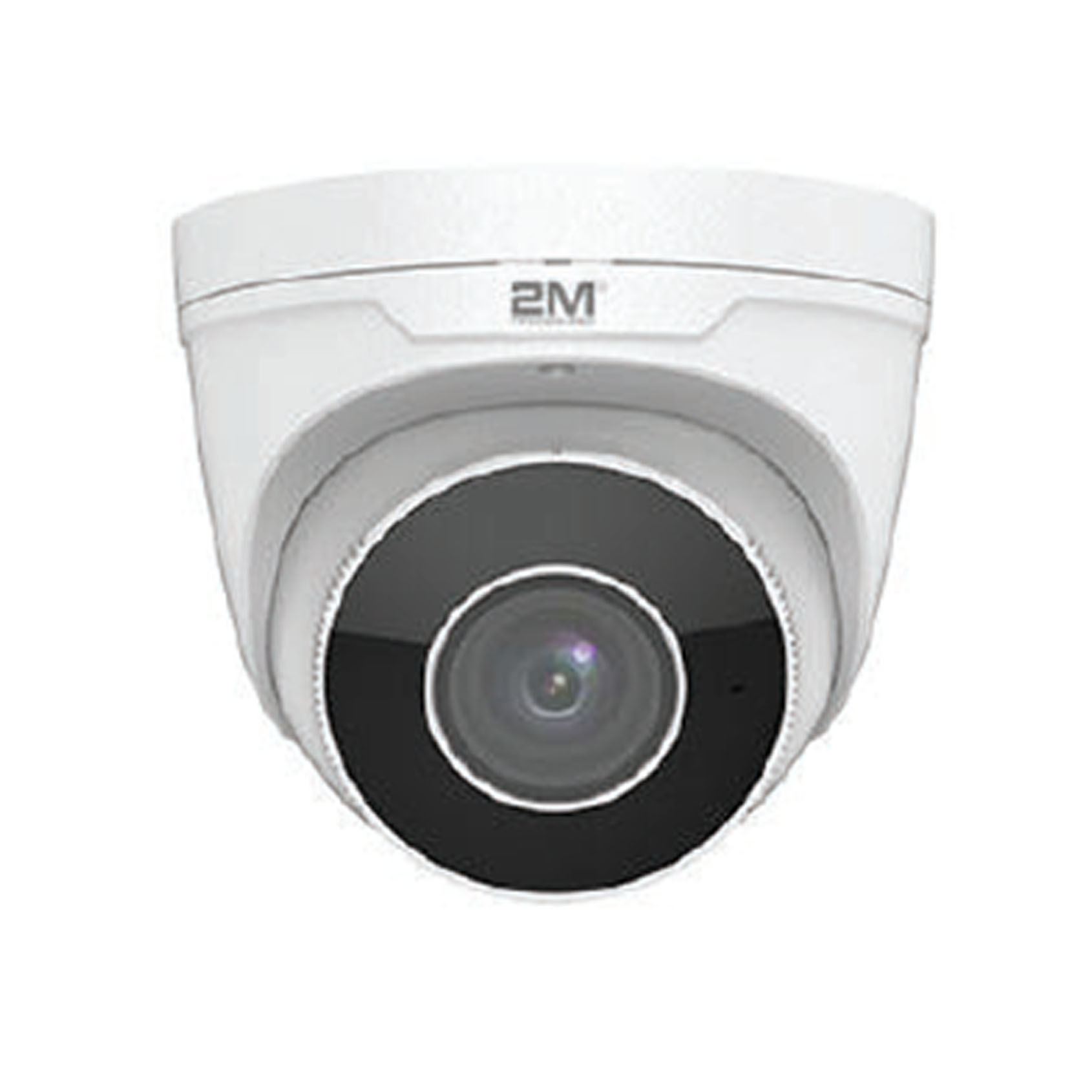

2MTIP -5MIR3027ZUASL-P 5MP WDR Starlight (Motorized) VF Eyeball Network IR Camera

REQUEST QUOTE
  • Starlight illumination
  • Day/night functionality
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Smart IR, up to 30 m (98 ft) IR distance

Product Documents

Downloads

Add to Wishlist

Add to Wishlist
Compare

Optics:

  • Starlight illumination
  • Day/night functionality
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Smart IR, up to 30 m (98 ft) IR distance
  • 2D/3D DNR (Digital Noise Reduction)
  • Built-in motorized lens for remote zoom
  • 2.7-13.5mm F1.2 Motorized lens

Compression:

  • Ultra 265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • 9:16 corridor mode
  • Network:
  • ONVIF Conformance
  • Structure:
  • Support PoE power supply
  • Wide temperature range: -40°C ~ 60°C (-40°F ~ 140°F)
  • Wide voltage range of ±25%
  • IP67
  • 3-Axis
SKU: 2MTIP -5MIR3027ZUASL-P Categories: , , , , Tags: , , , , , , , , , , , , , , ,
Weight 1.8 lbs
Dimensions 5.08 × 5.08 × 4.3 in
Series

Professional Series
Resolution

5 Megapixel (2560 x 1960)
Signal Type

Lens

Motorized 2.8-12mm Lens
Night Vision Distance

30 Meters (100 feet)
Night Vision Type

Infra Red (IR) LED
Features

D-WDR, Ultra WDR 120DB, Starlight, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input
Behavior Detection

, ,

Edge Storage

,

Ingress Protection

IP67
CAMERA
Sensor 1/2.7″, progressive scan, 5.0 megapixel, CMOS
Lens 2.7~13.5 mm, AF automatic focusing and motorized zoom lens




DORI Distance

 Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.7mm 60.8 24.3 12.2 6.1
13.5mm 303.8 121.5 60.8 30.4
Angle of View (H) 93.38° ~ 28.56°
Angle of View (V) 88°~ 16.4°
Angle of View (O) 121.4°~33.7°


Adjustment
angle

 Pan: 0°~360°
Tilt: 0°~90°
Rotate:0°~360°
Shutter Auto/Manual, shutter time: 1~1/100000 s
Minimum Illumination Colour: 0.002 Lux (F1.2, AGC ON)

0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
IR Range Smart-IR, up to 100m (328ft) IR range
S/N >52dB
WDR 120dB
Defog Digital Defog
VIDEO
Video Compression Ultra 265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile




Frame Rate

 Main Stream: 5MP(2592 x 1944): Max. 20 fps, 5MP(2592 x 1944): Max. 25 fps(WDR OFF), 4MP(2560 x 1440): Max. 30 fps, 3MP(2048x 1536): Max. 30 fps, 2MP(1920 x 1080): Max. 30 fps;

Sub Stream:2MP(1920 x 1080): Max. 30 fps; Third Stream: D1(720 x 576): Max.3 0 fps;
HLC Supported
BLC Supported
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
SMART
Behavior Detection Intrusion, cross line, motion detection
Intrusion Enter and loiter in a pre-defined virtual region
cross line Cross a pre-defined virtual line
motion detection Moving within a pre-defined virtual region
Recognition Face detection, Audio detection
Intelligent Identification Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis People counting


General Function

 Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP, Authentication, User Authentication
AUDIO
Audio Compression G.711
Suppression Supported
Sampling Rate 8KHZ
STORAGE
Edge Storage Micro SD, up to 128 GB
Network Storage ANR
NETWORK
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
Compatible Integration ONVIF(Profile S, Profile G),API
INTERFACE
Network 1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic Supported
GENERAL


Power

 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 8.16W
Dimensions (L × W × H) Ø 129 x 110 mm (Ø 5.08” x 4.3”)
Weight 0.82 kg (1.8lb)
Working Environment -40°C ~ +60°C (-40°F ~ 140°F), Humidity：10%~90% RH

(non-condensing)
Ingress Protection IP67
Reset Button Supported
