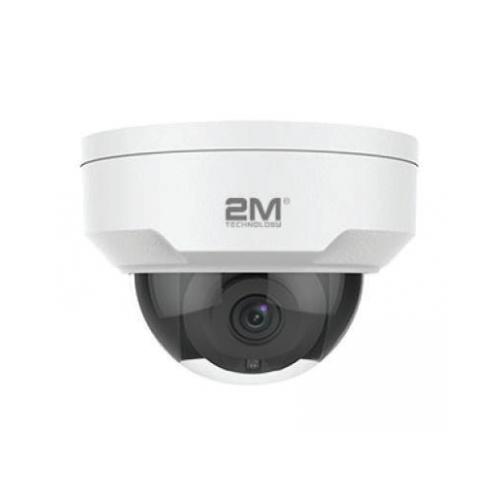

2MVIP-2MIR30UA-P 2MP WDR Vandal-Resistant Network IR Fixed Dome Camera (DISCONTINUED)
- Sensor: 1/2.7 2Megapixel progressive scan CMOS
- Shutter: Auto/Manual, 1/6~1/100000 s
- Pan Tilt Zoom Angle: Pan: 0°~360° Tilt: 0°~90° Rotate: 0°~360°
- Power Supply: 12 V DC±25% / PoE (IEEE802.3 af)
Note: Due to our continued product research and development, 2mtechnology Inc. reserves the right to amend all the technical specifications without prior notice.
Product Documents
The Vandal-resistant Network IR Fixed Dome Camera is an advanced surveillance camera. The product comes with customized OSD (On-screen-display) capabilities and ONVIF Conformance to create a better user experience. In addition, the camera includes 2D/3D DNR (Digital Noise Reduction to help remove noise from the camera signal. The product also is IK10 vandal resistant with a durability rating of IP67. Lastly, the day/night functionality helps produce better images in indoor or outdoor environments.
Key Features
Optics
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- Car-grade LEDs, brighter and uniform light compensation
- Up to 120 dB WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- Customized OSD
Network
- ONVIF Conformance
Structure
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide input voltage range of ±25%
- IK10 vandal resistant
- 3-Axis
- IP67
| Weight | 0.99 lbs |
|---|---|
| Series | Professional Series |
| Resolution | 2 Megapixel (1920 x 1080) |
| Signal Type | |
| Night Vision Distance | 30 Meters (100 feet) |
| Night Vision Type | Infra Red (IR) LED |
| Lens | Fixed 2.8mm Lens |
| Features | Ultra WDR 120DB, Audio Input |
| Audio Compression | |
| Vandal Resistant | IK10 |
| Camera | ||||||||
| Sensor | 1/2.7″, progressive scan ,2.0 megapixel, CMOS | |||||||
| Lens | 2.8 mm@F1.6 | 4.0 mm@F1.6 | ||||||
|
DORI Distance |
Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
| 2.8mm | 42 | 16.8 | 8.4 | 4.2 | ||||
| 4mm | 60 | 24 | 12 | 6 | ||||
| Angle of View (H) | 112.7° | 86.5° | ||||||
| Angle of View (V) | 60.1° | 44.1° | ||||||
| Angle of View (O) | 146.5° | 106.4° | ||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | |||||
| Shutter | Auto/Manual, 1/6~1/100000 s | |||||||
|
Minimum Illumination |
Colour: 0.005 Lux (F1.6, AGC ON)
0 Lux with IR |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | >52 dB | |||||||
| IR Range | Up to 30m (98 ft) IR range | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
|
Frame Rate |
Main Stream:2MP (1920×1080): Max. 30 fps;
Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1 (720×576): Max. 30 fps |
|||||||
| 9:16 Corridor Mode | Supported | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Smart | ||||||||
| Behavior Detection | Intrusion, cross line, motion detection | |||||||
| Intrusion | Enter and loiter in a pre-defined virtual region | |||||||
| cross line | Cross a pre-defined virtual line | |||||||
| motion detection | Moving within a pre-defined virtual region |
| Recognition | Face detection,Audio detection |
| Intelligent Identification | Defocus, Scene Change |
| Statistical Analysis | People counting |
|
General Function |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR |
| Network | |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S, Profile G), API |
| Interface | |
|
Audio I/O |
Input: impedance 35 kΩ; amplitude 2 V [p-p] |
| Output: impedance 600 Ω; amplitude 2 V [p-p] | |
| Alarm I/O | 1/ 1 |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
|
Power |
12 V DC±25%, PoE (IEEE802.3 af) |
| Power consumption: Max 5.5W | |
| Dimensions (Ø x H) | Φ108.5 x 81 mm (Ø4.28” x 3.2”) |
| Weight | 0.45 kg (0.99 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~90% RH(non-condensing) |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
