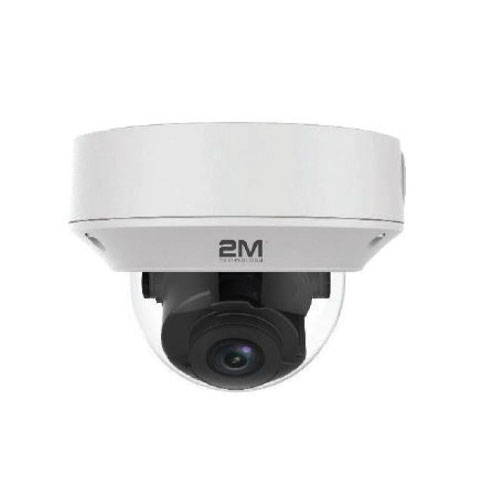

2M Technology 2MVIP-4KIR304X-C 4K Vandal-resistant Varifocal Dome IP Camera
Product Documents
Optics
Starlight illumination
Accurate and fast focusing
Smart IR, up to 200 m (656 ft) IR distance
Up to 120 dB WDR(Wide Dynamic Range)
Auto day/night functionality
Optical glass window with higher light transmittance
IR anti-reflection window to increase the infrared transmittance
Compression
Ultra 265, H.265, H.264, MJPEG
Embedded smart algorithm
Triple Streams
ROI (Region of Interest)
9:16 corridor format
Customized OSD
Network
ONVIF Conformance
Downloads
| Weight | 2 lbs |
|---|---|
| Series | Corporate Series |
| Resolution | 4k – 8 Megapixel (3840 x 2160) |
| Signal Type | |
| Night Vision Distance | 30 Meters (100 feet) |
| Lens | 4x Optical Zoom |
| Night Vision Type | Infra Red (IR) LED |
| Camera | |||||||
| Sensor | 1/2.5″, progressive scan ,8.0 megapixel, CMOS | ||||||
| Lens | 2.8~12 mm@F1.6 | ||||||
|
DORI Distance |
Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||
| 2.8mm | 77.8 | 31.1 | 15.6 | 7.8 | |||
| 12mm | 333.3 | 133.3 | 66.7 | 33.3 | |||
| Angle of View (H) | 79.6°~34.9° | ||||||
| Angle of View (V) | 64°~16.6° | ||||||
| Angle of View (O) | 1.3.5°~42.9° | ||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~80° | Rotate: 0°~360° | ||||
| Shutter | Auto/Manual, 1~1/100000s | ||||||
| Minimum Illumination | Color: 0.02 Lux (F1.6, AGC ON)
0Lux with IR |
||||||
| IR Range | Smart-IR, up to 30m (98 ft) IR range | ||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >55dB | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | Ultra 265,H.265,H.264,MJPEG | ||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
|
Frame Rate |
Main Stream:8MP (3840×2160): Max. 30 fps, 2MP (1920×1080): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps;
Third Stream:D1 (720×576): Max. 30 fps |
||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| 9:16 Corridor Mode | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Smart | |
| Behavior Detection | Intrusion, cross line, motion detection |
| Intrusion | Enter and loiter in a pre-defined virtual region |
| cross line | Cross a pre-defined virtual line |
| motion detection | Moving within a pre-defined virtual region |
| Recognition | Face detection,Audio detection |
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving |
| Statistical Analysis | People counting |
|
General Function |
Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR |
| Network | |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S, Profile G), API |
| Interface | |
|
Audio I/O |
Audio cable |
| Input: impedance 35 kO; amplitude 2 V [p-p] | |
| Output: impedance 600 O; amplitude 2 V [p-p] | |
| Alarm I/O | 1/ 1 |
| Network | 1 RJ45, 10M/100M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 O; amplitude 1 V [p-p] |
| Power Output | DC12V Power Output With PoE |
| General | |
|
Power |
DC12V±25%,PoE (IEEE802.3 af) |
| Power consumption: Max.8.7 W | |
| Dimensions (¢ x H) | (1148 x 111.3 mm (¢5.8″ x 4.4″} |
| Weight | 0.92 kg (2.0 lb) |
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~95% RH(non-condensing) |
| Ingress Protection | IP67 |
| Vandal Resistant | IK10 |
| Reset Button | Supported |
