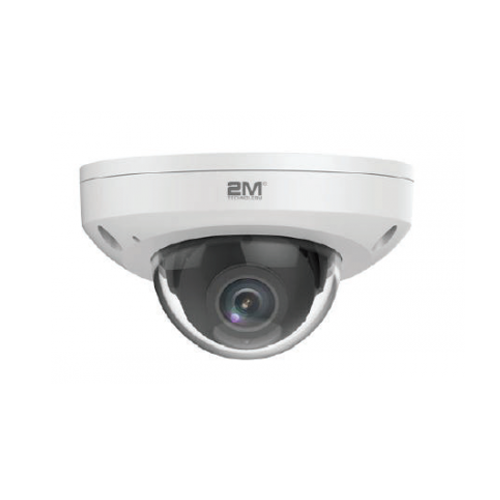

2MVIP-4MIR15UA-P 4MP Vandal-Resistant IR Fixed Mini Dome Camera (DISCONTINUED)
- Smart IR, up to 15 m (49 ft) IR distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- Ultra 265, H.264, MJPEG
- Built-in microphone
- IK10 vandal resistant
- IP66
Product Documents
The Vandal-resistant IR Fixed Dome Camera is a professional surveillance camera with a built-in microphone. This product has 4 megapixels and includes up to 120 dB Optical WDR (Wide Dynamic Range). Although this camera is smaller in size weighing only about 0.55 lbs., it comes fully loaded with 2D/3D DNR (Digital Noise Reduction). The dome camera also comes with day/night functionality with Smart IR capability in areas up to 49 feet.
Key Features
Optics
- Day/night functionality
- Smart IR, up to 15 m (49 ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Up to 120 dB Optical WDR(Wide Dynamic Range)
Compression
- Ultra 265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
Network
- ONVIF Conformance
- Structure
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide voltage range of ±25%
- Built-in microphone
- IK10 vandal resistant
- IP66
- 3-Axis
| Weight | 0.55 lbs |
|---|---|
| Series | Professional Series |
| Resolution | 4 Megapixel (2592 x 1520) |
| Signal Type | |
| Night Vision Type | Infra Red (IR) LED |
| Lens | Fixed 2.8mm Lens |
| Features | Ultra WDR 120DB, Highlight Compensation, Motion Detection, Privacy Mask, Region of Interest ROI, Audio Input, 2 Way Audio |
| Night Vision Distance | 15 meters (49 Feet) |
| Camera | ||||||||
| Sensor | 1/3″, progressive scan, 4.0 megapixel, CMOS | |||||||
| Lens | 2.8mm@F2.0 | 3.6 mm@F2.0 | ||||||
|
DORI Distance |
Lens | Detect(m) | Observe(m ) | Recognize(m) | Identify(m) | |||
| 2.8mm | 63 | 25.2 | 12.6 | 6.3 | ||||
| 3.6mm | 81 | 32.4 | 16.2 | 8.1 | ||||
| Angle of View (H) | 104.4° | 76.8° | ||||||
| Angle of View (V) | 54.4° | 44.1° | ||||||
| Angle of View (O) | 135.7° | 99.8° | ||||||
| Adjustment angle | Pan: 0°~90° | Tilt: 0°~65° | Rotate: 0°~360° | |||||
| Shutter | Auto/Manual, 1~1/100000 s | |||||||
|
Minimum Illumination |
Color: 0.02 Lux (F2.0, AGC ON)
0 Lux with IR |
|||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | ≥55 dB | |||||||
| IR Range | Up to 15m (49 ft) IR range | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.264,MJPEG | |||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||
|
Frame Rate |
Main Stream: 4MP (2592×1520): Max. 20 fps,4MP (2560×1440): Max. 25 fps,3MP (2048×1520): Max. 30 fps;
Sub Stream: 2MP (1920×1080): Max. 30 fps; Third Stream: D1(720×576) : Max. 30fps |
|||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| 9:16 Corridor Mode | Supported | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Smart | |
| Behavior Detection | Intrusion, cross line, motion detection |
| Intrusion | Enter and loiter in a pre-defined virtual region |
| cross line | Cross a pre-defined virtual line |
| motion detection | Moving within a pre-defined virtual region |
| Recognition | Face detection, Audio detection |
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving |
| Statistical Analysis | People counting |
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Audio | |
| Audio Compression | G.711 |
| Suppression | Supported |
| Suppression | Supported |
| Sampling Rate | 8 KHZ |
| Storage | |
| Edge Storage | Micro SD, Up to 128 GB |
| Network Storage | ANR |
| Network | |
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Compatible Integration | ONVIF(Profile S, Profile G), API |
| Interface | |
|
Audio I/O |
Audio cable |
| Input: impedance 35 kΩ; amplitude 2 V [p-p] | |
| Output: impedance 600 Ω; amplitude 2 V *p-p] | |
| Built-in Mic | Supported |
| Network | 1 RJ45 10M/100M Base-TX Ethernet |
| General | |
|
Power |
12 V DC±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 4.5W | |
| Dimensions (Ø x H) | Φ110 x 61 mm (Ø4.3” x 2.4”) |
| Weight | 0.25 kg (0.55 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~95% RH(non-condensing) |
| Ingress Protection | IP66 |
