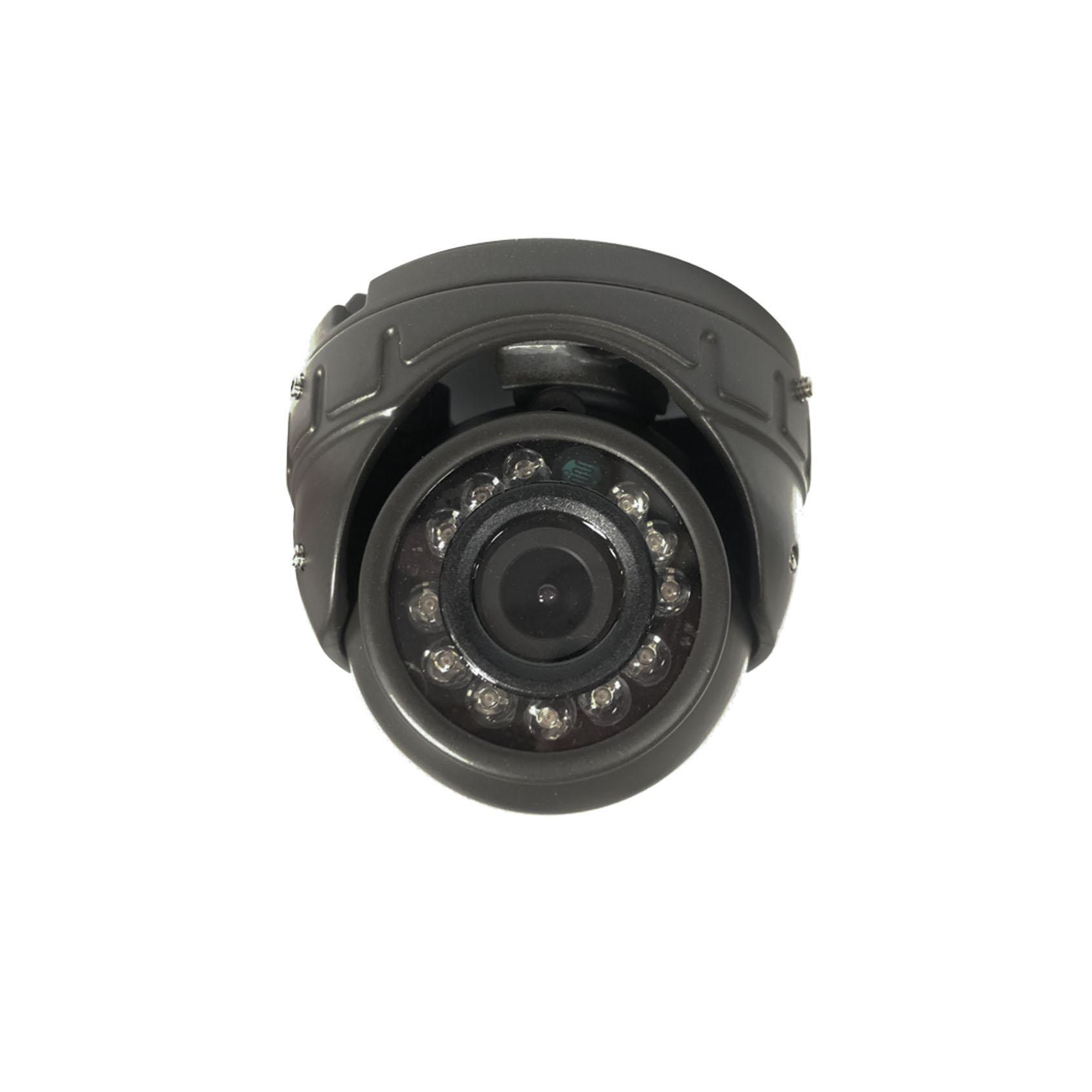

2MVT-2MIR10 2MP AHD Mini Camera

  • 1/2.9″ 2.1 Mega-pixel Sony CMOS
  • Supports four video signal output (AHD/TVI/CVI/CVBS), default video output is AHD
  • 12PCs IR LEDs, IR Range: 10m (32.8ft) (indoor)
  • 6mm IR Lens

Product Documents

Features:

  • 1/2.9″ 2.1 Mega-pixel Sony CMOS
  • Supports four video signal output (AHD/TVI/CVI/CVBS), default video output is AHD
  • Support Dip switch for signal changes
  • 12PCs IR LEDs, IR Range: 10m (32.8ft) (indoor)
  • 3.6mm IR Lens
  • Defog, DWDR, 3DNR, DSS, UTC



Weight6.35 lbs
Dimensions60.5 × 60.5 × 56.2 in
Signal Type

Resolution

2 Megapixel (1920 x 1080)

Ingress Protection

IP65

Night Vision Distance

10 meters (32 Feet)

SPECIFICATIONS
IP RatingIP65
FilterRemovable IR Cut Filter
Image Sensor1/2.9”Sony 2.1Mega-pixel Sony CMOS
Pixels1920(H)*1080(V)
Horizontal Resolution1080P
Minimum Lux0 Lux (12 Pieces IR LED ON)
Vertical FrequencyNTSC: 60Hz PAL:50Hz
Scanning SystemProgressive
S/N Ratio≥52dB
Electronic ShutterNTSC:1/60-1/100,000S PAL:1/50-1/100,000S
Lens3.6mm IR Lens
White BalanceATW
OSDYES
Back Light Compen- sationAUTO
AUTO Gain ControlON
DefogOFF/ON
DNROFF/ON
WDROFF/ON
Day & NightAUTO/Color/BW/Ext
Available IR Distance10M (32.8ft)
Gamma0.45
Video OutputHD-AHD ( TVI / CVI / CVBS)
Power SupplyDC12V±10%
Current consumption280mA (MAX)
DimensionΦ60.5 x 56.2 (mm) (Φ2.38″ x 2.22″)
Weight180g (6.35oz)
Storage Temperature-30°C+60°C
Operating Temperature-30°C+40°C
