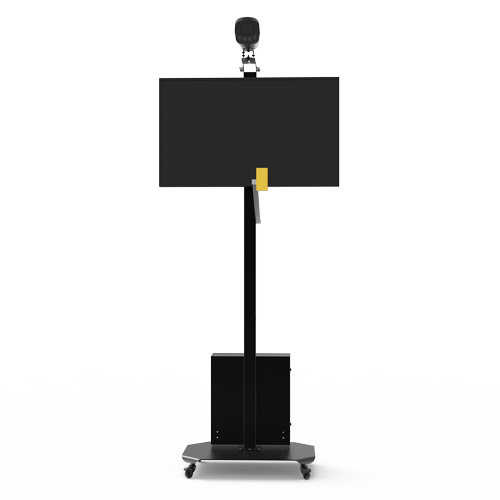

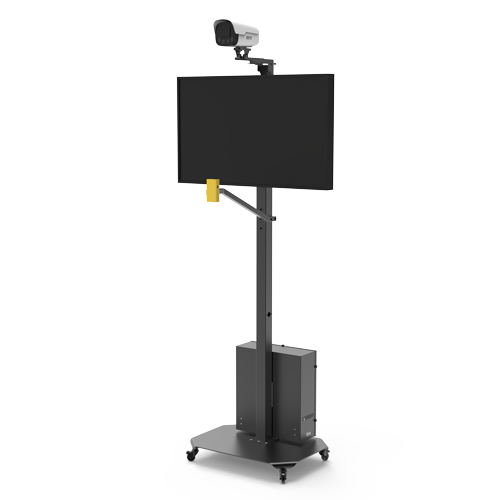

2MWTK-2MIR20 Wrist Temperature Measurement System Kit with Face Recognition

  • Automatic temperature measurement
  • Accurate temperature measurement
  • Real-time alarm of people with fever
  • Face Snapshot during temperature measurement
  • Alarm for abnormal body temperature, also can view the facial snapshot and temperature

Product Documents

2MWTK-2MIR20 can realize the function of rapid temperature screening in airports, ports, high-speed railway stations, passenger transport stations, government buildings, financial institutions, hospitals, shopping malls, high-end office buildings, large industrial parks and other places with large staff turnover to effectively avoid cross-infection.

Features:

  • Automatic temperature measurement, the demo video is played continuously for 24 hours
  • Accurate temperature measurement
  • Support voice linkage, real-time alarm of people with fever
  • Real-time snapshot of human face during temperature measurement
  • Support no mask reminder
  • Support real-time statistics of total number of temperature measurement, normal and abnormal number of people
  • Support to export temperature measurement data report
  • The APP can receive the alarm of abnormal body temperature, also can view the facial snapshot and temperature
  • Reduce labor costs
Weight45 lbs
CAPTURE MODULE
Resolution1920*1080
Lens4.0mm
Angle of View (H)86.5°
WDR120dB
Audio1*output
TEMPERATURE MEASUREMENT MODULE
Measurement Range30°C ~ 45°C
Measuring Distance1cm ~ 3cm
Measurement Deviation≤0.3°C
Measurement Accuracy0.1°C
DISPLAY MODULE
Screen Size31.55 inch
Screen Resolution1920*1080
InputVGA ×1, HDMI×1, DVI×1
VESA100 x 100 (mm)
Wall-mounted Thread4-M4 Threaded hole
Dimension (W×H×D)725.2 x 425.8 x 49.5(mm) (28.55″×16.76″×1.95″)
Package(W×H×D)895mm × 525mm × 125mm(35.24″×20.67″×4.92″)
Power SupplyAC 100~240V, 50/60Hz
Consumption<45 W(on), <0.5 W(Standby)
RECORDING MODULE
User InterfaceTemperature Measurement UI
Advertising DisplaySupport picture and video Ads
CapacityUp to 10TB for each disk
Dimensions (W×D×H)260mm × 240mm × 46mm (10.2″×9.4″×1.8″)
Power Supply48V DC,
Consumption≤10 W (without HDD)
BRACKET MODULE
Wall-hanging Monitor100mm × 100mm (ΦM4); 200mm × 240mm (ΦM8)
Package (W×H×D)1490mm × 510mm × 180mm
WeightNet Weight:15Kg Gross Weight:19Kg
FUNCTION
AlarmSupport real-time alarm of abnormal body temperature
SnapshotReal-time snapshot of face with temperature measurement
Temperature DisplaySupport real-time temperature display
People CountingReal-time statistics of the number of normal & abnormal body temp
Mask DetectionSupport no mask reminder
APP LinkageSupport APP to receive abnormal temperature alarm
Export DataSupport temperature measurement data report export
GENERAL
Power Consumption≤180W
Working Environment15°C ~ 30°C
