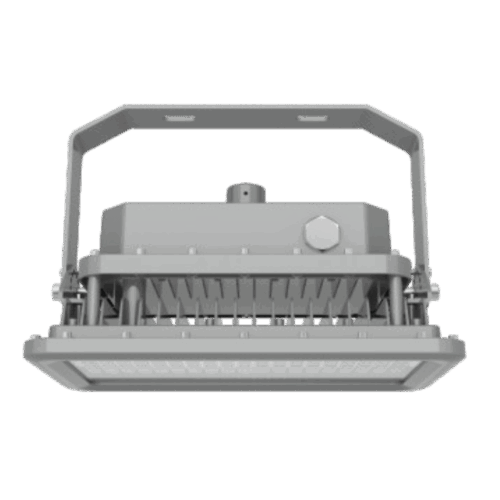

2MEXL-FA3 Explosion Proof LED Floodlight (150–200W)

SKU: 2MEXL-FA3
  • Available Power Ratings: 150W / 180W / 200W
  • Lumen Output: 21,000 Lm / 25,200 Lm / 28,000 Lm
  • Luminous Efficacy: 140 Lm/W
  • Protection Ratings: IP66 / IP67 / IK08 (glass cover) / IK10 (wire guard)
  • Mounting Options: Ceiling, Wall, Hook, Pole, Stanchion

Features

High-Powered Lighting for Dangerous Industrial Zones

The 2MEXL-FA3 Explosion-Proof LED Floodlight (150–200W) is engineered for use in heavy-duty hazardous environments where flammable gases, vapors, or combustible dusts may be present. Suitable for Class I, Division 2 (CID2) and Zone 2/21/22, this floodlight provides high-output illumination for large industrial facilities such as refineries, offshore platforms, and storage depots.

Built with a die-cast aluminum housing, tempered glass and PC lens, and stainless steel hardware, it’s rated IP66/IP67 and tested for IK08 (glass) or IK10 (with wire guard) impact protection. Its robust construction ensures long-lasting performance in demanding indoor and outdoor environments.

Extreme Efficiency and High Lumen Output

Available in 150W, 180W, and 200W, this fixture delivers up to 28,000 lumens with 140 lm/W luminous efficacy—ideal for illuminating wide hazardous areas from height or distance.

Choose from beam angles of 40°, 60°, 90°, or 120° to focus or distribute light based on your site requirements. The fixture offers CCT options from 3000K to 6500K and a CRI >70 for clear and reliable visibility across industrial tasks.

Optional 0–10V dimming enables energy-saving light control.

Emergency Functionality (Zone Rated)

While the CID2 model includes no emergency backup, the Zone 2/21/22 version offers an optional 3-hour emergency function to maintain critical lighting during power loss in classified areas.

With an ambient temperature range from -40°C to +55°C (-40°F to +131°F) and L70 lifespan of over 78,000 hours, this floodlight is built for round-the-clock use in harsh conditions.

Flexible Mounting and Hazard-Safe Cabling

Multiple mounting options—ceiling, wall, hook, pole, and stanchion—make installation easy in various structural setups.

Cable Entry Options:

  • CID2: Side (3/4″ NPT standard; optional M20, M25, 1/2″ NPT), Top (3/4″ NPT standard)
  • Zone 2/21/22: Side (M20 standard; optional M25, 1/2″ NPT, 3/4″ NPT), Top (3/4″ NPT standard)

An optional visor is also available to reduce glare and direct light more precisely.

Key Specifications:

  • Wattage Options: 150W / 180W / 200W
  • Lumen Output: 21,000 / 25,200 / 28,000 lumens
  • Efficacy: 140 lm/W
  • Color Temperature: 3000K – 6500K
  • CRI: >70
  • Beam Angles: 40°, 60°, 90°, 120°
  • Dimming: 0–10V optional
  • Emergency Backup: Optional for Zone 2/21/22 (3 hours)
  • Housing: Die-cast aluminum
  • Lens: Tempered glass & polycarbonate
  • Protection: IP66 / IP67 / IK08 / IK10
  • Ambient Temperature: -40°C to +55°C
  • Mounting: Ceiling, Wall, Hook, Pole, Stanchion
  • Cable Entries: CID2 and Zone rated variants with NPT/M-thread options
  • Lumen Maintenance: L70 >78,000 hours @55°C
  • Warranty: 5-Year Standard Warranty

Applications:

  • Oil and gas refineries
  • Chemical manufacturing plants
  • Offshore drilling platforms
  • Industrial warehouses
  • Hazardous material storage yards
  • Mining and processing facilities

Specifications

Light Type

LED

Hazardous Area Type

Class I, Div 2, Class II, Div 1, Class II, Div 2, Zone 2, Zone 21, Zone 22

Light Power

150W, 180W, 200W

Lumen Output

21,000 Lm, 25,200 Lm, 28,000 Lm

Luminous Efficacy

140 Lm/W

Ingress Protection

IP66, IP67

Vandal Resistant

IK10, IK08

Country of Origin

China
