Custom Explosion Proof Cisco Meraki Housings — ATEX & IECEx Certified

Transform any Cisco Meraki security camera into a safe monitoring solution for hazardous zones with 2M Technology’s custom-made explosion proof GeoVision housings.

various styles of explosion-proof cameras from 2m technology

Eliminate Explosion Hazards from Hazardous Areas

Hazardous areas have an increased risk of explosions due to the presence of flammable or combustible materials. Extreme caution is paramount when using electrical equipment, such as security cameras, as even minor sparks can trigger catastrophic explosions.

Explosion-proof housings are protective casings for CCTV cameras, engineered to contain any sparks and prevent the ignition of explosions. These enclosures make it possible to monitor operations in hazardous zones while protecting assets, personnel, and the surrounding community from explosion risks.

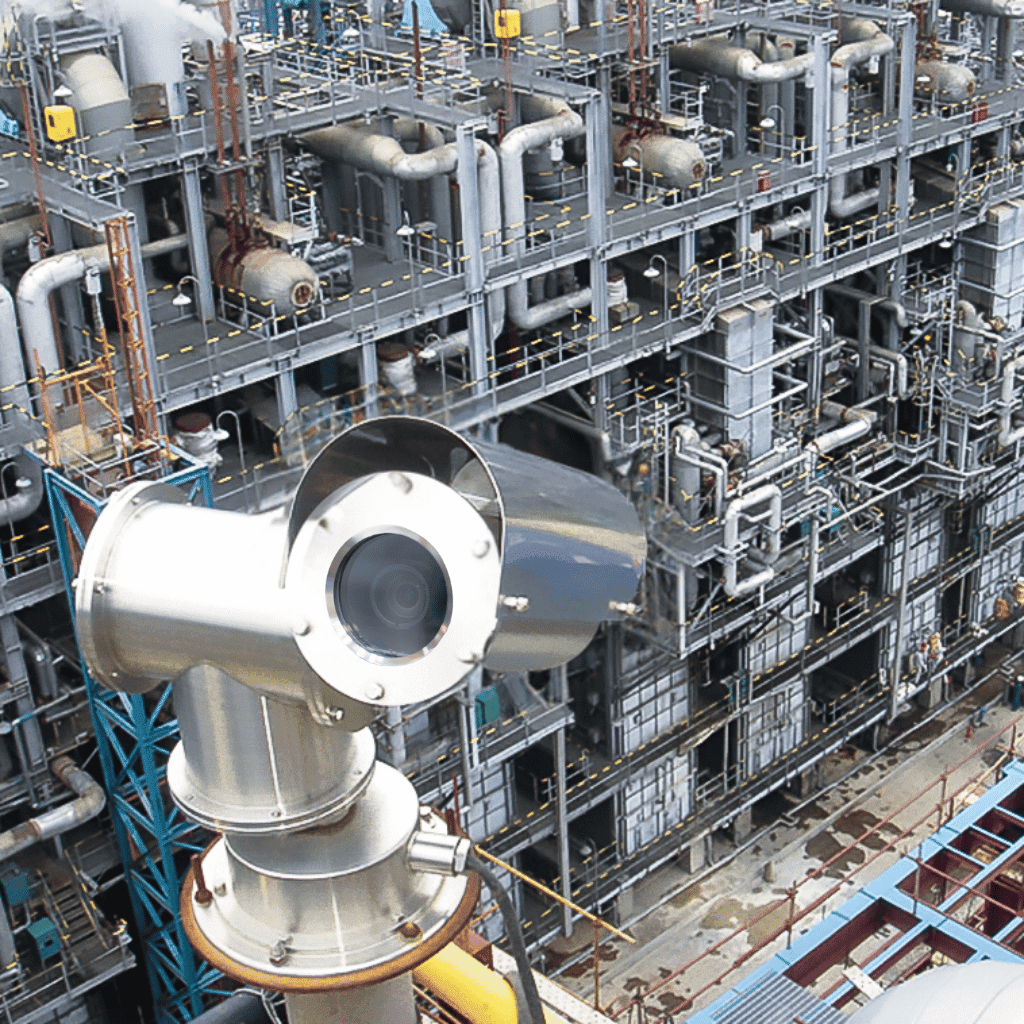

2M Technology explosion-proof camera installed on a pole mount in front of an industrial site
pole mounted explosion proof camera overlooking industrial area, explosion proof geovision housing

No Compromises on Security or Safety

The explosion-proof options for video surveillance that exist in the current market are limited. It’s unlikely that you’ll find an off-the-shelf explosion-proof camera that includes all the monitoring features you need.

At 2M Technology, there’s no need to compromise on features or safety. We can design and manufacture a custom explosion proof Cisco Meraki housing for any camera model, allowing you to safely use your preferred camera in hazardous locations.

The 4 Step Process

Custom Explosion Proof Cisco Meraki Housings, Made-to-Order

It only takes four simple steps to get a custom explosion proof Cisco Meraki housing for hazardous zones. All you have to do is provide us with the camera information, and our experts will take it from there. We'll manage the entire customization process, ensuring that every detail meets your specifications and complies with safety regulations.

Consultation

Client sends us a sample of the camera or a rough drawing with the necessary technical specifications.

Design

Our team of engineers design the housing in accordance to ATEX or UL standards.

Production

Once the finalized design is approved by the client, it is sent to production; the lead time is confirmed in your quote.

Delivery

After undergoing a strict quality inspection, the finished housing is packed and shipped to the client.

Supported Cisco Meraki Camera Models

Our team at 2M Technology can design and manufacture custom explosion proof Cisco Meraki housings for any of their cloud-managed smart cameras. This gives you the ability to monitor hazardous sites safely, leveraging the advanced features offered by Cisco Meraki.

Cisco Meraki MV13 Mini Dome Camera Cisco Meraki MV13M Mini Dome Camera Cisco Meraki MV22 Dome Camera Cisco Meraki MV22X Dome Camera Cisco Meraki MV23M Dome Camera Cisco Meraki MV23X Dome Camera Cisco Meraki MV63 Mini Dome Camera Cisco Meraki MV63M Mini Dome Camera Cisco Meraki MV63X Mini Dome Camera Cisco Meraki MV72 Dome Camera Cisco Meraki MV72X Dome Camera Cisco Meraki MV73M Dome Camera Cisco Meraki MV73X Dome Camera
Model MV13 MV13M MV22 MV22X MV23M MV23X MV63 MV63M MV63X* MV72 MV72X MV73M MV73X
Type Mini Dome Mini Dome Dome Dome Dome Dome Mini Dome Mini Dome Mini Dome Dome Dome Dome Dome
Environment Indoor Indoor Indoor Indoor Indoor Indoor Outdoor Outdoor Outdoor Outdoor Outdoor Outdoor Outdoor
Resolution 4K / 8.4MP 4K / 8.4MP 4MP 4MP 4K / 8.4MP 4K / 8.4MP 4K / 8.4MP 4K / 8.4MP 4K / 8.4MP 4MP 4MP 4K / 8.4MP 4K / 8.4MP
Lens Type Fixed Fixed Varifocal Varifocal Varifocal Varifocal Fixed Fixed Fixed Varifocal Varifocal Varifocal Varifocal
Focal Length 3.3 mm 3.3 mm 3–9 mm 3–9 mm 3–9 mm 3–9 mm 3.3 mm 3.3 mm 3.3 mm 3–9 mm 3–9 mm 3–9 mm 3–9 mm
Optical Zoom — — 3x 3x 3x 3x — — — 3x 3x 3x 3x
Field of View H: 101.3°
V: 54.4°
D: 119.7°
H: 101.3°
V: 54.4°
D: 119.7°
H: 36°–112°
V: 20°–57°
D: 42°–138°
H: 36°–112°
V: 20°–57°
D: 42°–138°
H: 36°–112°
V: 20°–57°
D: 42°–138°
H: 36°–112°
V: 20°–57°
D: 42°–138°
H: 101.3°
V: 54.4°
D: 119.7°
H: 101.3°
V: 54.4°
D: 119.7°
H: 101.3°
V: 54.4°
D: 119.7°
H: 36°–112°
V: 20°–57°
D: 42°–138°
H: 36°–112°
V: 20°–57°
D: 42°–138°
H: 36°–112°
V: 20°–57°
D: 42°–138°
H: 36°–112°
V: 20°–57°
D: 42°–138°
IR Range 15 m (49 ft) 15 m (49 ft) 30 m (98 ft) 30 m (98 ft) 30 m (98 ft) 30 m (98 ft) 20 m (66 ft) 20 m (66 ft) 20 m (66 ft) 30 m (98 ft) 30 m (98 ft) 30 m (98 ft) 30 m (98 ft)
Storage 256 GB 512 GB 256 GB 512 GB 512 GB 1 TB 256 GB 512 GB 1 TB 256 GB 512 GB 512 GB 1 TB
Audio ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Built-In Microphone 3 3 1 1 4 4 3 3 3 1 1 4 4
Impact Rating — — — — — — IK10+ IK10+ IK10+ IK10+ IK10+ IK10+ IK10+
IP Rating — — — — — — IP67 IP67 IP67 IP67 IP67 IP67 IP67
Cisco Meraki MV52 Bullet Camera Cisco Meraki MV53X Bullet Camera Cisco Meraki MV32 Fisheye Camera Cisco Meraki MV33 Fisheye Camera Cisco Meraki MV33M Fisheye Camera Cisco Meraki MV93 Fisheye Camera Cisco Meraki MV93M Fisheye Camera Cisco Meraki MV93X Fisheye Camera
Model MV52 MV53X* MV32 MV33* MV33M MV93 MV93M MV93X
Type Bullet Bullet Fisheye Fisheye Fisheye Fisheye Fisheye Fisheye
Environment Outdoor Outdoor Indoor Indoor Indoor Outdoor Outdoor Outdoor
Resolution 4K / 8MP 4K / 8.4MP 4K / 8MP 12.4MP 12.4MP 12.4MP 12.4MP 12.4MP
Lens Type Varifocal Varifocal Fixed Fixed Fixed Fixed Fixed Fixed
Focal Length 12–40 mm 12.5–38 mm 1.19 mm 1.6 mm 1.6 mm 1.6 mm 1.6 mm 1.6 mm
Optical Zoom 3x 3x — — — — — —
Field of View H: 12°–37°
V: 7°–22°
H: 12°–37°
V: 7°–22°
H: 180°
V: 180°
T: 360°
H: 180°
V: 180°
T: 360°
H: 180°
V: 180°
T: 360°
H: 180°
V: 180°
T: 360°
H: 180°
V: 180°
T: 360°
H: 180°
V: 180°
T: 360°
IR Range 50 m (164 ft) 50 m (164 ft) — — — 20 m (66 ft) 20 m (66 ft) 20 m (66 ft)
Storage 1 TB 1 TB 256 GB 256 GB 512 GB 256 GB 512 GB 1 TB
Audio ✗ ✗ ✓ ✓ ✓ ✓ ✓ ✓
Built-In Microphone ✗ ✗ 1 3 3 3 3 3
Impact Rating IK10+ IK10+ — — — IK10+ IK10+ IK10+
IP Rating IP67 IP67 — — — IP67 IP67 IP67

*Indicates that the explosion proof Cisco Meraki housing design for this model has already been created and is ready to be sent to production upon ordering

Certification Path for Meraki in Hazardous Areas

Cisco Meraki’s MV line has no factory explosion-proof variant — hazardous-area deployment means pairing the camera with an enclosure certified to UL 1203 (UL) for NEC Class I/II Division 1–2 locations per NFPA 70 (the National Electrical Code), or IECEx/ATEX zones for international sites. 2M’s housings preserve the MV’s cloud management and analytics while the flame-path enclosure carries the certification the site’s electrical classification demands.

Real Project Example

Offshore Seadrilling: Custom Explosion-Proof Cisco Meraki Camera Housing

Case study: 2M Technology's custom explosion-proof housing for a Cisco Meraki MV53X camera monitoring an offshore seadrilling operation.

Experience You Can Trust

When you choose 2M Technology for your explosion proof Cisco Meraki housing, you're choosing reliable and effective security solutions, backed by years of experience and expertise in the field.

Security Expertise

With 19 years of experience and expertise, you can trust our team to design a security solution tailored to your needs

Quality Assurance

Each housing we create must meet strict quality standards, guaranteeing reliability and durability for years to come

Customer Satisfaction

Your satisfaction is our priority, which is why we provide 2-year warranty on purchases and technical support

Globally Certified

Deploy your camera with peace of mind. All housings are certified and safe to use in hazardous-rated areas.

Get a Custom Explosion Proof Cisco Meraki Housing Design

Tell us your industry, hazardous area classification, and camera model — we'll send a detailed quote within 24 hours.
