Food X-Ray Inspection Scanners
The Ultimate Solution for Food Quality, Safety, & Compliance
Foreign material contamination can happen at any stage of food production, leading to recalls, lawsuits, and damaged reputations. Even major food retailers such as Costco, Walmart, Sam’s Club, Target, Kroger, Tom Thumb, etc. are not exempt from these issues and are actively taking steps to prevent foreign objects from landing into their products. With 2M Technology’s line of food X-ray inspection scanners, you can significantly reduce the risk of contaminated food, beverages, and ready-to-eat packaged goods making their way to customers and ensure that every product meets the highest standards of food quality, safety, and compliance.
Key Benefits of Food X-Ray Inspection Scanners
Non-Intrusive Inspection
Our food X-ray inspection scanners utilize advanced imaging technology to peer deep into every product, identifying even the tiniest contaminants that the human eye or traditional methods might miss. In just a few seconds, you can ensure that your products meet industry standards for quality and safety before they even reach the shelves.
Prevent Losses & Wasted Time
Investing in food X-ray inspection scanners is an investment in the future of your business. Detecting foreign material contaminants early on means fewer recalls, fewer customer complaints, and fewer damages to your business. In addition to saving you from financial losses, conducting food inspections with X-ray scanners saves you time by automating the quality check process.
Stay Ahead of the Competition
In an industry where it’s difficult to stand out, adopting the use of food X-ray inspection scanners can help your business gain a competitive edge by solidifying your company as one that prioritizes giving customers the very best in terms of food safety and quality.
Foreign Material Contaminants Detected
- Metal — Nuts, bolts, screws, steel wool, wire
- Glass — Bottles, jars, light fixtures, gauge covers
- Plastic — Packaging materials, accessories
- Bones — Errors in processing, product segregation
- Wood — Fields, pallets, boxes, buildings
- Stones — Stones from tread of wheels or shoes

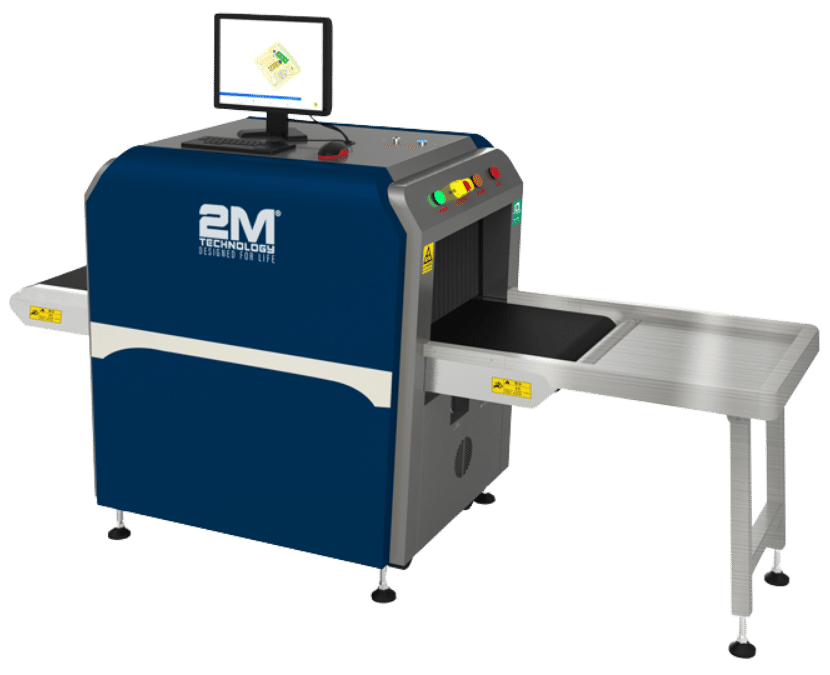

Food Inspection X-Ray Scanner Model Comparison
| Feature | 2MX-5030 | 2MX-5030H |
|---|---|---|
| X-Ray Generator | 140 kV | 160 kV |
| Steel Penetration Depth | 32 mm | 38 mm |
| Best for | Inspecting boxes and goods prior to packaging | Inspecting goods in aluminum tins and foil packaging |
FDA & HACCP Compliance for Food X-Ray Inspection
Food manufacturers operating under FDA 21 CFR Part 110 (Current Good Manufacturing Practice) and FSMA regulations must implement science-based preventive controls for physical hazards. X-ray inspection is a validated Critical Control Point (CCP) under HACCP plans for detecting dense foreign materials — including metal, bone, glass, stone, and high-density plastics — that metal detectors alone cannot find.
2M Technology food x-ray inspection scanner systems support compliance with:
- FDA FSMA Preventive Controls Rule (21 CFR Part 117) — Documented hazard analysis with x-ray as a validated CCP for foreign material control in human food
- USDA FSIS HACCP (9 CFR Part 417) — Required for federally inspected meat and poultry plants; x-ray inspection satisfies the physical hazard monitoring requirement
- SQF Code (Edition 9), Module 11 — Requires documented foreign material detection procedures; x-ray inspection qualifies as an approved detection method
- BRC Global Standard (Issue 9), Clause 4.10 — Requires effective foreign body detection including x-ray for high-risk food categories
- IFS Food Standard (Version 7) — Requires validation records for all foreign material detection equipment with documented test frequencies
Each 2M x-ray system includes auto-reject verification, digital image logging, and audit trail documentation compatible with FDA inspection requirements. Systems are validated at installation with NIST-traceable test pieces at the detection threshold specified in your HACCP plan.
Resources: FDA FSMA Preventive Controls Rule | USDA FSIS HACCP Guidance
Case Study: Bone Fragment Detection at DFW Poultry Processor
- Client: Mid-size poultry processing facility, Grand Prairie, TX
- Product line: Boneless chicken breast — tray-pack and bulk IQF
- Problem: Existing metal detector system missed bone fragments below 3mm. Facility received two FDA warning letters in 18 months related to physical hazard CCP documentation gaps and an inability to demonstrate validated detection at threshold.
- Solution: 2M Technology installed two inline x-ray inspection systems on the deboning line, calibrated to detect bone fragments at 1.5mm in a fresh chicken breast product profile. The installation included conveyor-mounted auto-reject, image archive logging, and HACCP documentation package.
- Outcome: Zero bone-related customer complaints in the 12 months post-installation. Detection sensitivity validated at 1.5mm using NIST-traceable ceramic test pieces per the facility HACCP plan. Auto-reject rate averaged 0.003%, confirming no over-rejection of good product. Facility passed the next FDA inspection with zero physical hazard findings.
- Timeline: Site survey to go-live in 14 days. Operator training completed in one shift.
Detection Capability by Food Type
Not all food products present the same x-ray inspection challenge. Dense products (meat, canned goods) provide high image contrast — contamination is straightforward to detect. Low-density products (bread, snacks) require higher sensitivity settings and narrow beam geometry. The table below shows typical detection thresholds for 2M Technology inline systems by food category.
| Food Category | Primary Contaminant Risk | Detectable Materials | Min. Detection Size |
|---|---|---|---|
| Meat & Poultry | Bone fragments, metal shards | Bone, Fe, non-Fe, SS | 1.5mm bone / 0.8mm metal |
| Seafood | Fish bone, shell fragments | Bone, calcified shell | 2.0mm |
| Baked Goods & Snacks | Wire, metal clips, stone | Fe, non-Fe, glass, stone | 1.2mm Fe / 2.0mm glass |
| Canned / Jarred Goods | Glass shards, lid metal | Glass, Fe, SS | 2.0mm glass |
| Produce & Fresh Cut | Stone, metal harvest clips | Stone, Fe | 1.5mm |
| Frozen Meals / Ready-to-Eat | Bone, tray plastic, metal | Bone, dense plastic, Fe | 2.0mm bone |
Detection thresholds vary by product density, belt speed, and system calibration. 2M Technology performs on-site product-profile validation with customer samples before go-live.
Industry Applications for Food X-Ray Inspection
Food x-ray inspection scanners are deployed across every segment of the food manufacturing supply chain. 2M Technology serves DFW-area and Texas food manufacturers in the following industries:
Meat & Poultry Processing
The highest-risk category for physical contamination. USDA-inspected plants use inline x-ray on deboning, grinding, and portioning lines. X-ray detects bone fragments, broken metal saw teeth, and hard plastic from equipment wear — contaminants metal detectors miss entirely.
Seafood Processing
Calcified fish bone and shell fragments are invisible to metal detectors. X-ray inspection is the only reliable detection method for fish bone in fillets, shrimp (shell remnants), and crab products (cartilage, shell). Especially important for sushi-grade and retail-pack product destined for sensitive consumer markets.
Baked Goods & Confectionery
Wire mesh, metal clips from packaging lines, and dense stone fragments are the primary risks in bakery production. Low-density baked goods require high-sensitivity x-ray systems with narrow beam geometry. 2M systems maintain detection at 1.2mm ferrous in bread product profiles.
Produce & Fresh Cut
Stone, metal stakes, and irrigation hardware enter produce during harvest and field operations. Pre-pack inline x-ray inspection on fresh-cut salad and vegetable lines reduces the risk of consumer injury, retailer recalls, and FDA enforcement actions.
Contract Packers & Co-Manufacturers
Retail customers — including Walmart, Kroger, and HEB — increasingly require validated x-ray inspection as a condition of supplier approval. A 2M x-ray system with documented reject records satisfies retailer codes of practice and SQF audit requirements without requiring your facility to build in-house expertise.
Frequently Asked Questions
Are food X-ray inspection scanners safe?
Food X-ray inspection scanners are safe to use and food that is scanned by the X-ray machine is safe to consume. The amount of radiation used for food X-ray scanning is much less than what is used for medical X-rays.
What is the delivery time?
If there are no customizations to be made, you can expect to receive your delivery in 3-4 weeks after payment confirmation.
Do you offer customized options?
Yes, we offer different customized options such as auto-detection, scanning speed, and size. If you would like to know more information about options and pricing, contact our sales team. Also, please note that customized X-ray scanners will require additional production time.
What does the warranty policy cover?
Warranty is offered on all purchases for 2 years. The warranty covers replacement on all parts and components.
Is installation provided?
Equipment installation is not provided with purchases, but we offer free online technical support in case you run into any issues or need assistance with setting up.
What is the country of origin for your food X-ray inspection machines?
Our food X-ray inspection systems are manufactured in China. Every unit is engineered to meet strict international food safety standards, delivering reliable, high-resolution foreign contaminant detection and imaging performance for food manufacturing, packaging, and distribution operations.
