Custom Explosion Proof Verkada Housings — ATEX & IECEx Certified
An explosion proof Verkada housing from 2M Technology transforms any Verkada security camera into a compliant, explosion-proof monitoring solution for ATEX-classified and hazardous zones. Our custom-made explosion proof Verkada housings are engineered to meet IECEx and ATEX standards without sacrificing any of Verkada’s cloud management, AI analytics, or video quality features.
Eliminate Explosion Hazards from Hazardous Areas
Hazardous areas have an increased risk of explosions due to the presence of flammable or combustible materials. Electrical equipment, including security cameras, must be used with extreme caution, as even minor sparks can trigger catastrophic explosions.
An explosion-proof Verkada camera housing is a protective casings for CCTV cameras, engineered to contain any sparks and prevent the ignition of explosions. These enclosures make it possible to monitor operations in hazardous zones while protecting assets, personnel, and the surrounding community from explosion risks.
No Compromises on Security or Safety
The explosion-proof Verkada camera housing options available off-the-shelf are severely limited. It is unlikely you will find a pre-built explosion-proof Verkada camera housing that preserves Verkada’s cloud management, AI analytics, and full feature set in a classified zone.
At 2M Technology, there’s no need to compromise on features or safety. We design and manufacture a custom explosion proof Verkada housing for any Verkada model, allowing you to safely deploy your existing Verkada cameras in ATEX and IECEx hazardous locations.
The 4 Step Process
Custom Explosion Proof Verkada Housings, Made-to-Order
Consultation
Client sends us a sample of the camera or a rough drawing with the necessary technical specifications.
Design
Our team of engineers design the housing in accordance to ATEX or UL standards, which can take 6-8 weeks.
Production
Once the finalized design is approved by the client, it is sent to production, which can last 3-4 weeks.
Delivery
After undergoing a strict quality inspection, the finished housing is packed and shipped to the client.
Supported Verkada Camera Models
With Verkada’s easy-to-use interface and powerful security features, organizations can ensure the safety and security of their personnel and assets, even in challenging environments. When paired with custom explosion proof Verkada housings, these cameras become the perfect solution for monitoring hazardous locations where traditional equipment cannot operate safely.
 |
|
|
 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
 |
|
 |
 |
 |
|

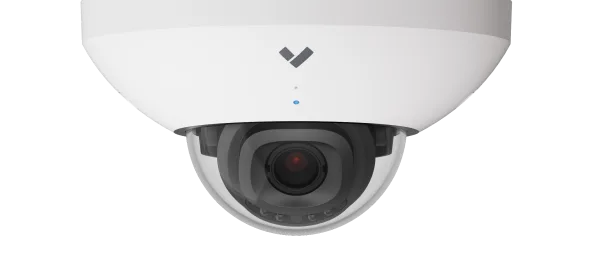

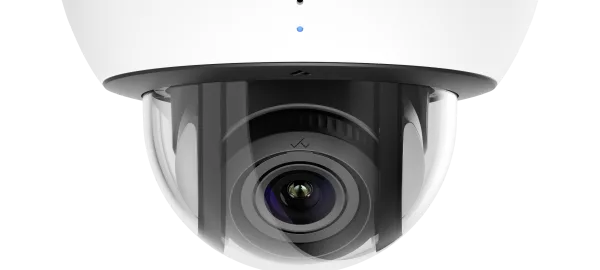

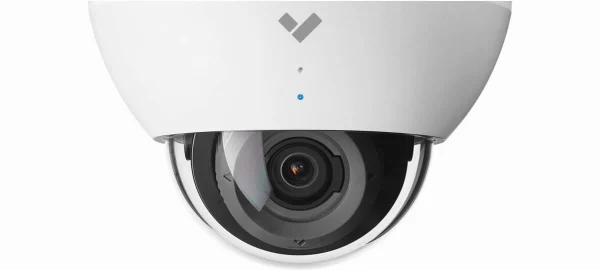

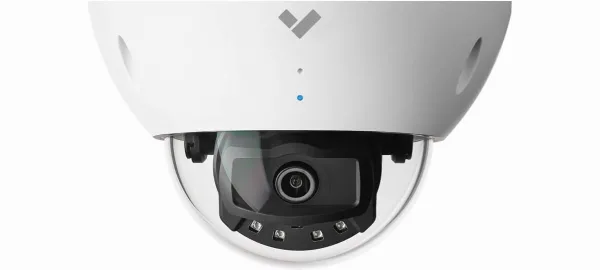

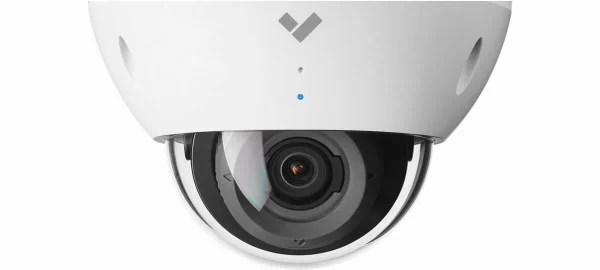

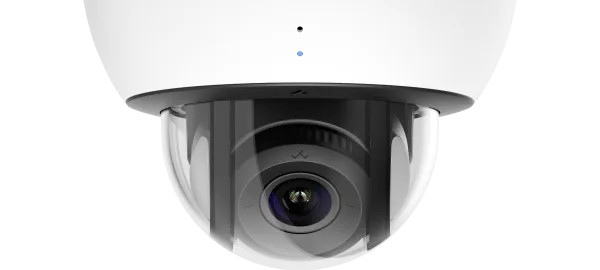

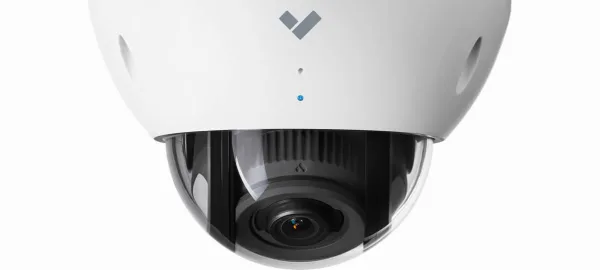

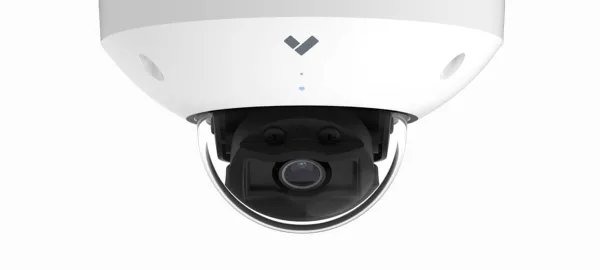

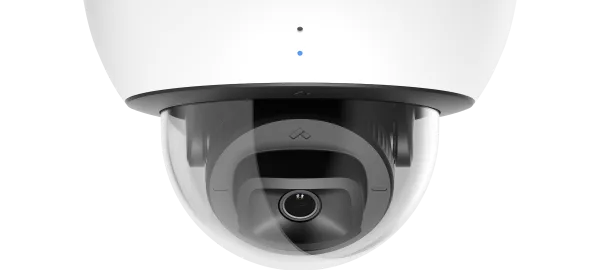

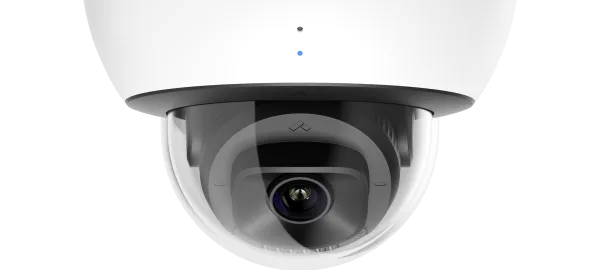

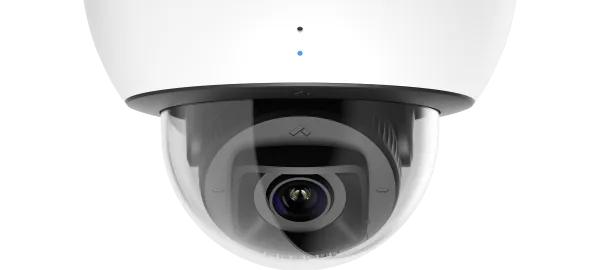

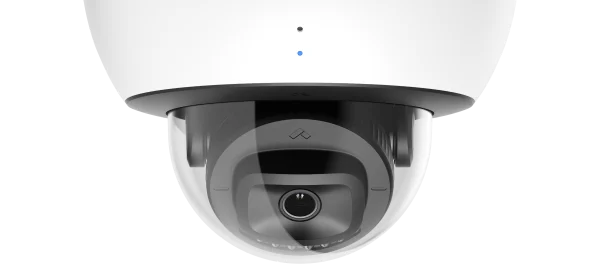

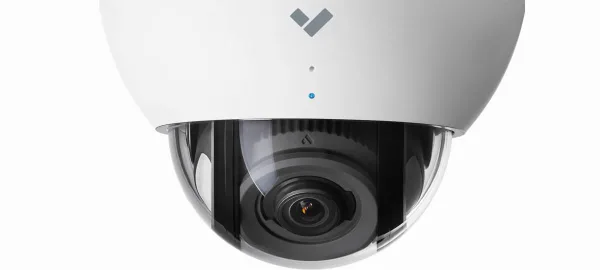

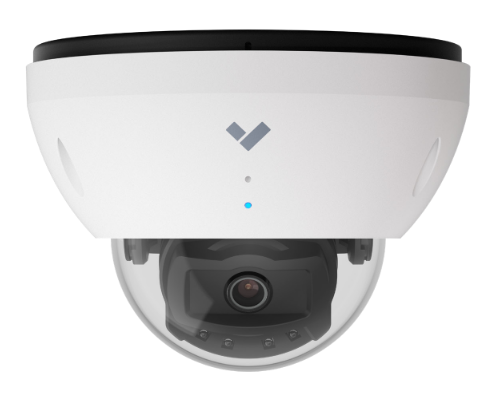

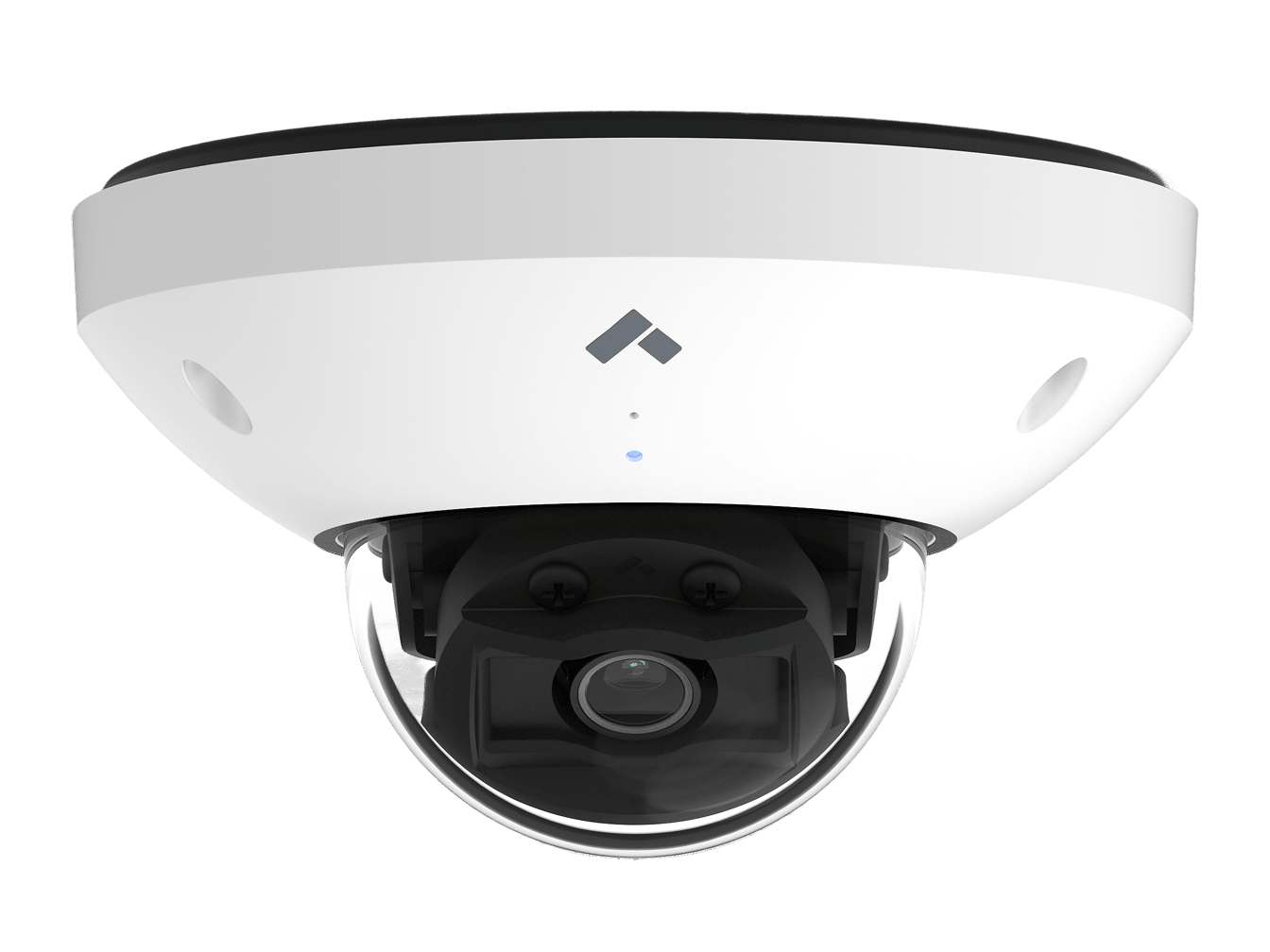

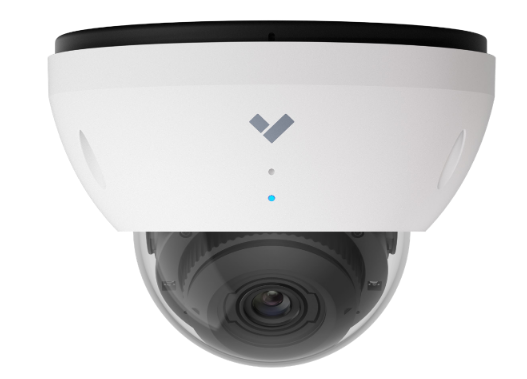

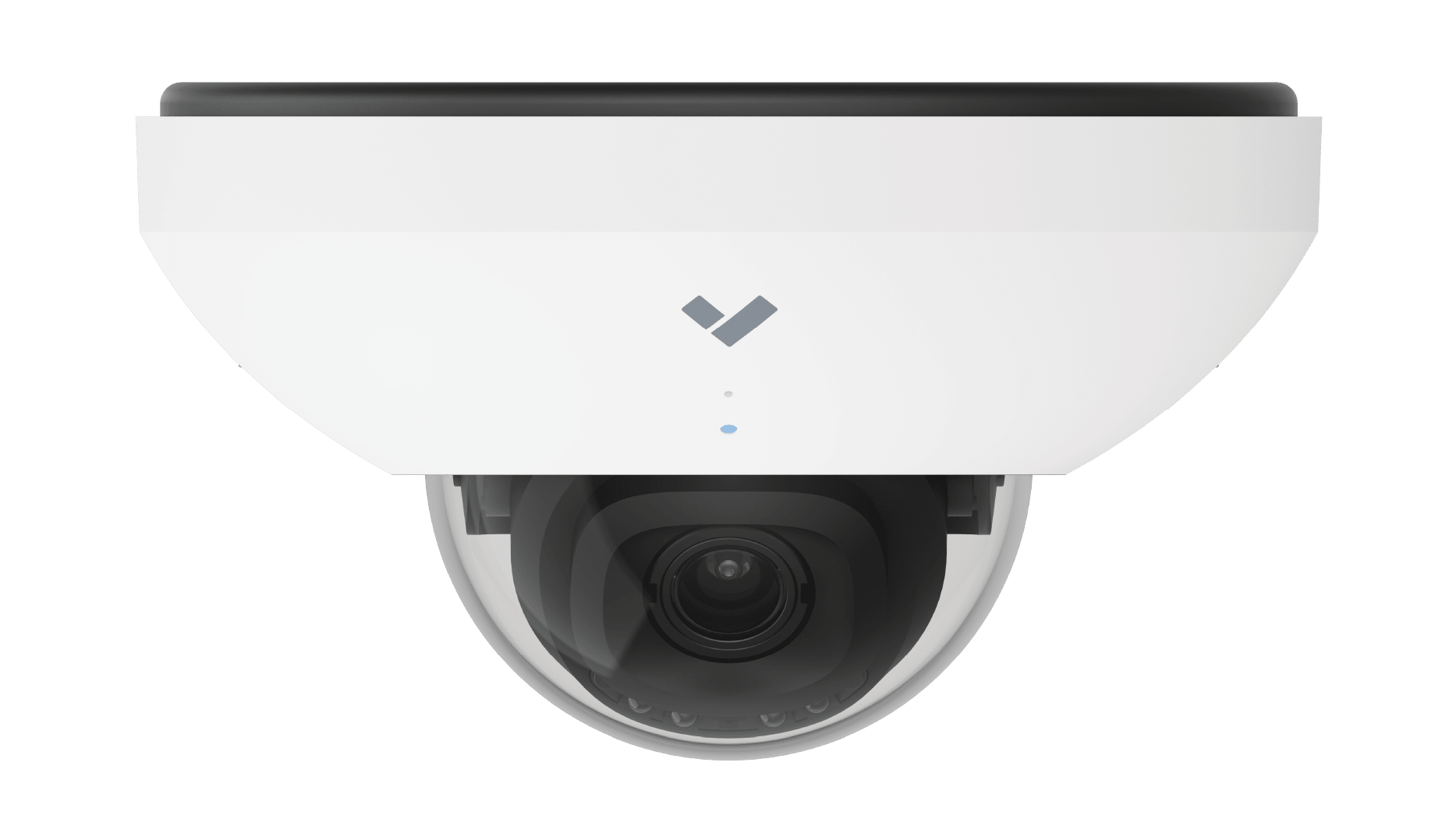

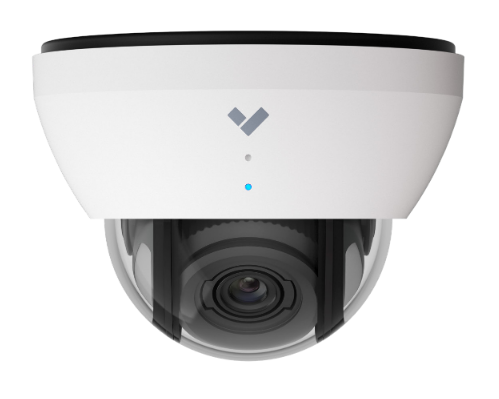

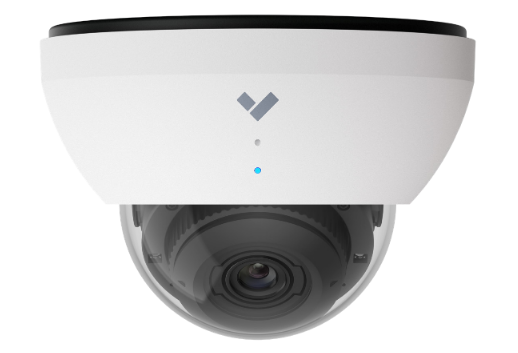

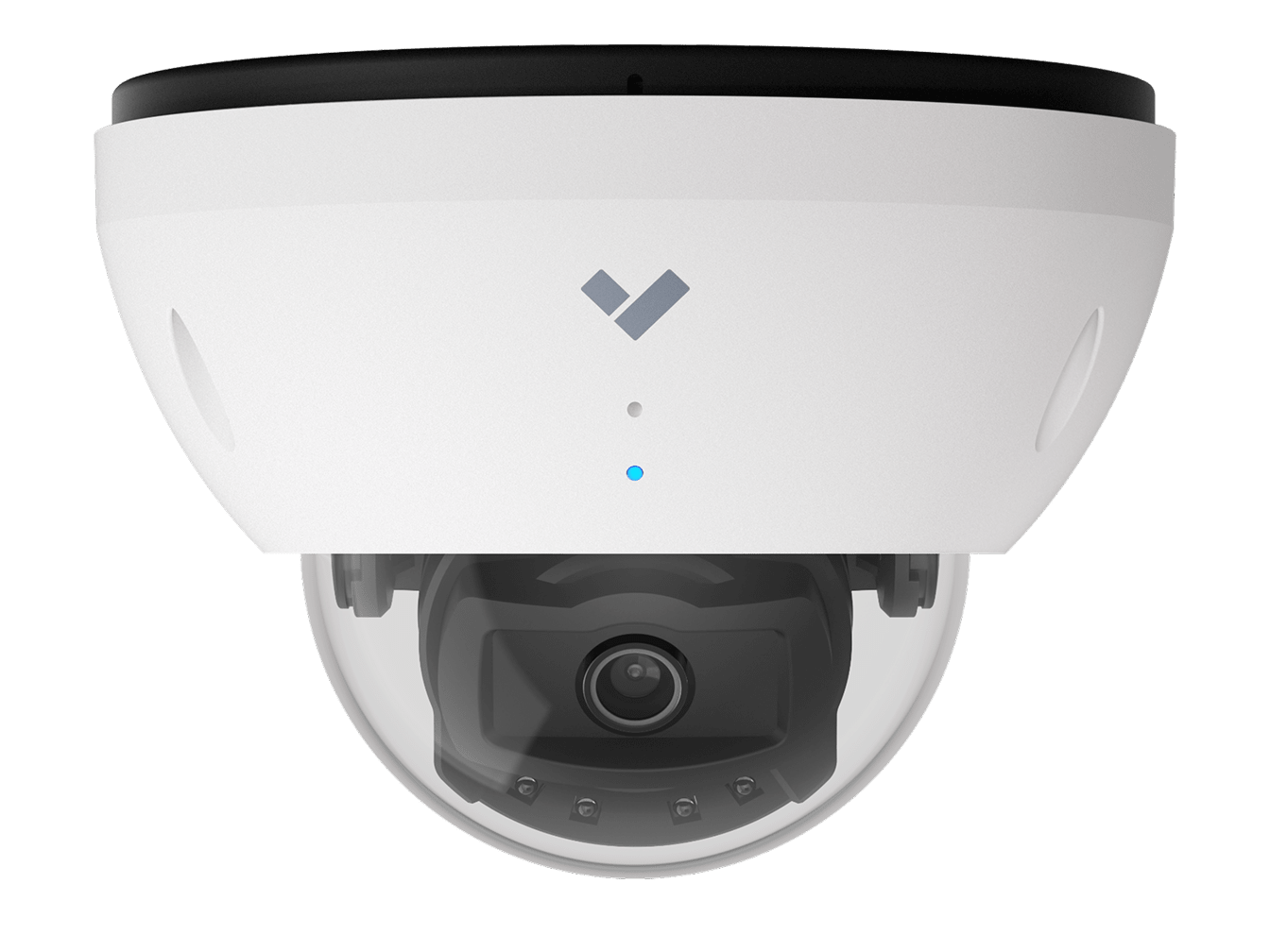

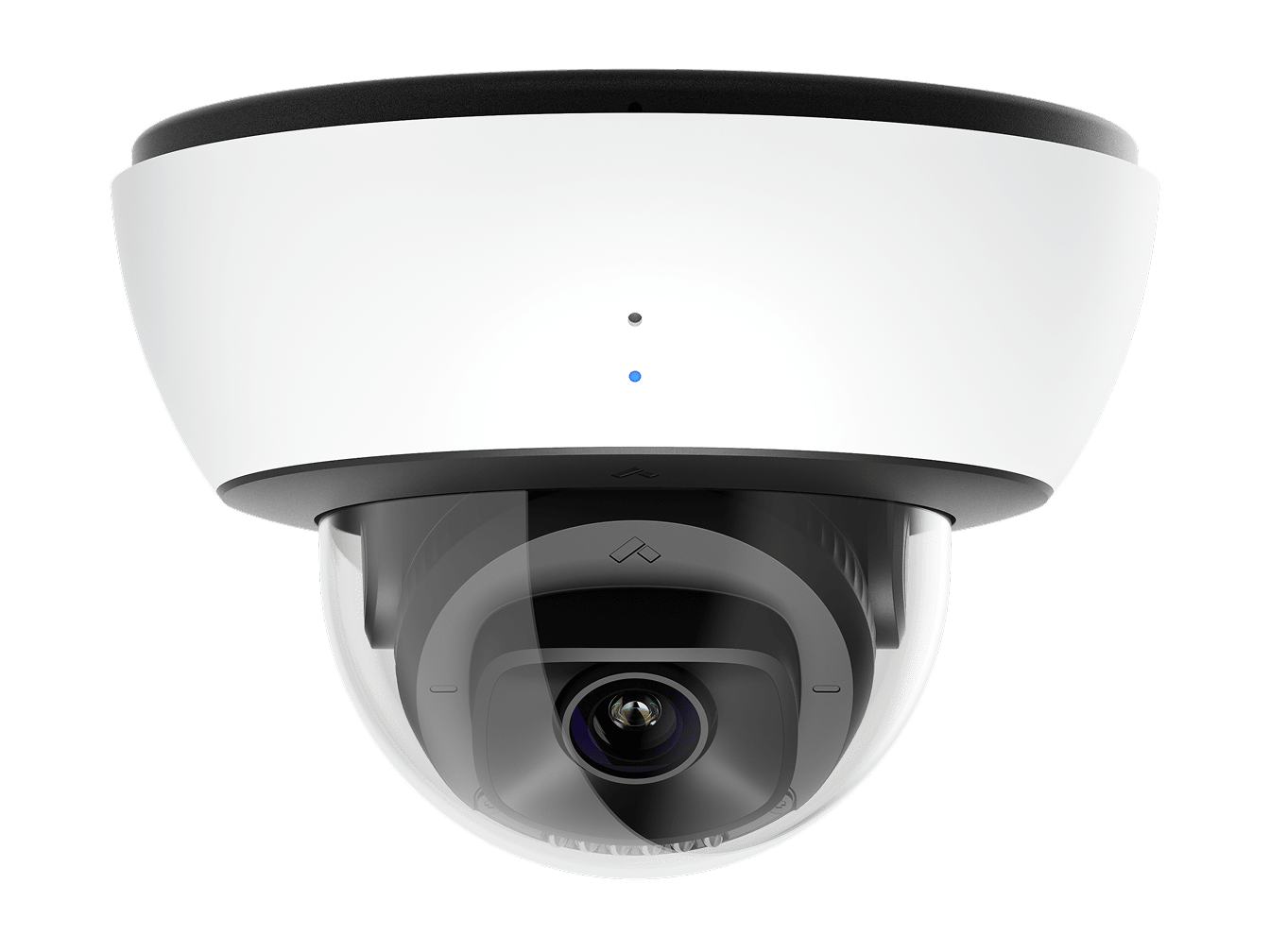

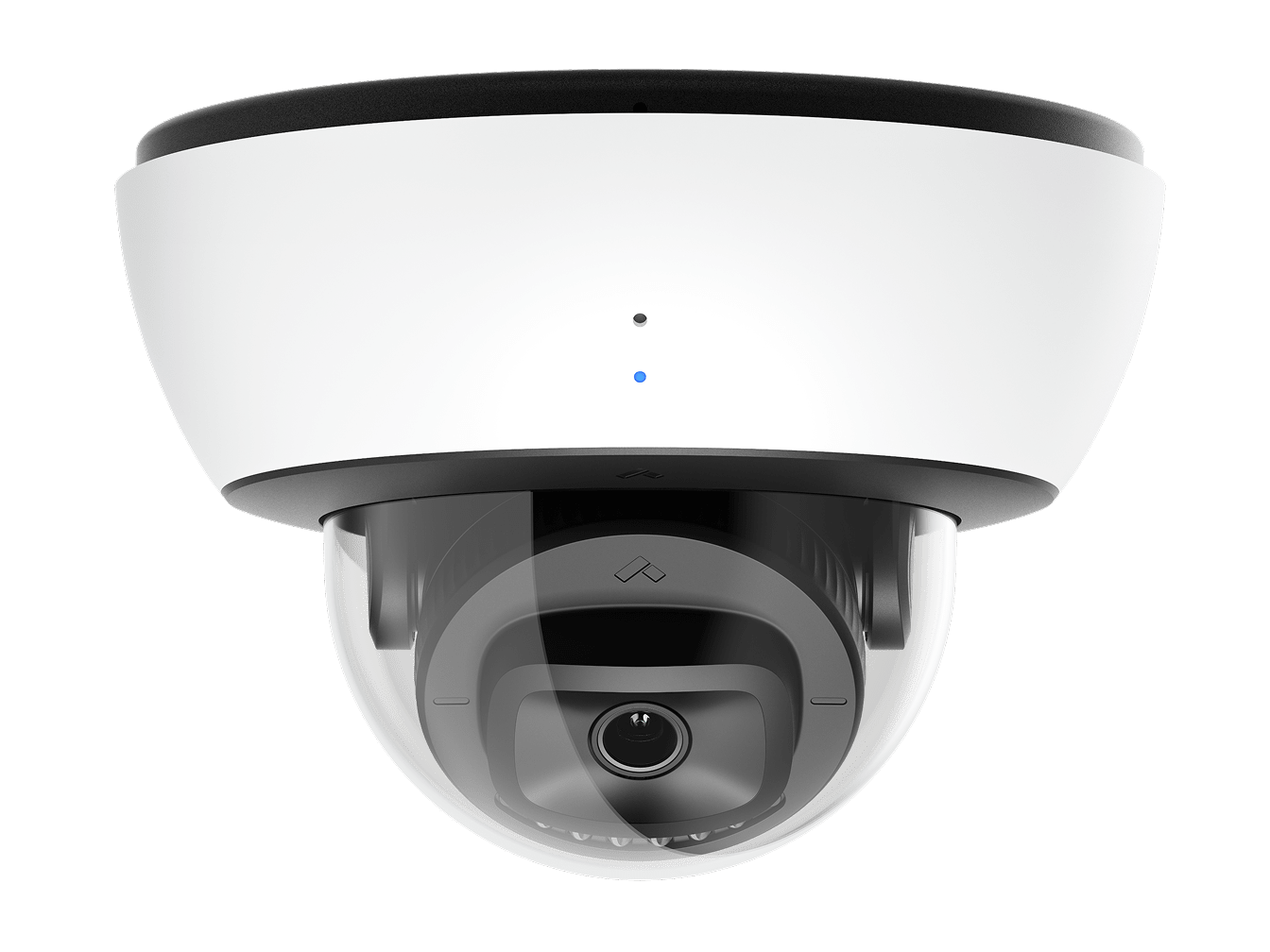

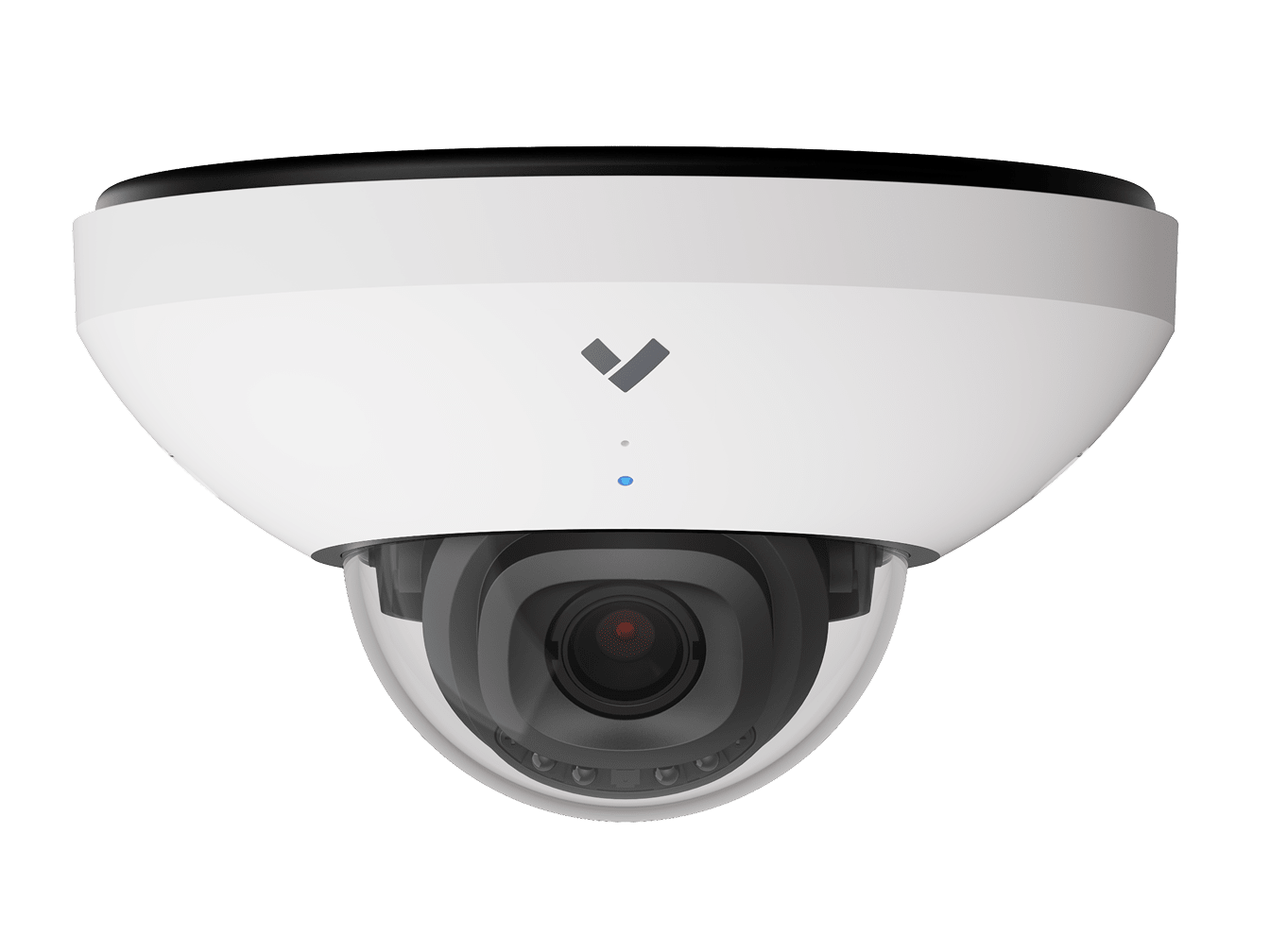

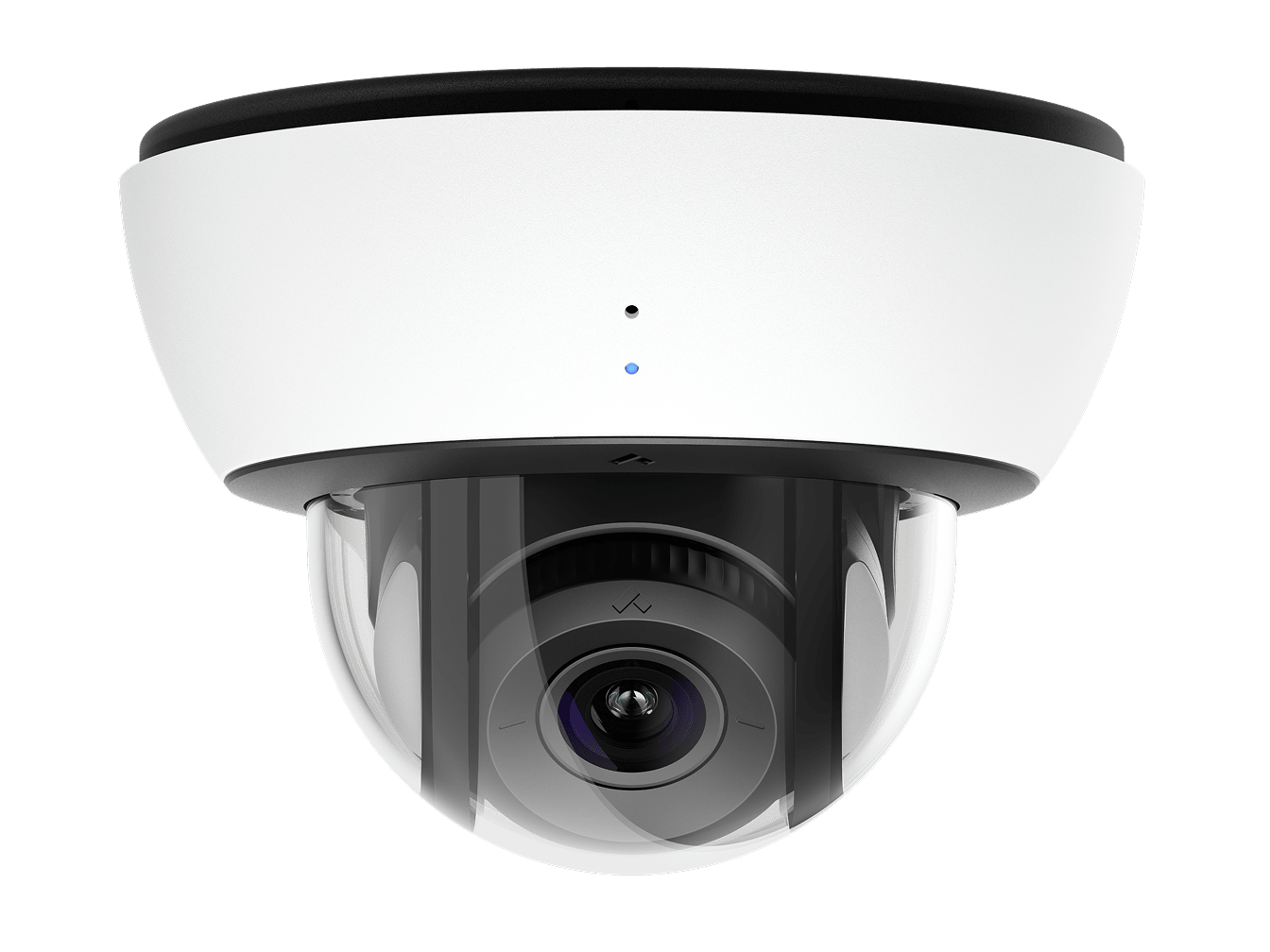

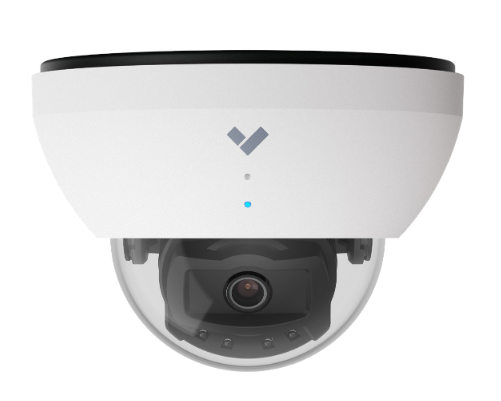

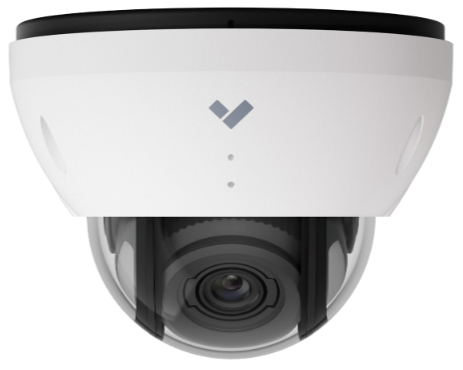

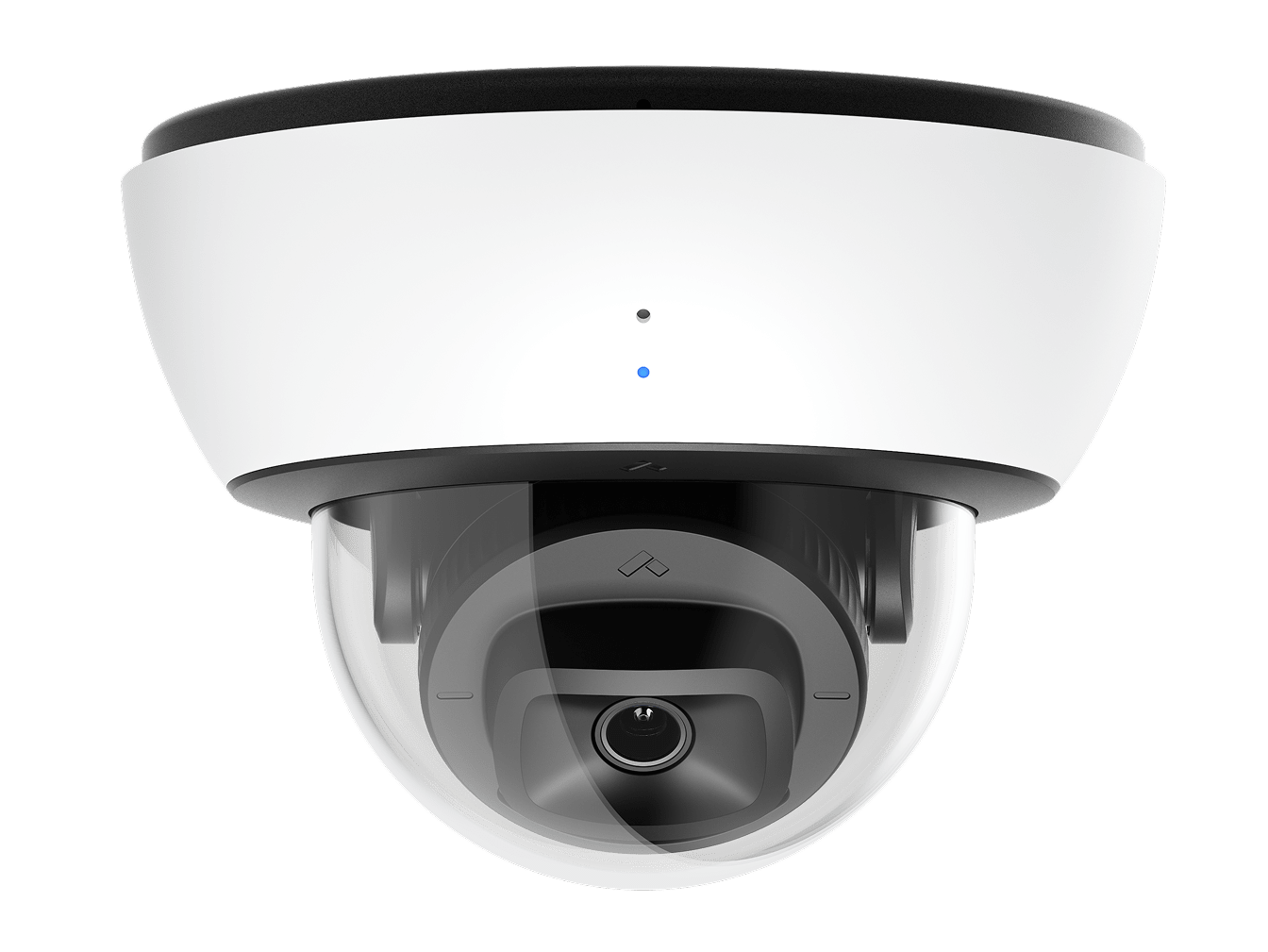

| Model | CD22 | CD22-E | CD32 | CD32-E | CD42* | CD42-E* | CD43 | CD43-E | CD52* | CD52-E* | CD53 | CD53-E | CD62* | CD62-E* | CD63 | CD63-E | CM22 | CM41-E | CM42 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Dome | Dome | Dome | Dome | Dome | Dome | Dome | Dome | Dome | Dome | Dome | Dome | Dome | Dome | Dome | Dome | Mini Dome | Mini Dome | Mini Dome |
| Environment | Indoor | Outdoor | Indoor | Outdoor | Indoor | Outdoor | Indoor | Outdoor | Indoor | Outdoor | Indoor | Outdoor | Indoor | Outdoor | Indoor | Outdoor | Indoor | Outdoor | Indoor |
| Resolution | 3MP | 3MP | 3MP | 3MP | 5MP | 5MP | 5MP | 5MP | 5MP | 5MP | 5MP | 5MP | 4K / 8MP | 4K / 8MP | 4K / 8MP | 4K / 8MP | 3MP | 5MP | 5MP |
| Lens Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Varifocal; Motorized Zoom | Varifocal; Motorized Zoom | Varifocal; Motorized Zoom | Varifocal; Motorized Zoom | Varifocal; Motorized Zoom | Varifocal; Motorized Zoom | Varifocal; Motorized Zoom | Varifocal; Motorized Zoom | Fixed | Fixed | Fixed |
| Focal Length | 2.8 mm | 2.8 mm | 2.8 mm | 2.8 mm | 2.8 mm | 2.8 mm | 3.2 mm | 3.2 mm | 2.8–8 mm | 2.8–8 mm | 2.8–8 mm | 2.8–8 mm | 2.8–8 mm | 2.8–8 mm | 5.9–13.3 mm | 5.9–13.3 mm | 2.8 mm | 2.8 mm | 2.8 mm |
| Optical Zoom | — | — | — | — | — | — | — | — | 2.86x | 2.86x | 2.86x | 2.86x | 2.86x | 2.86x | 2.25x | 2.25x | — | — | — |
| IR Range | 10 m (33 ft) | 10 m (33 ft) | 15 m (49 ft) | 15 m (49 ft) | 15 m (49 ft) | 15 m (49 ft) | 20 m (66 ft) | 20 m (66 ft) | 30 m (98 ft) | 30 m (98 ft) | 30 m (98 ft) | 30 m (98 ft) | 30 m (98 ft) | 30 m (98 ft) | 40 m (130 ft) | 40 m (130 ft) | 10 m (33 ft) | 15 m (49 ft) | 20 m (66 ft) |
| Audio | — | — | One-way | One-way | One-way | One-way | One-way | One-way | One-way | One-way | One-way | One-way | One-way | One-way | One-way | One-way | — | One-way | One-way |
| Built-In Microphone | ✗ | ✗ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✗ | ✓ | ✓ |
| AI Analytics | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| LPR | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| Impact Rating | IK08 | IK10 | IK08 | IK10 | IK08 | IK10 | IK08 | IK10 | IK08 | IK10 | IK08 | IK10 | IK08 | IK10 | IK08 | IK10 | — | IK10 | IK08 |
| IP Rating | — | IP67 | — | IP67 | — | IP67 | — | IP66/67 | — | IP67 | — | IP66/67 | — | IP67 | — | IP66/67 | — | IP67 | — |
 |
|
 |
 |
|
|
 |
 |
|

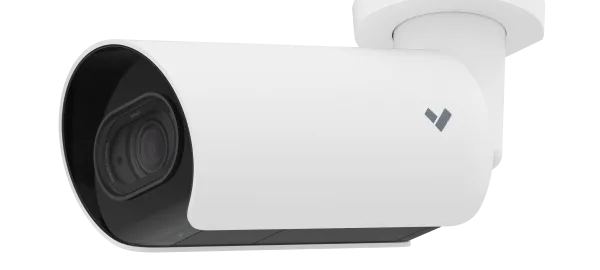

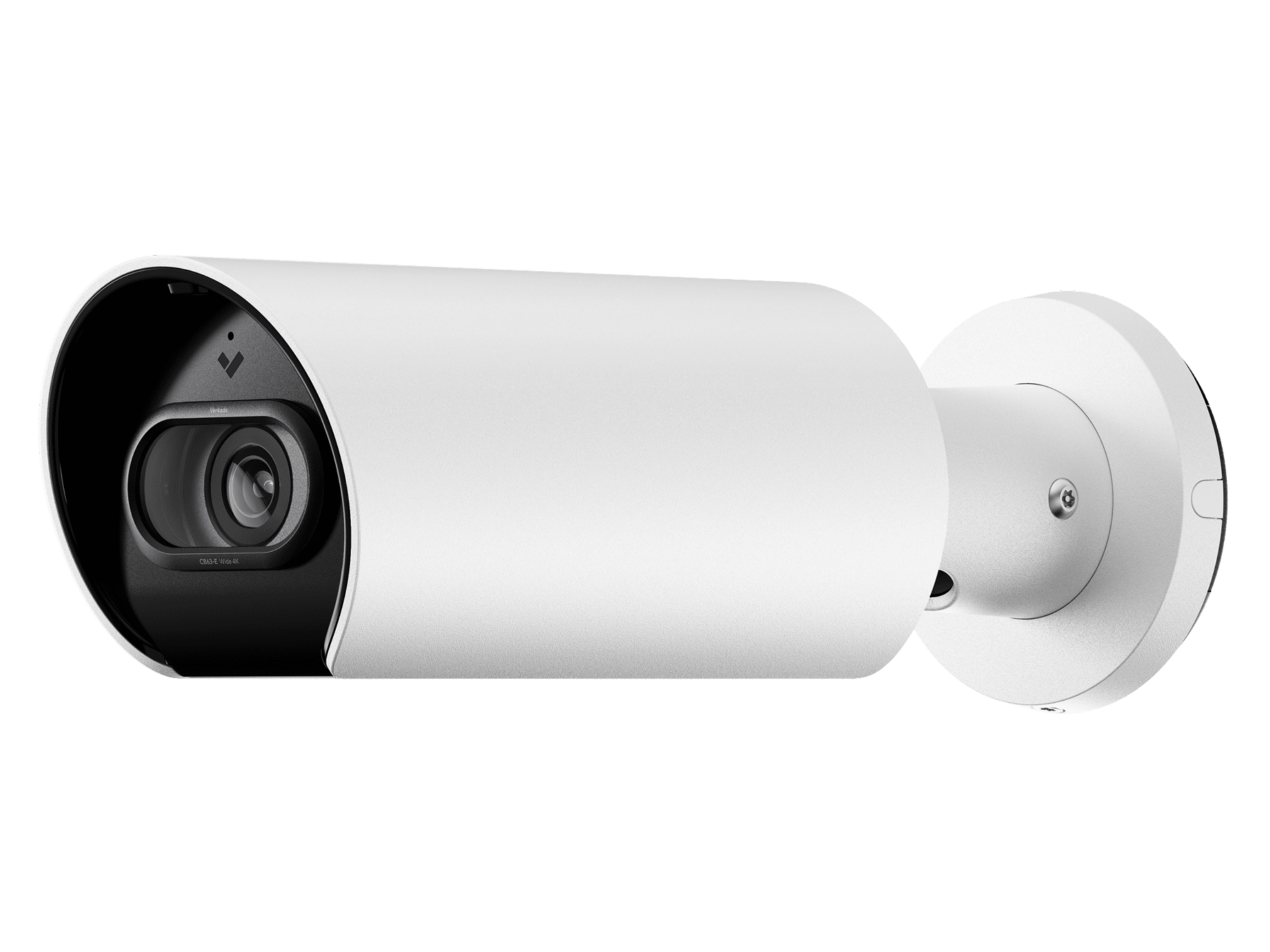

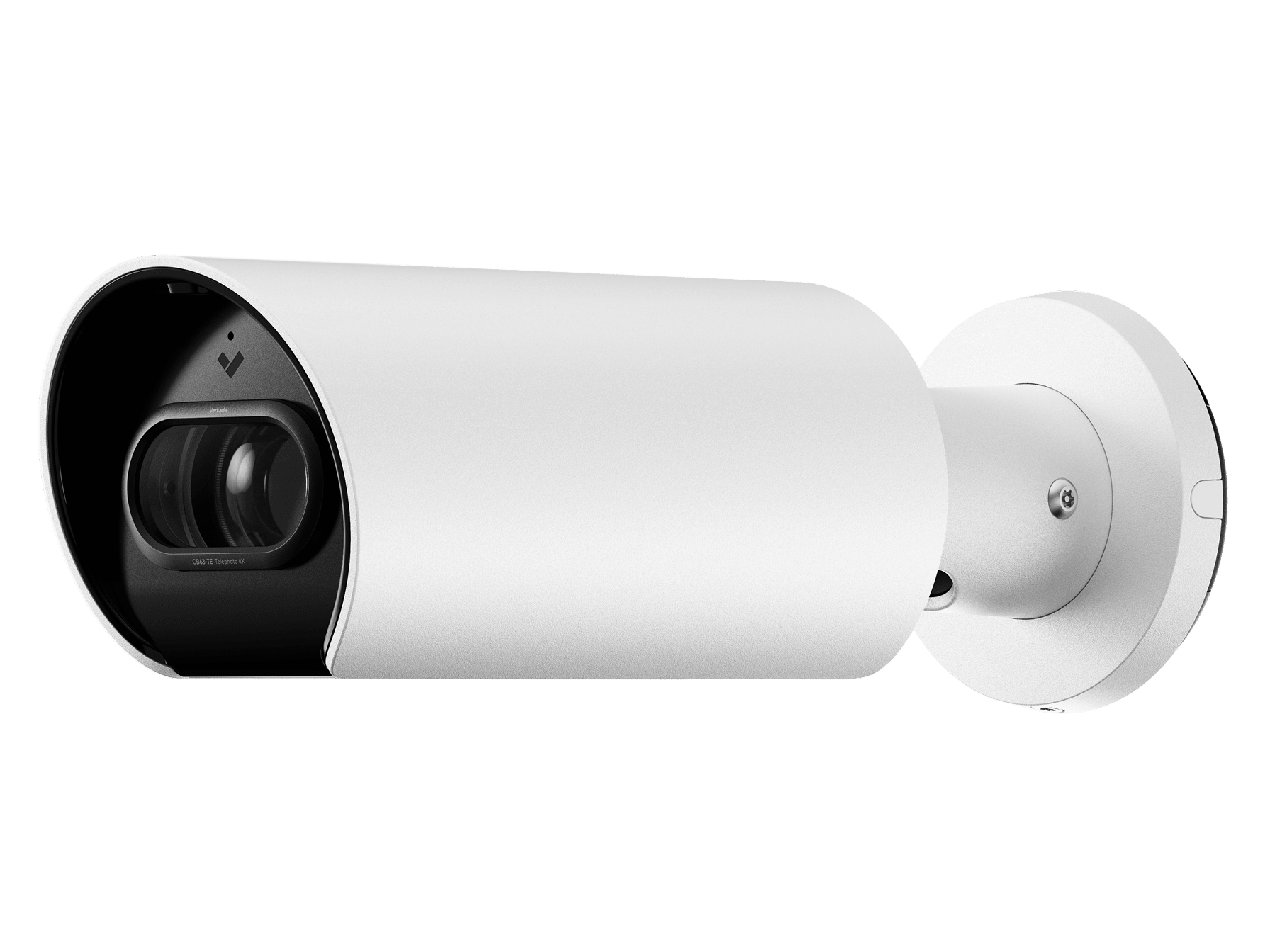

| Model | CB52-E* | CB52-TE* | CB53-E | CB53-TE | CB62-E* | CB62-TE* | CB63-E | CB63-TE |
|---|---|---|---|---|---|---|---|---|
| Type | Bullet | Bullet | Bullet | Bullet | Bullet | Bullet | Bullet | Bullet |
| Environment | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Resolution | 5MP | 5MP | 5MP | 5MP | 4K / 8MP | 4K / 8MP | 4K / 8MP | 4K / 8MP |
| Lens Type | Varifocal; Motorized Zoom | Varifocal; Telephoto Zoom | Varifocal; Motorized Zoom | Varifocal; Telephoto Zoom | Varifocal; Motorized Zoom | Varifocal; Telephoto Zoom | Varifocal; Motorized Zoom | Varifocal; Telephoto Zoom |
| Focal Length | 2.8–8 mm | 8–20 mm | 2.8–8 mm | 8–20 mm | 2.8–8 mm | 8–20 mm | 5.9–13.3 mm | 15–50 mm |
| Optical Zoom | 2.86x | — | 2.85x | — | 2.86x | — | 2.25x | — |
| IR Range | 30 m (98 ft) | 50 m (164 ft) | 50 m (164 ft) | 100 m (328 ft) | 30 m (98 ft) | 50 m (164 ft) | 50 m (164 ft) | 100 m (328 ft) |
| Audio | — | — | — | — | — | — | — | — |
| Built-In Microphone | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ | ✗ |
| AI Analytics | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| LPR | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Impact Rating | IK10 | IK10 | IK10 | IK10 | IK10 | IK10 | IK10 | IK10 |
| IP Rating | IP67 | IP67 | IP66/67 | IP66/67 | IP67 | IP67 | IP66/67 | IP66/67 |
 |
 |
 |
 |
|

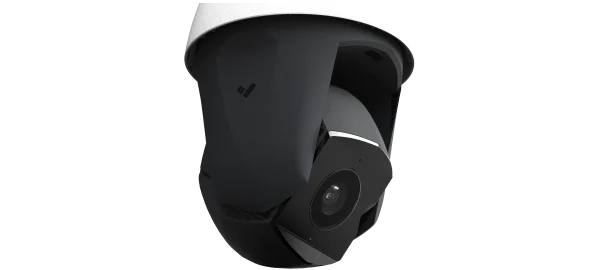

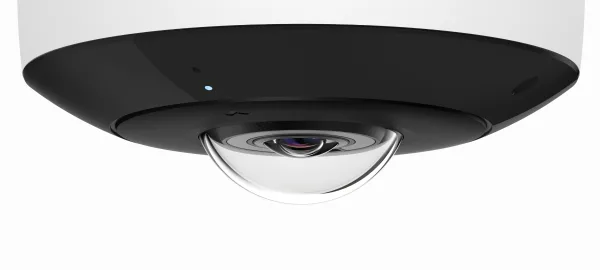

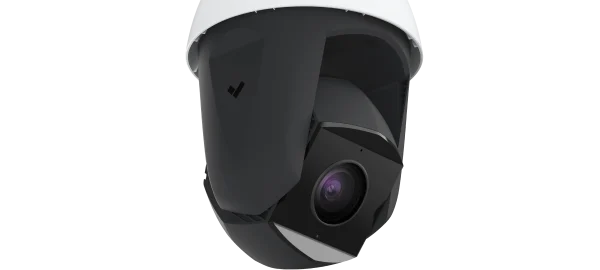

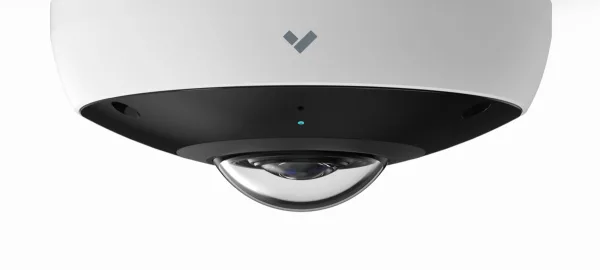

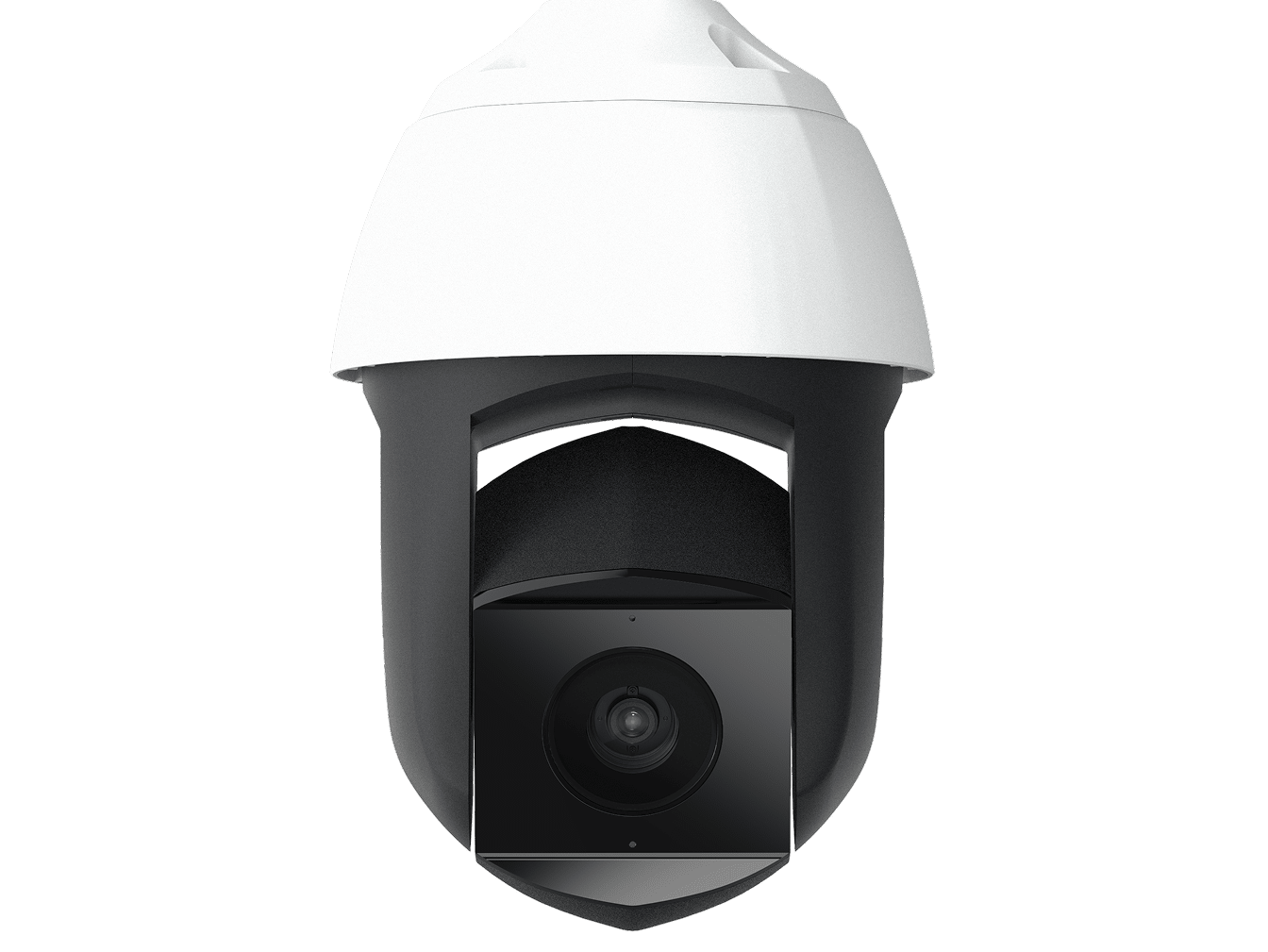

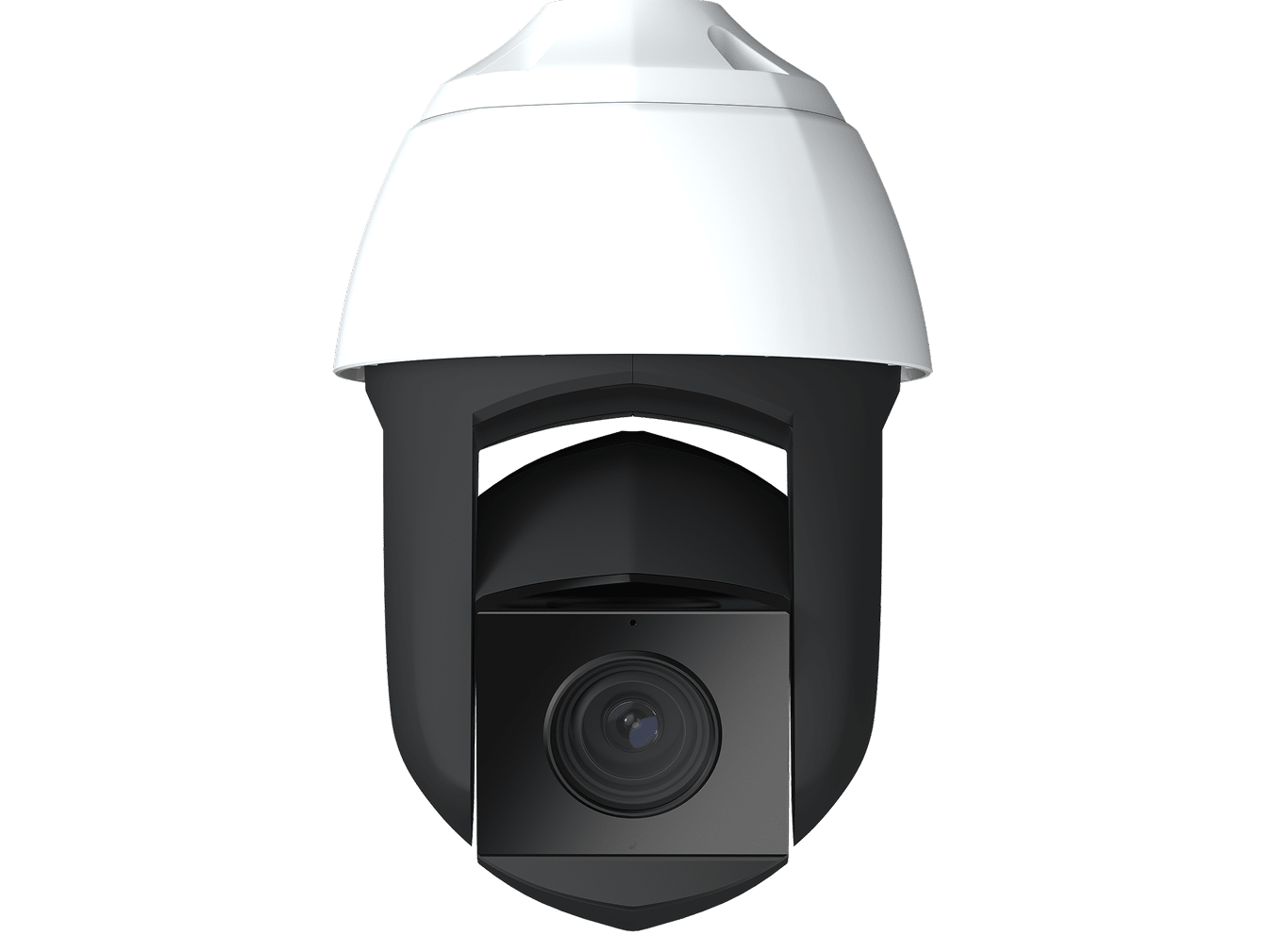

| Model | CF81-E* | CF83-E* | CP52-E | CP63-E |
|---|---|---|---|---|
| Type | Fisheye | Fisheye | PTZ | PTZ |
| Environment | Outdoor | Outdoor | Outdoor | Outdoor |
| Resolution | 12MP | 12.5MP | 5MP | 4K / 8MP |
| Lens Type | Fixed | Fixed | Varifocal; Motorized Zoom | Varifocal; Motorized Zoom |
| Focal Length | 1.18 mm | 1.7 mm | 5.2–148.15 mm | 6.5–212 mm |
| Optical Zoom | — | — | 28x | 32x |
| IR Range | 20 m (66 ft) | 20 m (66 ft) | 100 m (328 ft) | 100 m (328 ft) |
| Audio | One-way | One-way | — | — |
| Built-In Microphone | ✓ | ✓ | ✗ | ✗ |
| AI Analytics | ✓ | ✓ | ✓ | ✓ |
| LPR | ✗ | ✗ | ✗ | ✗ |
| Impact Rating | IK10 | IK10 | IK10 | IK10 |
| IP Rating | IP67 | IP66/67 | IP66 | IP66 |
*Indicates that the explosion proof Verkada housing design for this model has already been created and is ready to be sent to production upon ordering
How a Verkada Camera Becomes Hazardous-Area Legal

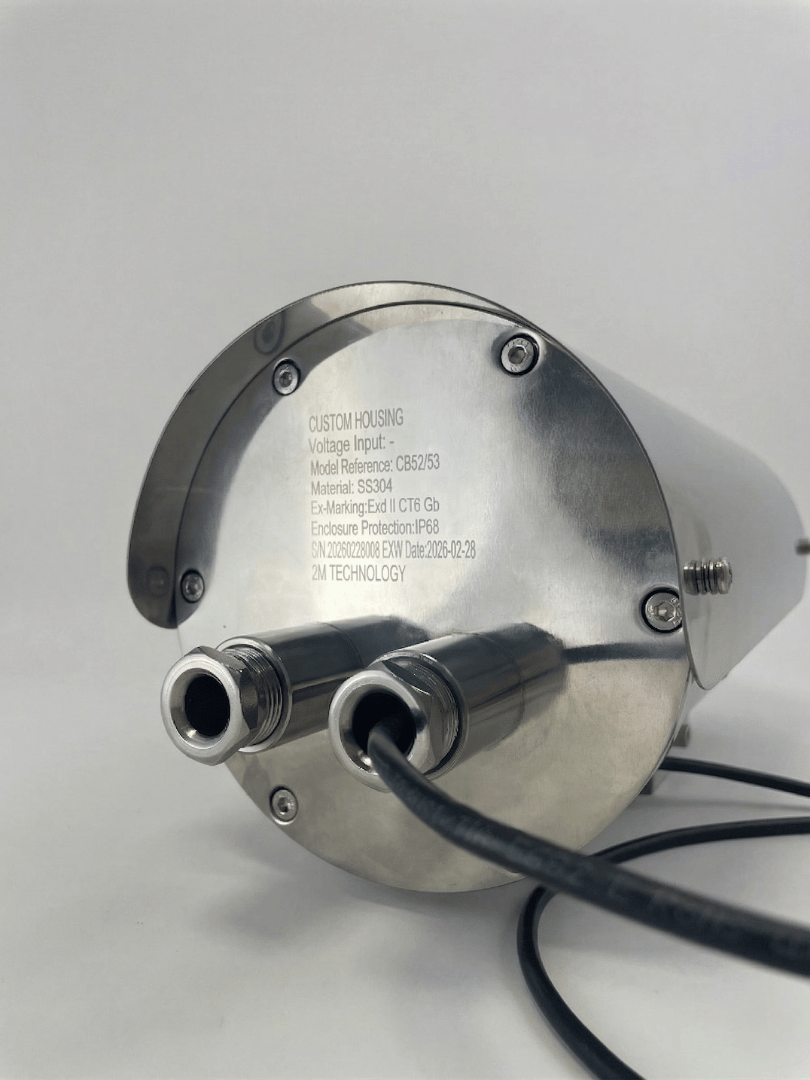

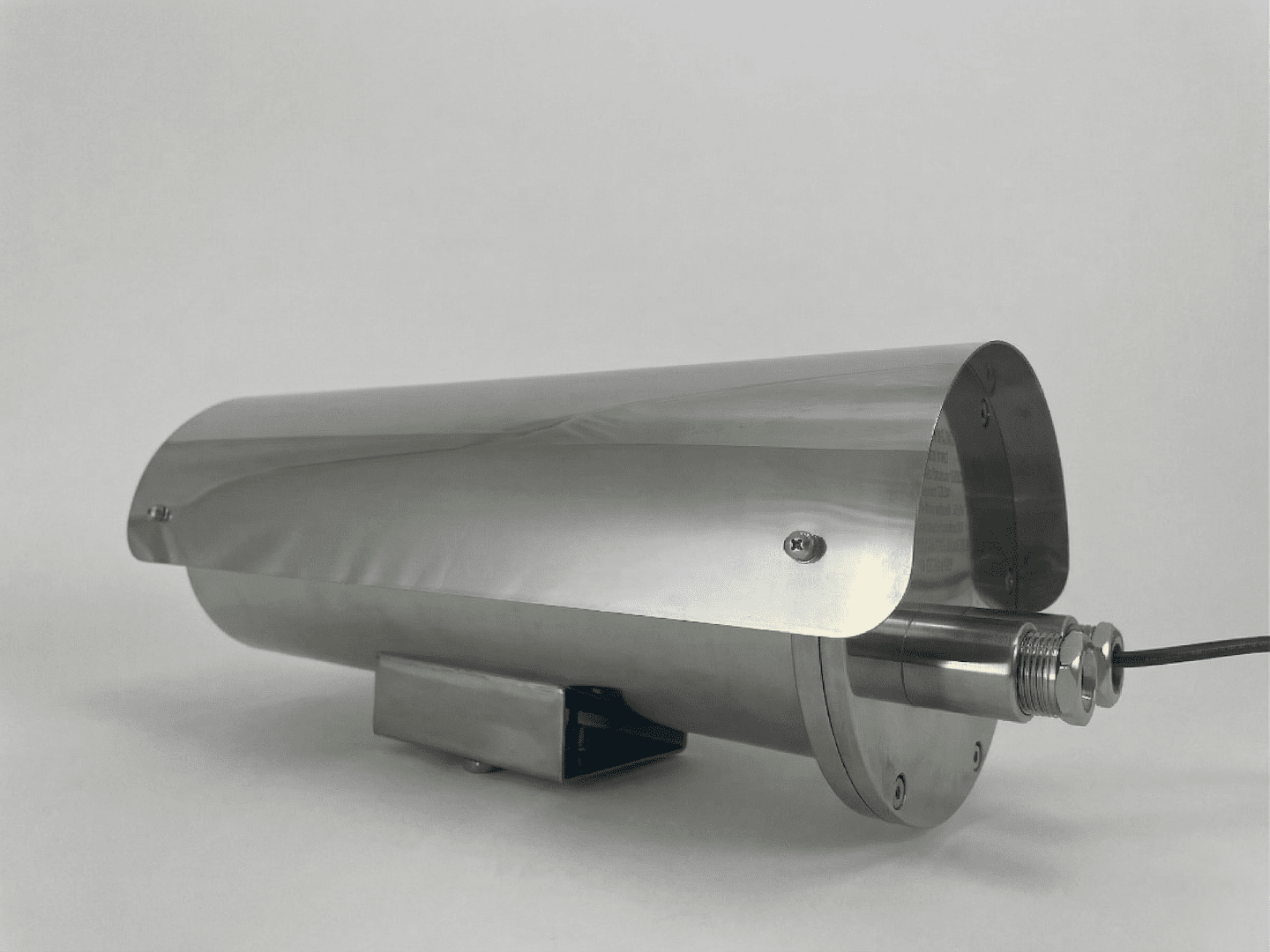

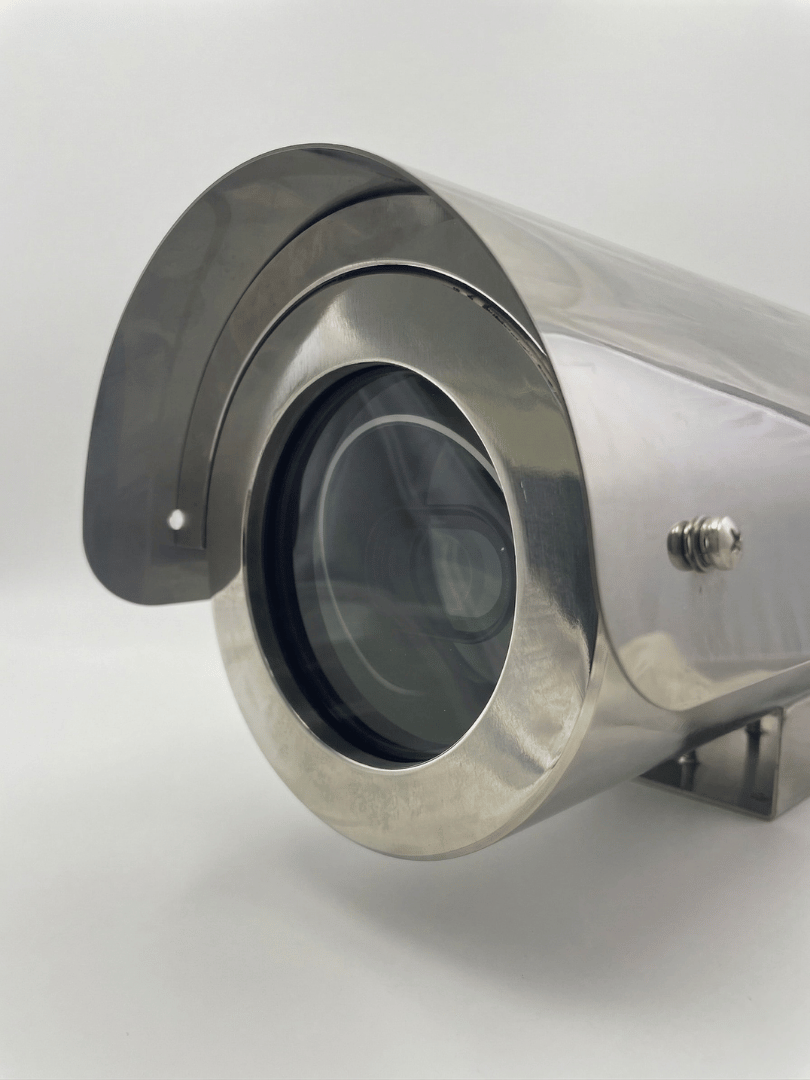

Verkada does not manufacture explosion-proof cameras — the path to deploying one in a Class I Division 1/2 location (per Articles 500–506 of NFPA 70 (the National Electrical Code)) is a certified third-party housing. 2M’s 316L stainless enclosures are engineered to the UL 1203 standard from UL and the international IECEx/ATEX zone schemes, sized to the exact Verkada model’s optics, IR, and thermals so the camera keeps its full field of view and cloud features inside the rated enclosure.
Real Project Examples
Electrical Contractor: Custom Explosion-Proof Verkada Camera Housing
Specialty Oil Refinery: Custom Explosion-Proof Verkada Camera Housings
Experience You Can Trust
Security Expertise
With 19 years of experience and expertise, you can trust our team to design a security solution tailored to your needs
Quality Assurance
Each housing we create must meet strict quality standards, guaranteeing reliability and durability for years to come
Customer Satisfaction
Your satisfaction is our priority, which is why we provide 2-year warranty on purchases and technical support
Globally Certified
Deploy your camera with peace of mind. All housings are certified and safe to use in hazardous-rated areas.
Get a Custom Explosion Proof Verkada Housing Design
