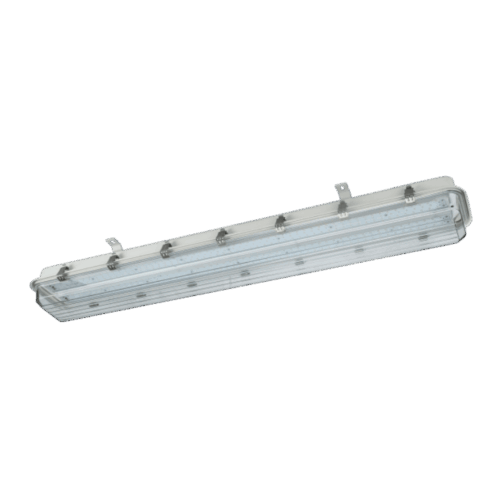

2MEXL-LR4E Explosion Proof Emergency LED Linear Light 4ft (30–60W)

SKU: 2MEXL-LR4E
  • Length: 4 feet (also available in 2 feet)
  • Power Options: 30W / 40W / 50W / 60W (CID2 only)
  • Lumen Output: 3900 Lm / 5200 Lm / 6500 Lm / 7800 Lm
  • Luminous Efficacy: 130 Lm/W
  • Mounting Options: Ceiling, rope, or pole
  • Protection Ratings: IP66 / IK10 / 3G vibration
  • Emergency Run Time: 3 hours

Features

Rugged Illumination with Emergency Backup

The 2MEXL-LR4E 4-Foot Explosion-Proof Emergency LED Linear Light is designed for Class I, Division 2 and Zone 2 hazardous areas where explosive gases, vapors, or dusts may be present. It combines high-performance illumination with built-in emergency power, ensuring continuous visibility during normal operations and in emergency situations. Ideal for any hazardous environment where visibility and safety are critical, including oil and gas facilities, chemical processing plants, offshore rigs, and marine terminals.

The body is constructed with corrosion-resistant SUS304 stainless steel, with an optional SUS316 upgrade for highly corrosive environments. Its fiberglass-reinforced polycarbonate lens (clear or diffused) provides added impact protection. Rated IP66, IK10, and resistant to 3G vibration and 1200 hours of salt spray, this fixture is engineered for reliability in the harshest indoor and outdoor industrial conditions.

Emergency Backup and High-Output Performance

In the event of a power failure, the built-in emergency driver activates instantly, delivering reliable backup illumination for up to 3 hours. The fixture performs in ambient temperatures from –10°C to +60°C and maintains a consistent 130 lm/W luminous efficacy with lumen output up to 7800 lumens, depending on selected wattage.

The LEDs are LM-80 tested with TM-21 projected lifespan ratings exceeding 50,000 hours, minimizing maintenance needs in difficult-to-access hazardous areas.

Flexible Wattages, Color Temperatures, and Dimming

Available in 30W, 40W, 50W, and 60W models, this fixture provides high-lumen outputs ranging from 3900 to 7800 lumens. Color temperature options are tailored by classification:

  • CID2 Applications: 2700K / 4000K / 5000K
  • Zone 2 Applications: 2700K / 3000K / 3500K / 4000K / 5000K / 6000K / 6500K

All versions feature a high CRI >80 and a 120° beam angle for broad, uniform coverage. A 0–10V dimming control is included via a separate low-voltage circuit, allowing precise lighting control in operational or safety-sensitive zones.

Versatile Mounting and Safe Interconnection

This explosion-proof linear light supports ceiling, rope, or pole mounting. It features 4 M20 cable entries (1 pre-fitted with cable gland, 3 with stopping plugs) and supports multiple wiring configurations—dead-end, through-feed, or single-ended “T” wiring. Up to 150W can be interconnected safely across linked units.

Key Specifications:

  • Wattage Options: 30W / 40W / 50W / 60W
  • Lumen Output: 3900 – 7800 lumens
  • Efficacy: 130 Lm/W
  • Voltage: 120–277 VAC, 50/60 Hz
  • Color Temp: 2700K to 6500K (varies by classification)
  • CRI: >80
  • Beam Angle: 120°
  • Material: SUS304 or optional SUS316 stainless steel
  • Lens: Clear or diffused reinforced polycarbonate
  • Emergency Runtime: 3 hours
  • Emergency Temp Range: -10°C to +60°C
  • Ingress Rating: IP66 / IK10 / 3G Vibration
  • Surge Protection: 4 kV
  • Warranty: 5 years (fixture), 3 years (battery backup)

Ideal Applications:

  • Oil & gas refineries
  • Offshore and marine platforms
  • Petrochemical processing plants
  • Hazardous storage warehouses
  • Water and wastewater treatment
  • Power generation sites
  • Tunnels and confined industrial spaces

Specifications

Light Type

LED

Hazardous Area Type

Class I, Div 2, Class II, Div 1, Class II, Div 2, Zone 2

Light Power

30W, 40W, 50W, 60W

Lumen Output

3,900 Lm, 5,200 Lm, 6,500 Lm, 7,800 Lm

Luminous Efficacy

130 Lm/W

Vandal Resistant

IK10

Ingress Protection

IP66

Country of Origin

China
