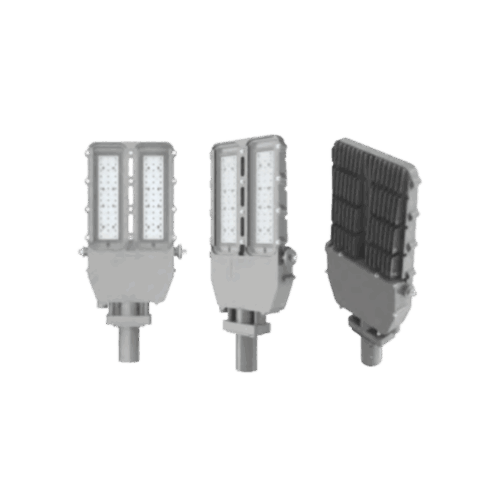

2MEXL-STA2 Explosion-Proof LED Street Light (≤150W)

SKU: 2MEXL-STA2
  • Available Power Ratings: Up to 150W
  • Lumen Output: Up to 21,000 Lm
  • Luminous Efficacy: 120–140 Lm/W
  • Protection Ratings: IP66 / IK06 / IK07 / IK09
  • Mounting Options: Pole, Trunnion, Arm, Slip Fitter, Bracket, Stanchion

Features

Hazardous Area Lighting for Outdoor Industrial Sites

The 2MEXL-STA2 Explosion-Proof LED Street Light (Up to 150W) is built to deliver powerful, reliable lighting in Class I and other hazardous locations where flammable gases or vapors may be present. Suitable for oil refineries, petrochemical zones, tank farms, loading terminals, and shipyards, this fixture combines high light output with heavy-duty construction.

Its ADC12 aluminum housing, tempered glass lens, and stainless steel hardware offer long-lasting performance in corrosive or high-impact environments. With IP66 ingress protection and IK09 impact rating (with wire guard), it’s engineered for the toughest outdoor industrial conditions.

High Output with Broad Beam Options

This fixture delivers up to 21,000 lumens with an impressive efficacy of 120–140 lm/W, helping to reduce energy consumption while providing bright, uniform illumination. Beam angles of 40°, 60°, 90°, 120°, T3, and T5 support versatile applications—from narrow access roads to wide loading zones.

A broad color temperature range (2700K–7000K) and a CRI >70 make this light suitable for a wide range of visual tasks and safety requirements. Integrated 0–10V dimming allows lighting levels to be tailored for efficiency or ambiance.

Built for Harsh Temperature Ranges

The light operates in ambient temperatures from -40°C to +55°C (-40°F to +131°F) without performance loss. With a thermal design optimized for longevity, it offers an L70 rating of over 150,000 hours at 55°C, minimizing maintenance in difficult-to-access areas.

Flexible Mounting and Voltage Support

Installation is adaptable with mounting options for poles, trunnions, arms, slip fitters, brackets, and stanchions. Compatible with AC 120–277V or 200–480V, it supports a wide range of industrial and utility-grade power systems.

Key Features:

  • Wattage: Up to 150W
  • Lumen Output: Max. 21,000 lumens
  • Efficacy: 120–140 lm/W
  • CCT Range: 2700K – 7000K
  • Beam Angles: 40°, 60°, 90°, 120°, T3, T5
  • CRI: >70
  • Dimming: 0–10V
  • Housing Material: ADC12 aluminum
  • Lens: Tempered glass
  • Ambient Temperature: -40°C to +55°C
  • Ingress Protection: IP66
  • Impact Resistance: IK06/IK07 (w/o guard), IK09 (with guard)
  • Mounting: Pole, Trunnion, Arm, Slip Fitter, Bracket, Stanchion
  • Lumen Maintenance: L70 >150,000 hours @55°C
  • Warranty: 5-Year Standard Warranty

Applications:

  • Oil & gas refineries
  • Chemical processing plants
  • Fuel storage yards
  • Shipping ports and terminals
  • Tank farms and rail depots
  • Hazardous area walkways and driveways

Specifications

Light Type

LED

Hazardous Area Type

Class I, Div 2, Class II, Div 1, Class II, Div 2, Zone 1, Zone 2, Zone 21, Zone 22

Light Power

Up to 150W

Lumen Output

Up to 21,000 Lm

Luminous Efficacy

120–140 Lm/W

Ingress Protection

IP66

Vandal Resistant

IK06, IK07, IK09

Country of Origin

China
