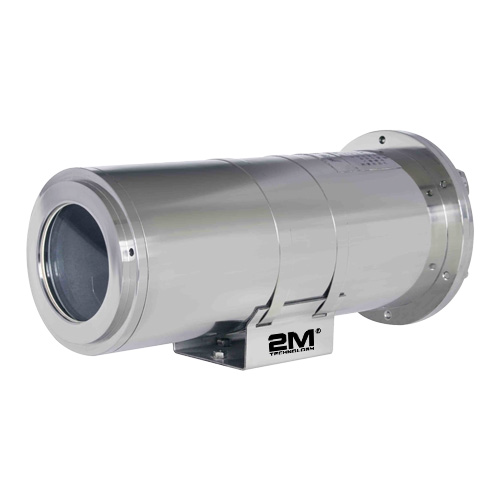

2M Technology 2MEXH-3616 Small Explosion-proof Camera Housing

  • IP68 ingress protection
  • Operating temperature range from -25°C to 60°C (-13°F to 140°F)
  • Ex d IIB T6 Gb explosion-proof marking
  • Available in either AISI 304 or 316L stainless steel construction
  • Brand New Product with 1 Year Warranty
  • Free Technical Support on Products bought from 2M Technology

Product Documents

The 2MEXH-3616 is an explosive proof IP camera with non-condensing 5 % to 95 % Humidity. Its dimensions are 365.5 mm × 163 mm × 169.5 mm (14.39 in × 6.42 in × 6.67 in) and internal usable size 260 mm × 80 mm × 80 mm (10.24 in × 3.15 in ×3.15 in). This camera can be used in a hazardous potentially explosive environment with Operating temperature range from -25°C to 60°C (-13°F to 140°F), this means that the camera system will not cause an explosion, rather than survive an explosion outside the enclosure(NEMA-4X Enclosure rating). This camera is designed to prevent ignition(ingress protection IP-66) of the surrounding gases or dust. Features: IP68, NEMA-6P Enclosure rating Operating temperature range from -25°C to 60°C (-13°F to 140°F) Ex d IIB T6 Gb explosion-proof marking AISI 304/316L stainless steel construction (available)

Features:

  • IP68, NEMA-6P enclosure rating
  • Operating temperature range from -25°C to 60°C (-13°F to 140°F)
  • Ex d IIB T6 Gb explosion-proof marking
  • Available in AISI 304 or 316L stainless steel construction

Available models:

MODELMATERIAL
2MEXH-3616AISI 304 stainless steel
2MEXH-3616-LAISI 316L stainless steel



Weight12.13 lbs
Dimensions14.39 × 6.42 × 6.67 in
Stainless Steel Types

Atmospheric Pressure80 kPa 106 kPa
Operating Temperature-25°C to 60°C (-13°F to 140°F)
Relative Humidity5 % to 95 % non-condensing
Input Power220 V AC, 50 Hz ( optional )
Protection RatingEx d IIB T6 Gb Explosion-proof marking IP68, NEMA-6P enclosure rating
Dimensions (WxHxL)365.5 x 163 x 169.5 (mm)/14.39″ x 6.42″ x 6.67″ (in.)
Internal

Dimensions (WxHxL)

260 x 80 x 80 (mm)/10.24″ x 3.15″ x 3.15″ (in.)
Window Viewing Area (Ø)Ø 79mm (3.11″ in)
Weight5.5 kg (12.13 lb )
MaterialAvailable in AISI 304 or AISI 316L stainless steel
Heater ControlOn at 1°C ± 3°C (34°F ± 5°F) (optional)
