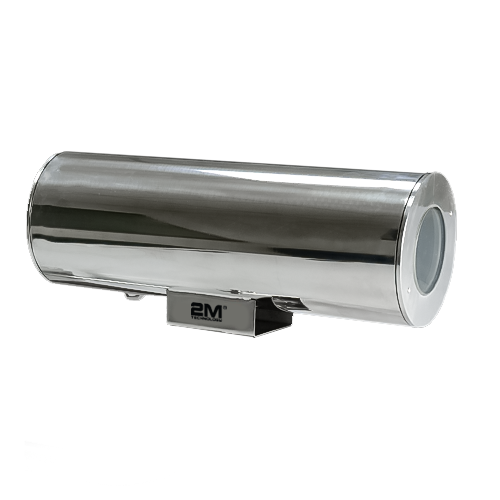

2M Technology 2MEXH-4016-L Explosion Proof Integrated Camera – 316L Stainless Steel
- IP68, NEMA-4X Enclosure rating
- Operating temperature range from -40°C to 60°C (-40°F to 140°F)
- Ex d IIC T6 Gb explosion-proof marking
Product Documents
Downloads
Availability:
Out of stock
2M Technology 2MEXH-4016-L 316L Stainless Steel Explosion Proof Integrated Camera
- IP68, NEMA-4X Enclosure rating
- Operating temperature range from -40°C to 60°C (-40°F to 140°F)
- Ex d IIC T6 Gb explosion-proof marking
- AISI 304/316L stainless steel construction (available) Optional:
- Wiper and sun shield
| Model Material | |
| 2MEXH-4016 | AISI 304 stainless steel |
| 2MEXH-4016-L | AISI 316L stainless steel |
Matching Accessories :
- 2MEXB-2915: Explosion Proof Wall Housing Bracket ( 304 )
- 2MEXPTB-3623: Heavy Explosion Proof Pan and Tilt Unit ( 304 )
- 2MEXB-2915-L: Explosion Proof Wall Housing Bracket ( 316L )
- 2MEXPTB-3623-L: Heavy Explosion Proof Pan and Tilt Unit ( 316L )
| Stainless Steel Types | |
|---|---|
| Country of Origin | China |
| Manufacturers Standard | En60079-0:2009, En 60079-1:2007, En60079-31:2009 GB3836.1–2000, GB383.2–2000, Gb12476.1-2000 |
| Configuration Mode | Front and rear caps with explosion-proof thread |
| Explosion-proof Mark | II2G Ex d IIC T6, Ta: -40°C ≤Ta≤+60° ; II2D Ex IIIC T80°C Db. |
| IP Ratio | IP-68 |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Cable Entries | 2XG1/2’’ Explosion-proof cable entries, Dia. of inner hole Ø |
| Outside Dimension ( W x H x L ) | ( 450 x 160 x 200 mm ) (15.94 x 6.29 x 7.87 In ) |
| wiper | Outside |
| Weight | 8 Kg ( 18 lb )
. |
| Material | .AISI 304 stainless steel 2MEXH-4016
AISI 316L stainless steel 2MEXH-4016-L |
| Suitable installation dimension | Less than Ø 10.5 cm x 33 cm |
| Voltage ( Optional ) | ( AC110V to AC 240V, 50/60 Hz ) ( AC24V, 50/60 Hz ) |
| Current ( Optional ) | ≤500mA |
