2MMHCPZ HD wireless Manhole Camera with Touch Screen Tablet

REQUEST QUOTE (for best price)
  • 20x optical zoom camera with motorized tilt motion
  • 2x high brightness LEDs for long distances and 2x for close distance viewing
  • 10” touch screen display controller

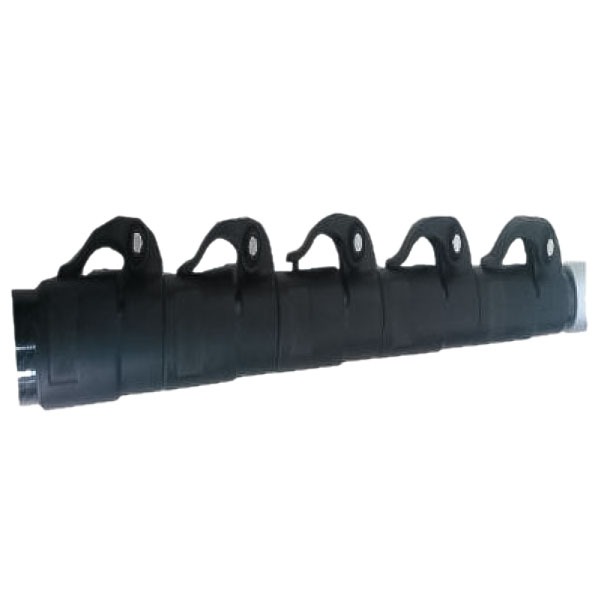

  • 7m/23′ ft. telescopic rod
  • 32GB memory card

Note: This is a special order item. Allow 4-6 weeks for delivery.

Product Documents

Downloads

2MMHCPZ – HD Wireless Manhole Camera With Touch Screen Tablet

  • 20x optical zoom camera with motorized tilt motion
  • 2x high brightness LEDs for long distances and 2x for close distance viewing
  • 10” touch screen display controller
  • 7m/23′ ft. telescopic rod
  • 32GB memory card
  • U style probe
  • Built-in laser for distance counter
  • Battery is included

            Note: This is a special order item. Allow 4-6 weeks for delivery.

OTHER SIZES AVAILABLE

2MMHCPZ-23

7m/23′ ft. telescopic pole

2MMHCPZ-39

12m/39.4′ ft. telescopic pole

2MMHCPZ-49

15m/49.2′ ft. telescopic pole



Country of Origin

China

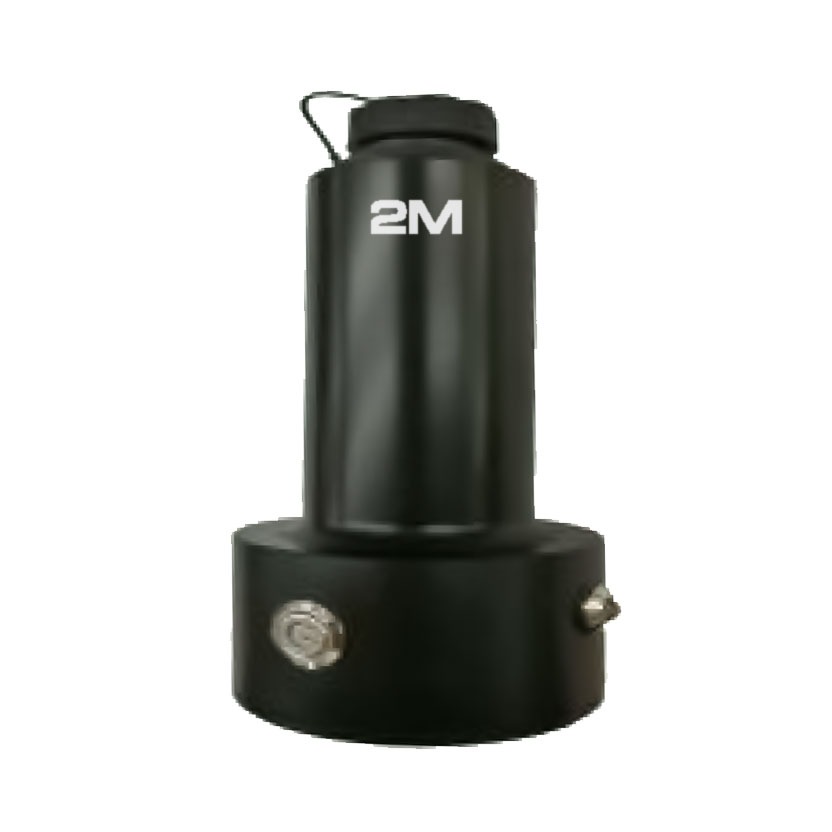

CAMERA
Pipe Diameter 200-2000mm
Weight about 3kg (with no battery)
CCD Type 1/3 inch COMS
Resolution 1280 x 960
Zoom 20x optical zoom
Tilt Motorized – Up: 45°, down: 45°
Illumination 0.05 Lux @ F1.6
  Combined Brightness Main light: 10W x 2 LED; neutral white/warm white; CCT 5000K Auxiliary light: 3W x 2 LED; neutral white/warm white; CCT 3700K
Precision Range 0.05m-70m
Laser Range Mode Phase type
Wireless Transmission Mode 802.11A/N + 2.4G
Operating Temperature -10°C to 60°C
Ingress Protection IP68
Anti-crash Telescoping U-shaped probe Adjustable Height (range: 70cm to 120cm)
Battery Capacity 2600MA, works continuously for 2.5 hours

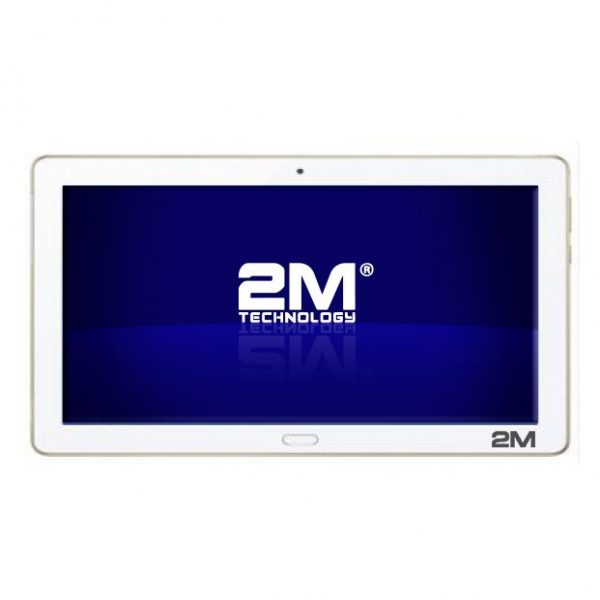

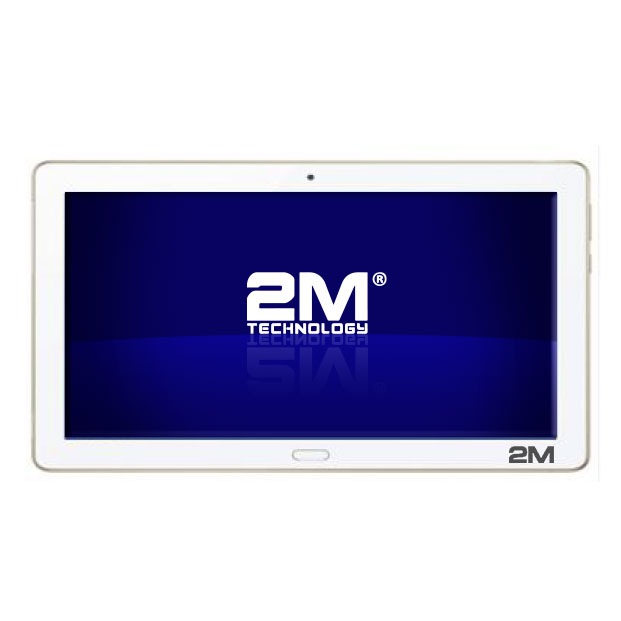

TABLET
Screen Size 10" inches, touch screen
RAM 4GB
ROM 64GB, supports SD (TF card), extend storage 256GB
Battery Capacity 7000mAh
TELESCOPE
Retracted Length 1.58cm
Number of Knobs 6
Weight 2.5 kg
WIRELESS REPEATER
Device Hub Wireless, provides
Output DC5V 1A

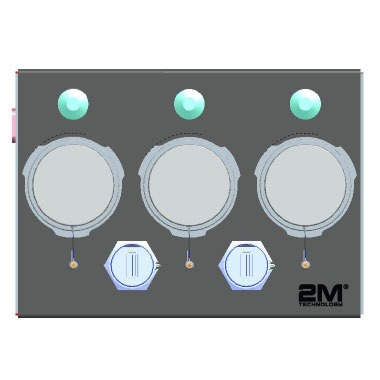

POWER
Charge Connector 3x 16.8V 1A
USB 2x 5V 2.1A
Dimensions 203 x 145 x 76 (mm)
Material Aluminum
OTHER SIZES AVAILABLE
2MMHCPZ-23 7m/23' ft. telescopic pole
2MMHCPZ-39 12m/39.4' ft. telescopic pole
2MMHCPZ-49 15m/49.2' ft. telescopic pole
