Wing Turnstiles

Our wing turnstiles feature a unique wing-shaped design that not only adds a touch of modern elegance to any space but also serves as an effective barrier against unauthorized access. These fastlane optical turnstiles offer a seamless and secure entry experience, making them the ideal choice for those seeking a perfect blend of aesthetics and advanced access control. If you prefer a full-glass barrier panel over wing flaps, compare our glass swing gate turnstiles for lobby and reception entrances.

All Products

What Is a Wing Turnstile?

A wing turnstile (also known as an optical flap turnstile or speed gate) is a modern access control solution that uses retractable or swinging glass barriers to regulate pedestrian entry. Unlike older mechanical gates, these turnstiles rely on advanced infrared sensors to track movement, detect tailgating, and ensure only one authorized person passes at a time. They are widely favored in corporate lobbies, high-end gyms, and government buildings because of their sleek aesthetics, fast throughput, and ADA compliance. The transparent glass “wings” can easily be configured in wider lanes to accommodate wheelchairs or deliveries, making them incredibly versatile for any high-traffic, design-conscious environment.

Wing Turnstile Comparison — 2M Technology Models

Model Authentication Motor Options Traffic Rate Best Application
2MWT-1 Face recognition + card + fingerprint Brush, Brushless 35 persons/min Airports & Large Corporate Lobbies
2MWT-2 Face recognition + card + fingerprint Brush, Brushless 35 persons/min Premium Office Buildings
2MWT-5 Face recognition + card + fingerprint Brush, Brushless 35 persons/min High-Volume Transit & Hubs
2MWT-6 Face recognition + card + fingerprint Brush, Brushless 35 persons/min Commercial Banks & Secure Lobbies

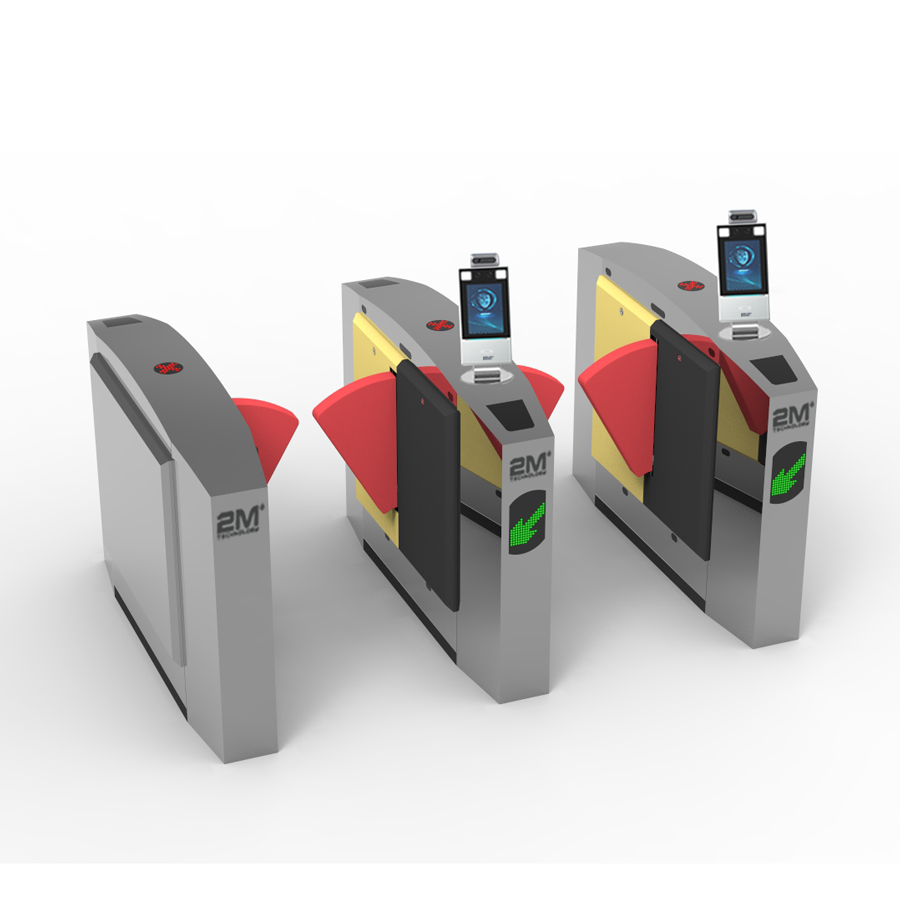

2MWT-9 Face recognition + card + fingerprint Brush, Brushless 35 persons/min Education Campuses & Commercial Offices

Wing Turnstile vs. Other Turnstile Types

  • Wing turnstile vs. full-height turnstile — Wing turnstiles allow tailgating by a person who crouches under the barrier panels. Full-height turnstiles prevent this completely — used where absolute access control is required (prisons, high-security facilities). Wing turnstiles are appropriate where some human supervision exists.
  • Wing turnstile vs. tripod turnstile — Wing barriers open fully for ADA/wheelchair access and allow faster throughput in premium environments. Tripod turnstiles are more cost-effective and more durable in industrial settings.
  • Wing turnstile vs. lane drop-arm turnstile — While both wing and lane drop-arm models rely on advanced optical sensor technology, wing turnstiles offer a much stronger physical barrier. Drop-arm turnstiles leave open space underneath the single horizontal bar, creating a vulnerability where an intruder might attempt to crawl through. The flaps on wing turnstiles extend much closer to the ground to completely block the width of the lane and eliminate those gaps.

Installation and Integration

All 2M Technology wing turnstile models connect to standard Wiegand and OSDP access control panels. Each wing turnstile ships with mounting hardware, power supply, and API documentation for integration with HR, visitor management, and time-attendance systems. Field installation takes 2–4 hours per lane. See the Security Industry Association (SIA) for access control integration standards.

2M Technology pairs wing turnstile gates with boom gate barriers for vehicle access and integrates with enterprise access control systems — contact us for a site plan and quote.

Get a Quote for Wing Turnstiles in DFW

2M Technology designs, supplies, and installs access control wing turnstile systems for corporate campuses, industrial facilities, schools, and event venues across Dallas-Fort Worth and Texas. Contact us to request a free quote tailored to your lane count, installation type, and credential system options.
